Jonard - WB20M - Wire Wrapping Bit, 20 Awg
Part number:
WB20M
Price:

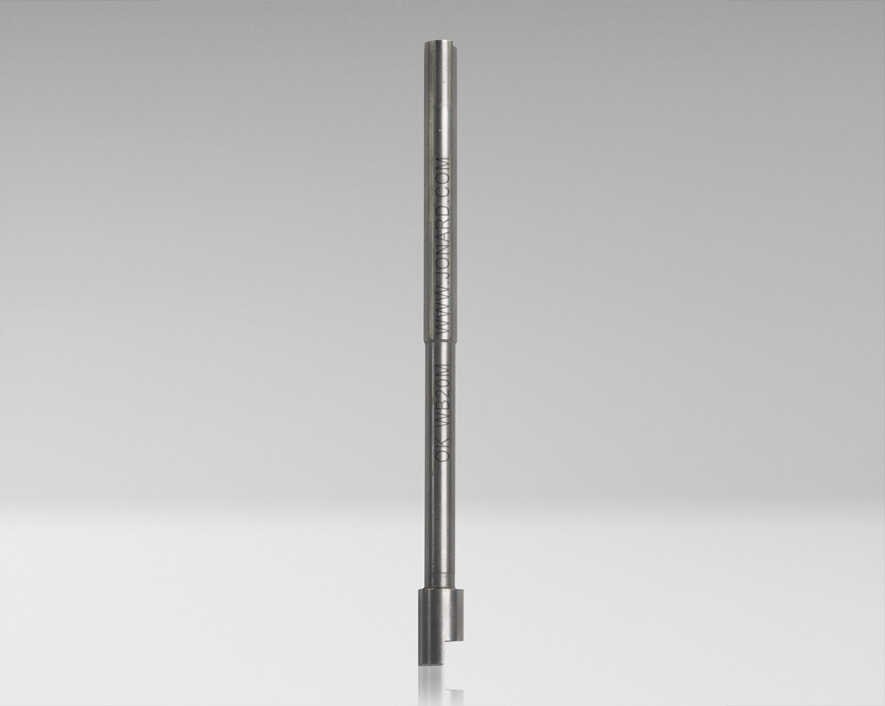

3 inch Wire Wrapping Bit. Fully compatible with any make or model wire wrapping tool. Gauge Size: 20 AWG. Wrap Type: Modified. Max Insulation Diameter inches: 0.059. Minimum Terminal Diagonal Inches: 0.042. Max Terminal Diagonal Inches: 0.073. Terminal Hole Depth Inches: 1. Effective Radius Inches: 0.15. Terminal Hole Diameter Inches: 0.075
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 20 AWG (0.8 mm) |
| Maximum Insulation Diameter | 0.059" (1.5 mm) |
| Minimum Terminal Diagonal | 0.042" (1.07 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Dia. | 0.075" (1.9 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.15" (3.81 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Features | Provides 1.5 to 2 turns of insulation |
| Sleeve Part No. | P194LN (sold separately) |
| Weight | 0 lb (0 g) |
