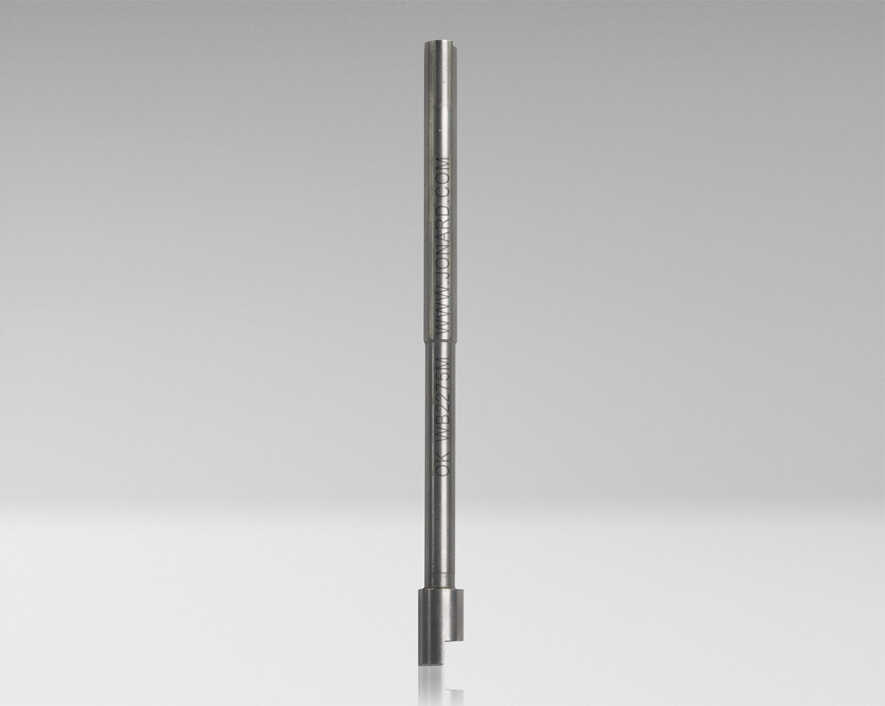

Jonard - WB2426M - Wire Wrapping Bit, 24-26 Awg
Part number:
WB2426M
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 24-26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
- Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
Compatible Wrap Sleeve Part #: P2224 and P2224INS
| Sleeve Part No. | P2224 and P2224INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 24-26 AWG (0.50 mm-0.40 mm) |
| Maximum Insulation Diameter | 0.046" (1.17 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Effective Radius | 0.118" (2.99 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 3(7.88924cm) |
| Weight | 0.02 lb (8.172 g) |
| UPC # | 811490013216 |
