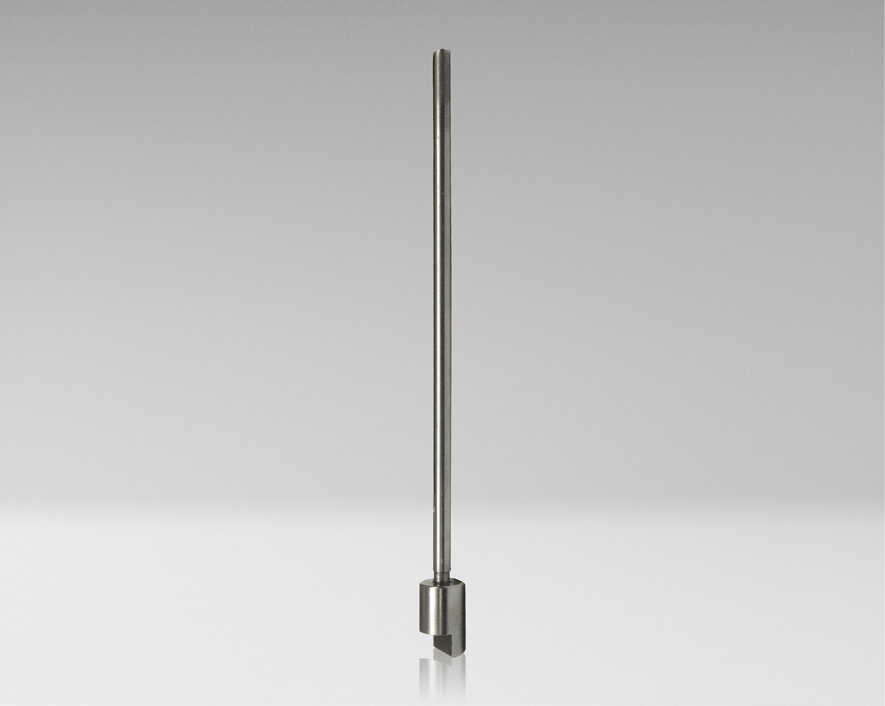

Jonard - WB26SM - Wire Wrapping Bit, 26 Awg
Part number:
WB26SM
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
- Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins
Compatible Wrap Sleeve Part #: P26LN
| Sleeve Part No. | P26LN (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 26 AWG (0.40 mm) |
| Maximum Insulation Diameter | 0.031" (0.79 mm) |
| Minimum Terminal Diagonal | 0.023" (0.58 mm) |
| Maximum Terminal Diagonal | 0.038" (0.96 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Effective Radius | 0.075" (1.9 mm) |
| Terminal Hole Diameter | 0.040" (1.02 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Length | 3(7.88924cm) |
| Weight | 0.01 lb (3.632 g) |
| UPC # | 811490013056 |
