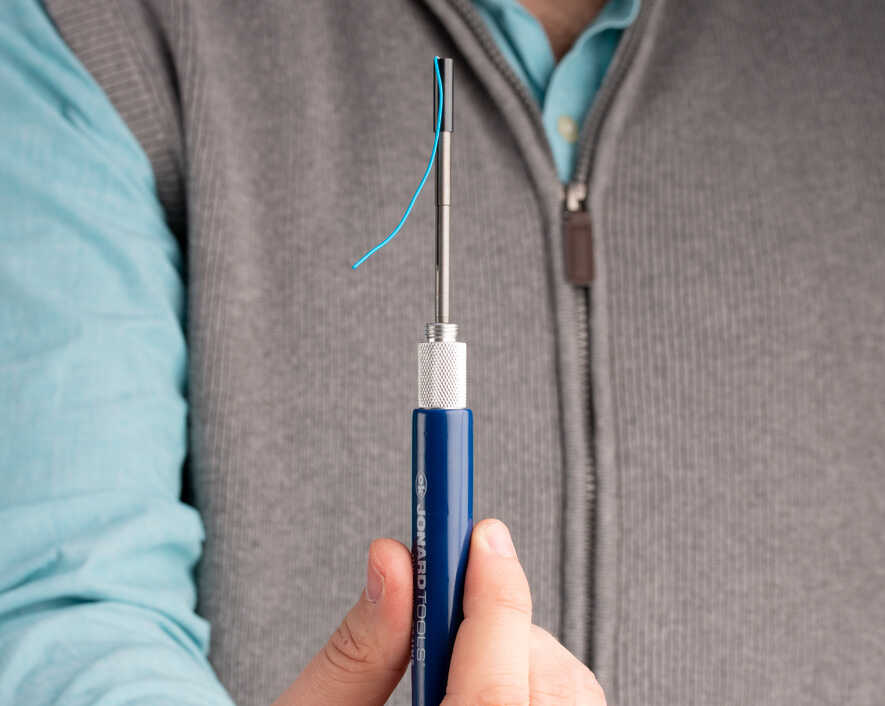

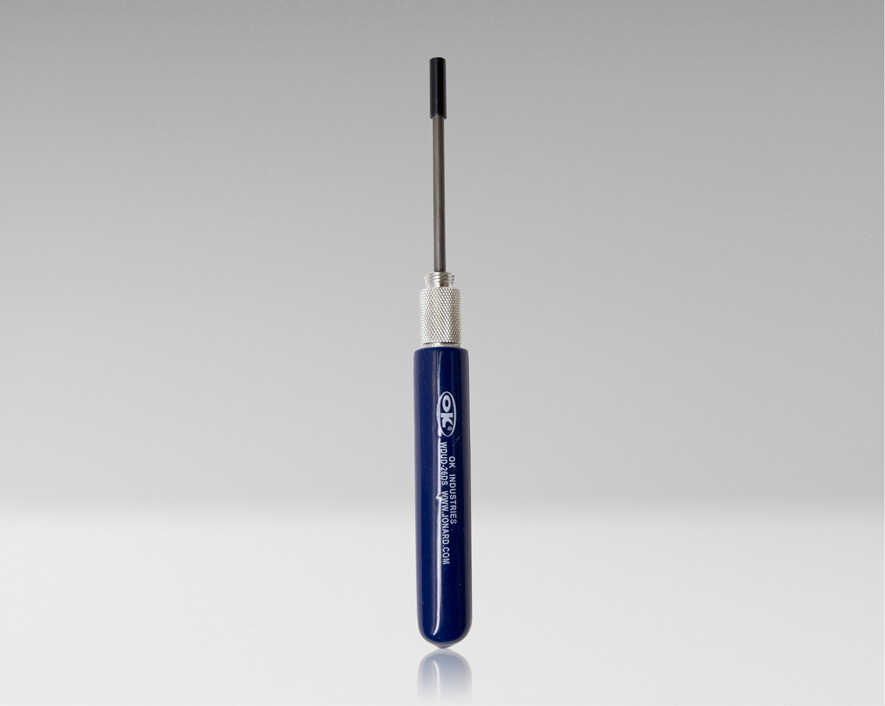

Jonard Tools - WDUD-26DS - DSL Wrap And Unwrap Tool
Part number:
WDUD-26DS
Price:

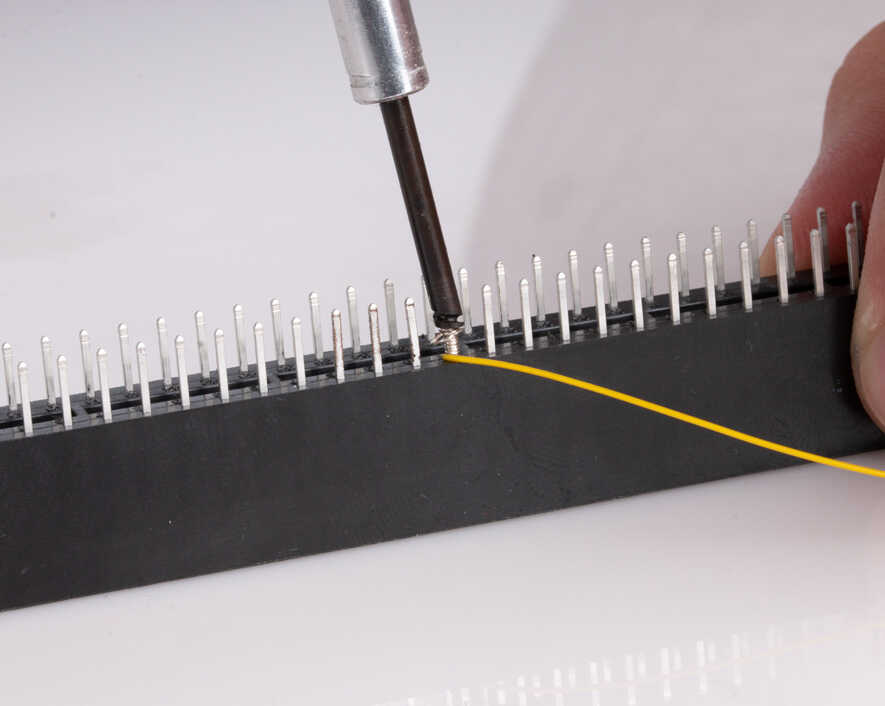

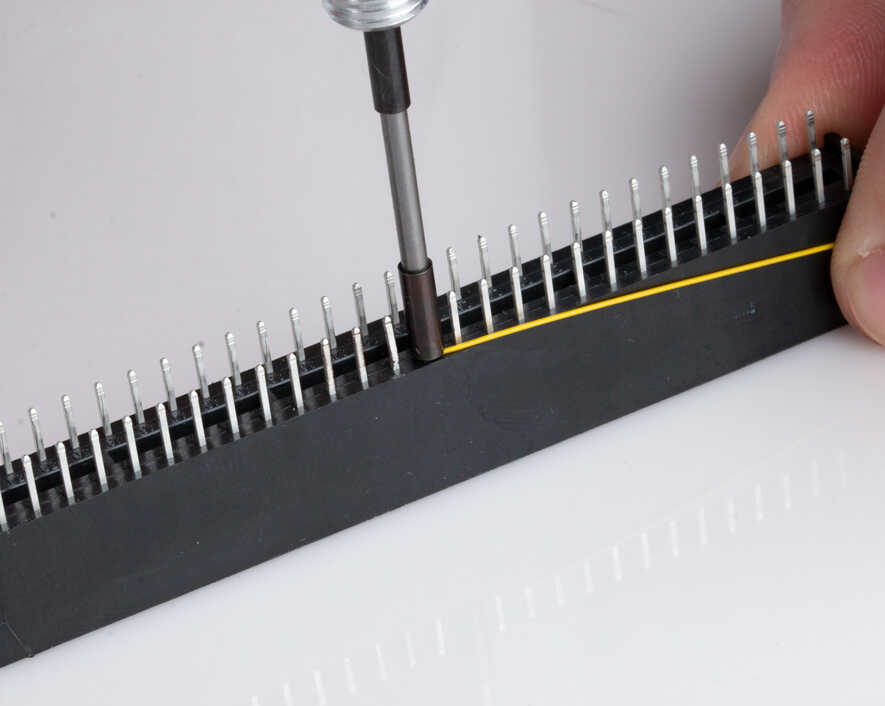

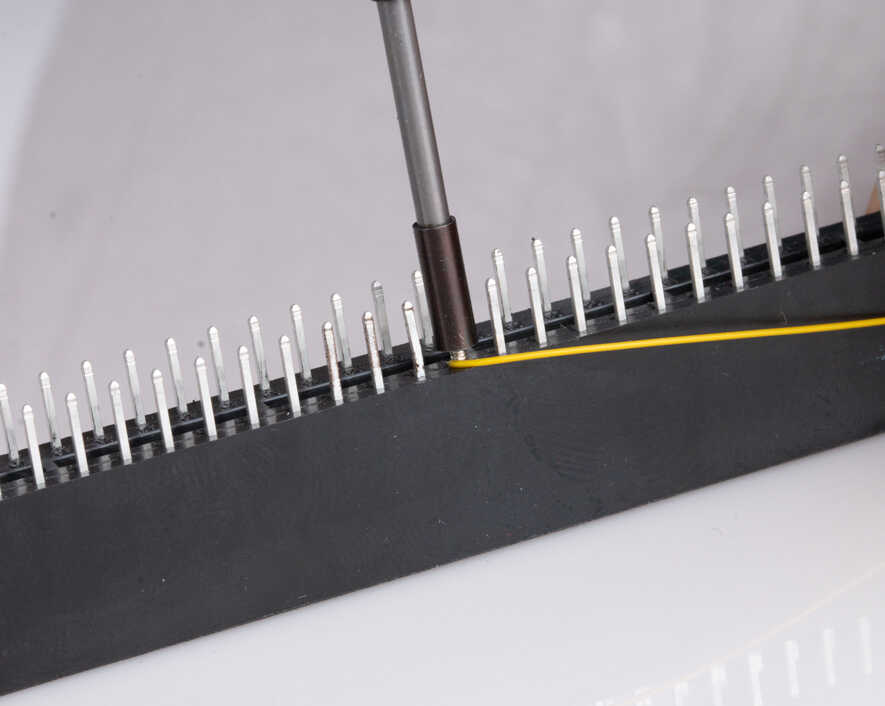

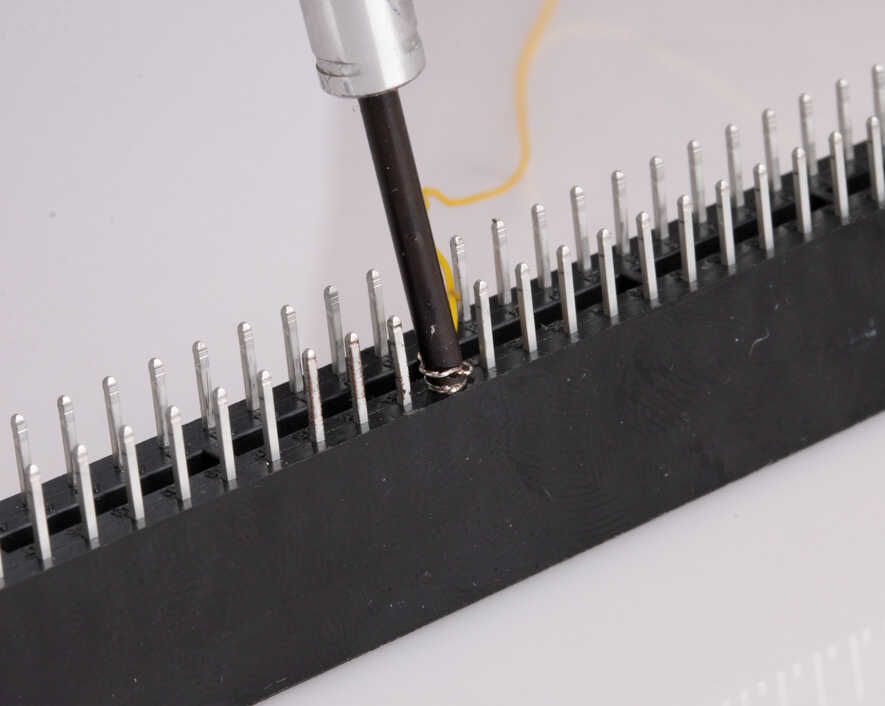

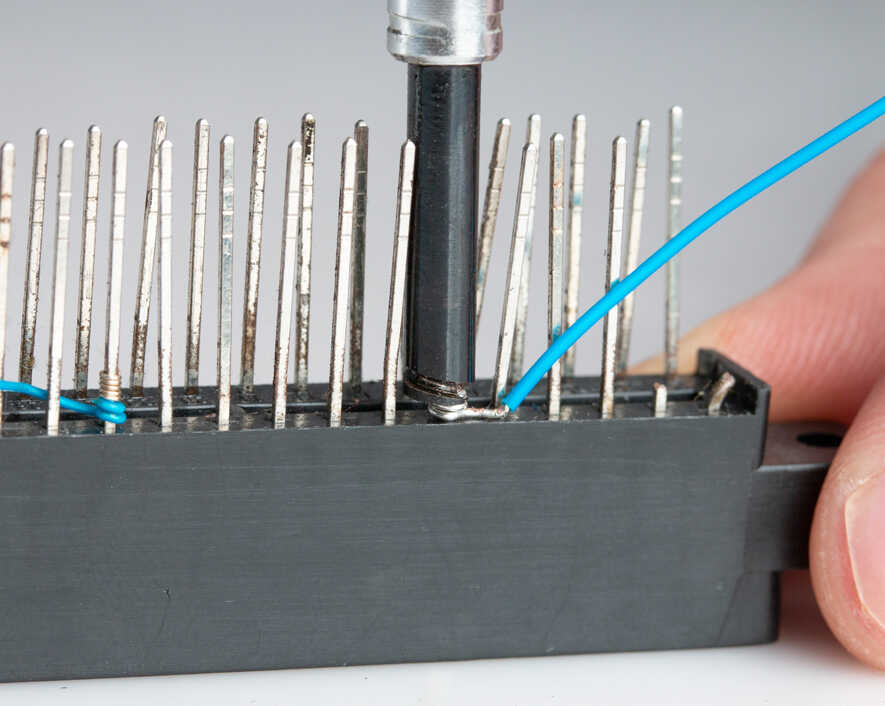

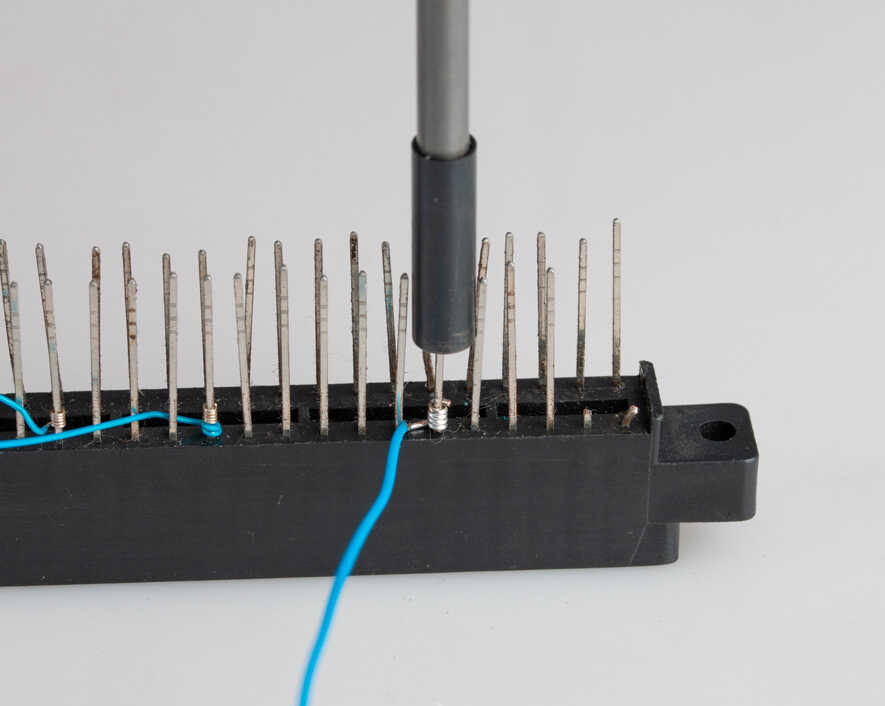

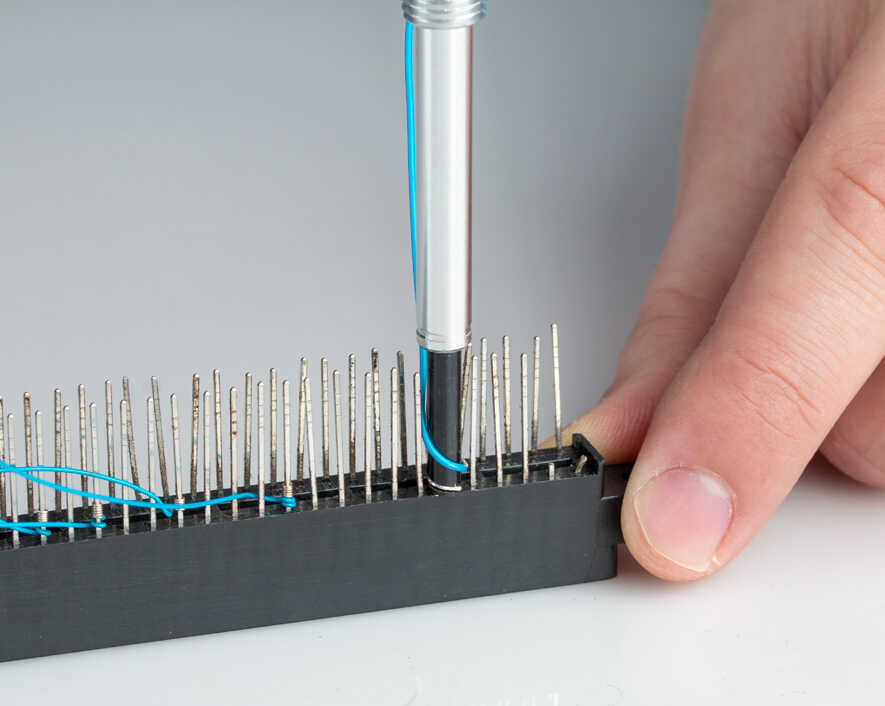

Designed to wrap or unwrap DSL (Digital Subscriber Line) connections, this hand wrap tool is perfect for occasional wire wraps or where power wire-wrapping tools are not practical. This hand wrap tool also features the following:
- Switch from wrapping to unwrapping quickly by changing the cap from one end to the other
- Insulated handle for dielectric protection
- Wraps 26 AWG (0.40 mm) wire and unwraps 20-26 AWG (0.81 mm-0.40 mm) wire
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 26 AWG (0.40 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 1" (25.40 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.81 mm-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Insulated |
| Length | 7(17.94002cm) |
| Weight | 0.09 lb (42.676 g) |
| UPC # | 811490013032 |
