Jonard - WFM-100 - Wireless Fiber Inspection Microscope with UPC Adapters

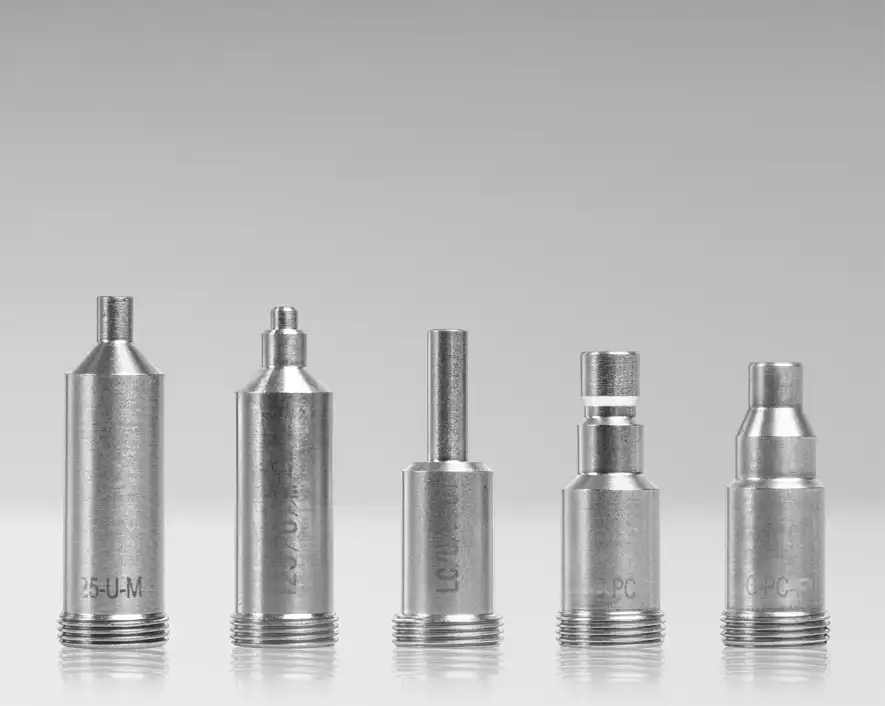

• Inspects male and female PC/UPC SC, ST, FC, and LC fiber connectors and ports using the 5 included adapters
• One Press auto analyze function automatically generates and records a Pass/Fail report
• 200x magnification and high resolution camera provide a crystal clear image directly on your smart device
• App is free to download and is compatible with both Android and iOS
• Can be used via USB to connect to our OTDR-1500 or other device

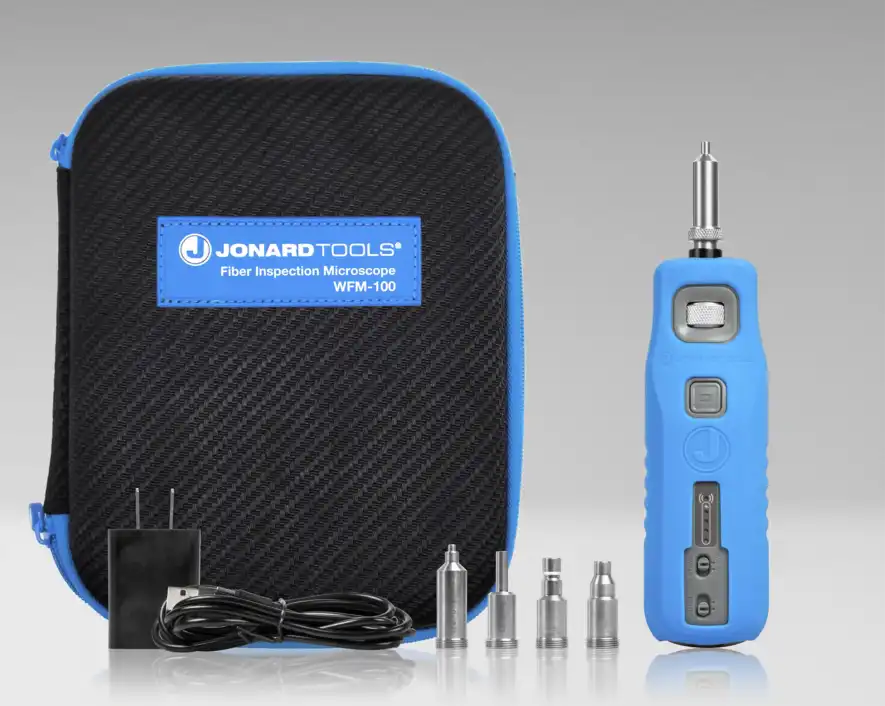

• Includes: Wireless Fiber Scope, 2.5 mm FC/SC/ST (PC/UPC) Male Adapter, 2.5 mm FC/SC/ST (PC/UPC) Female Adapter, 1.25 mm LC (PC/UPC) Male Adapter, 1.25 mm LC (PC/UPC) Female Adapter, USB-C cable, Charger, Instruction Manual, and Carrying Case
| Lens Magnification | 200X |
| Lens Resolution | 0.75 µm |
| Camera Resolution | 1280 x 1024 |
| Focus Range | 4 mm |
| Wifi Range | 100 m |
| Battery Capacity | 3000 mAh |
| Battery Life | 3 hr |
| Dimensions | 9 in x 7.25 in x 3.3 in (22.86 cm x 18.42 cm x 8.38 cm) |
| Weight | 1.5 lb (680.092 g) |

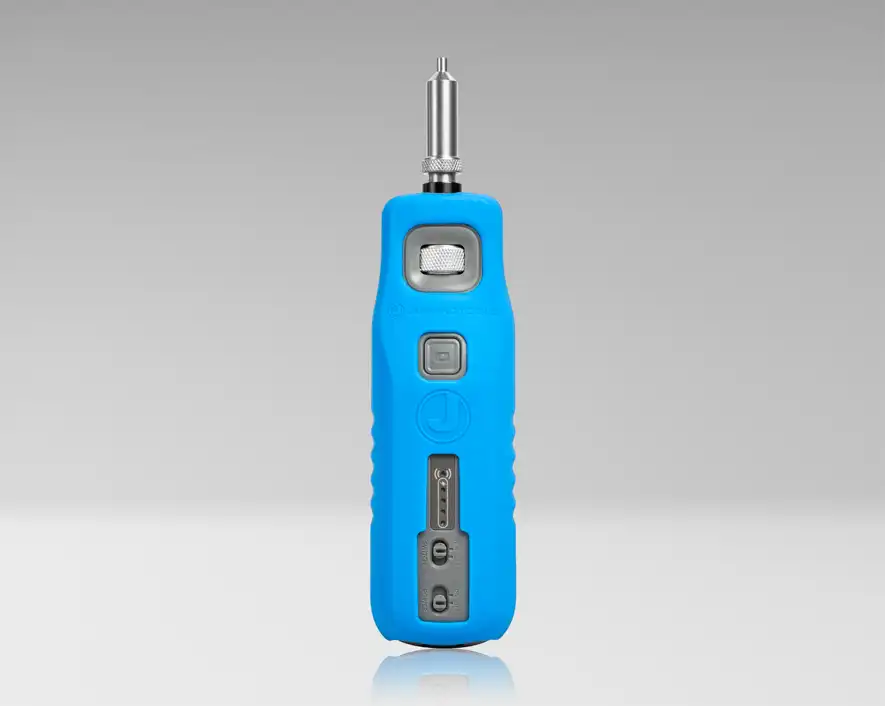

This portable Wi-Fi end-face probe provides clear, high-resolution images of fibre optic connector ferrules in real time on a smartphone or tablet. It also features an automatic analysis function that generates and records a Pass/Fail report with the press of a button.
