This tool kit is designed to facilitate the installation and extraction of DIP IC and PLCC chips on circuit boards. All included tools are CMOS safe and include grounding lugs where appropriate.

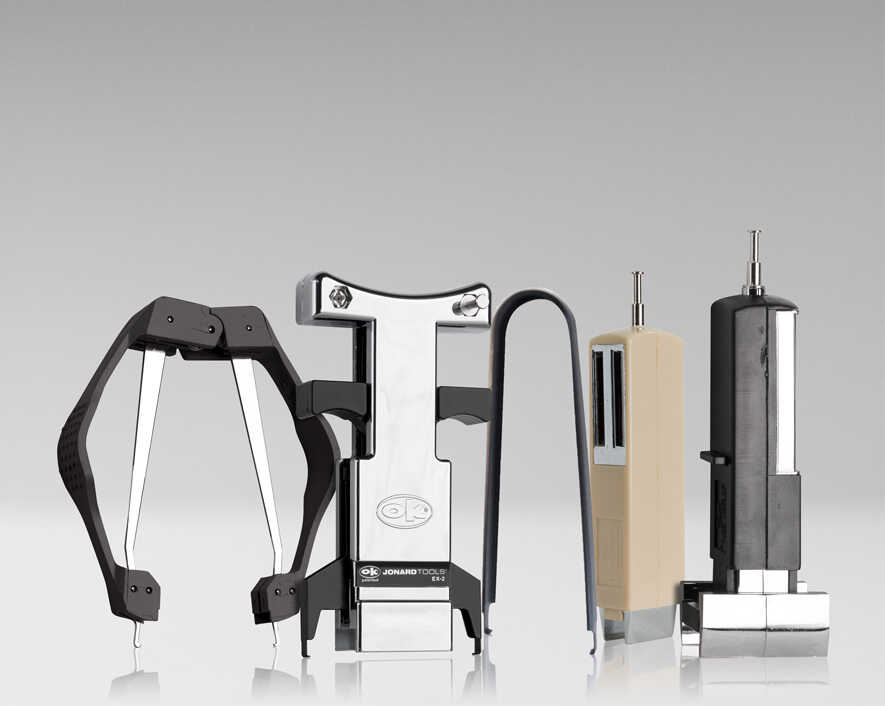

Kit includes one each of the following:

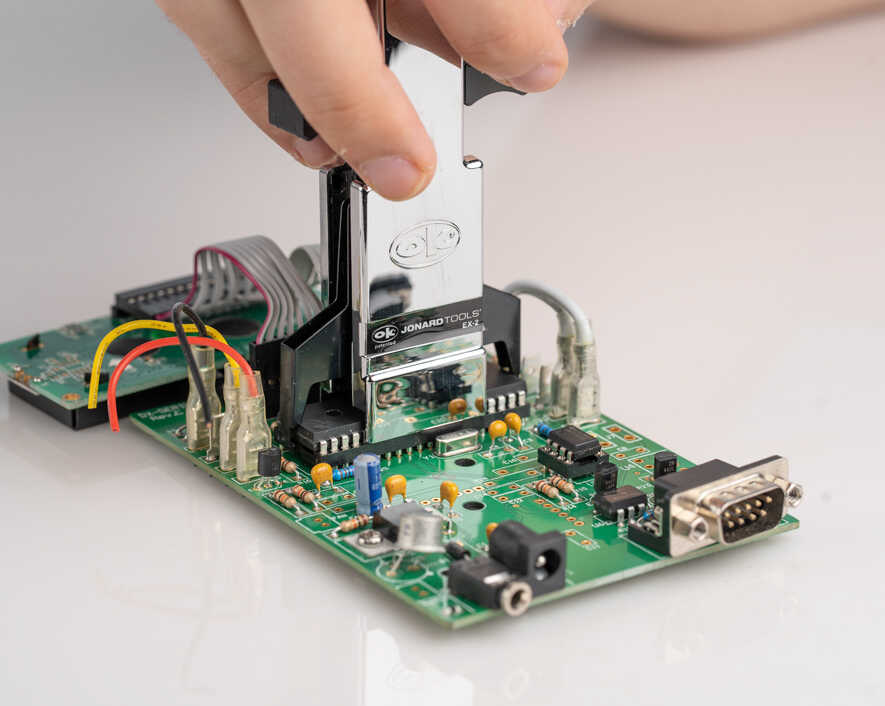

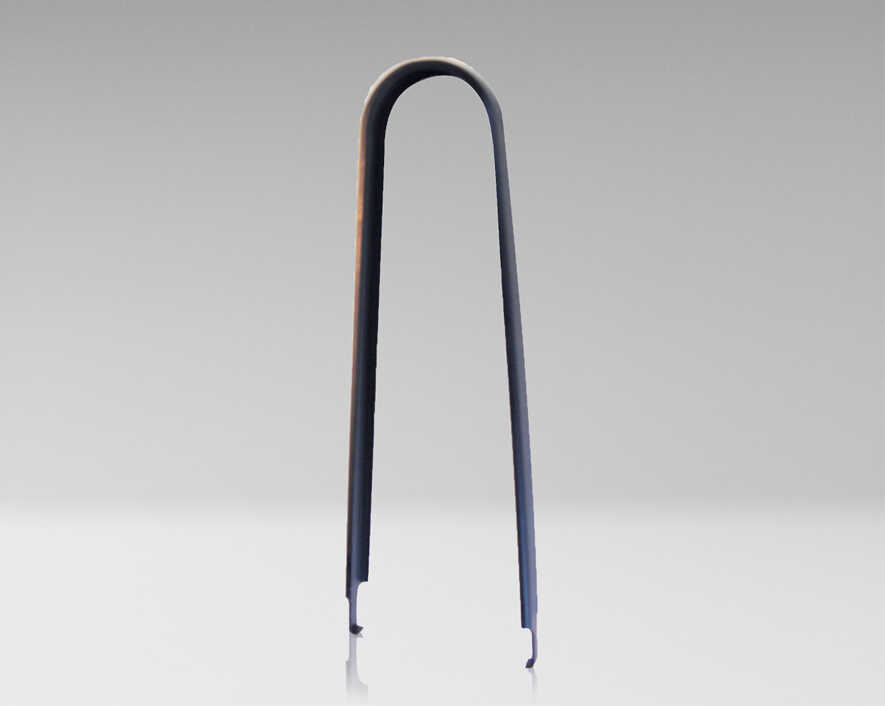

EX-1 DIP IC Extractor (8-24 pins)
EX-2 DIP IC Extractor (24-40 Pins)

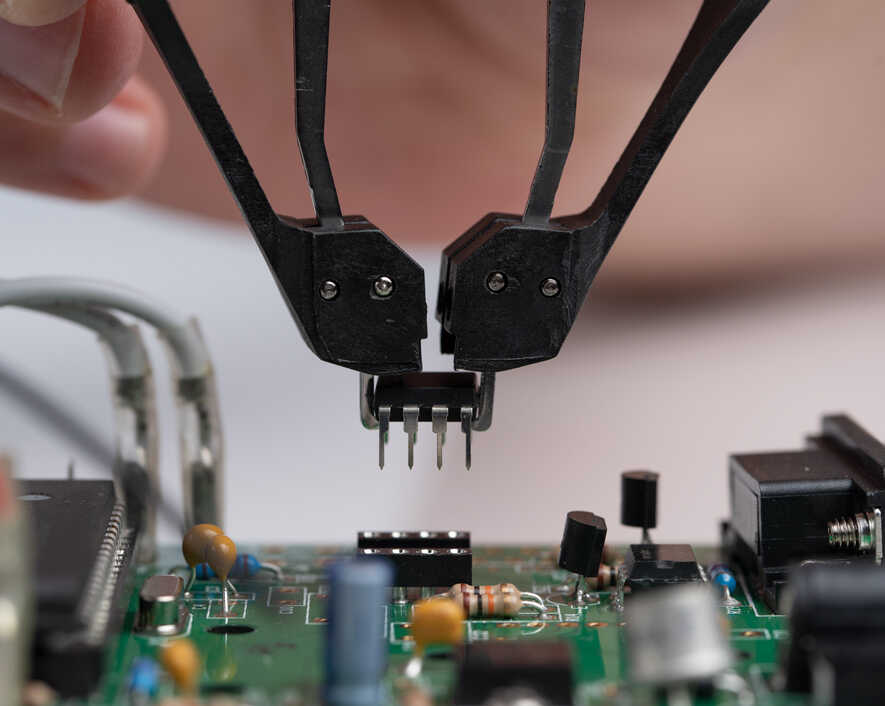

EX-5 PLCC Extractor, ESD Safe

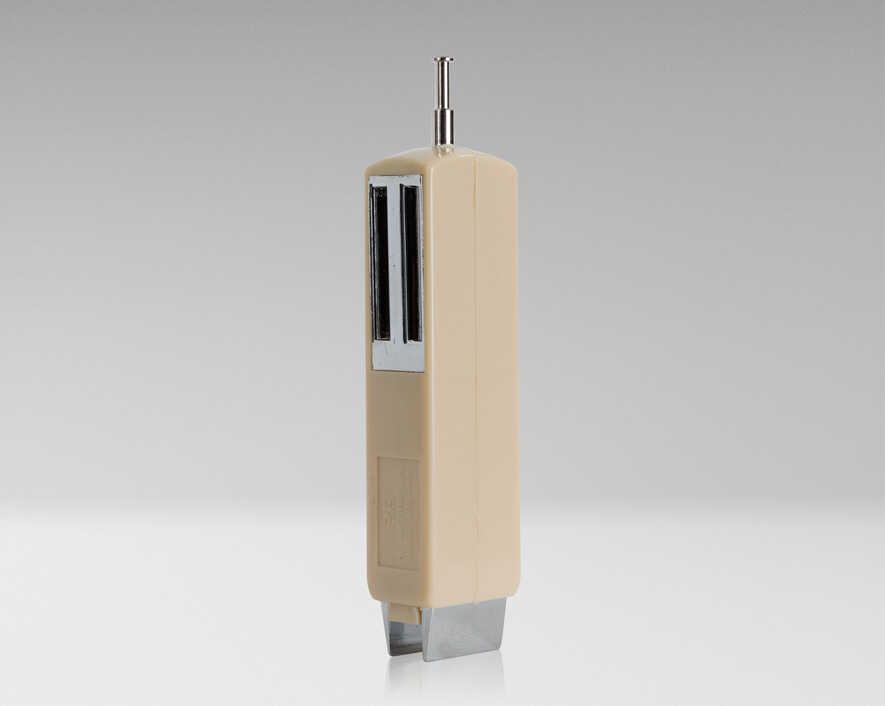

MOS-1416 Insertion Tool (14-16 Pins)

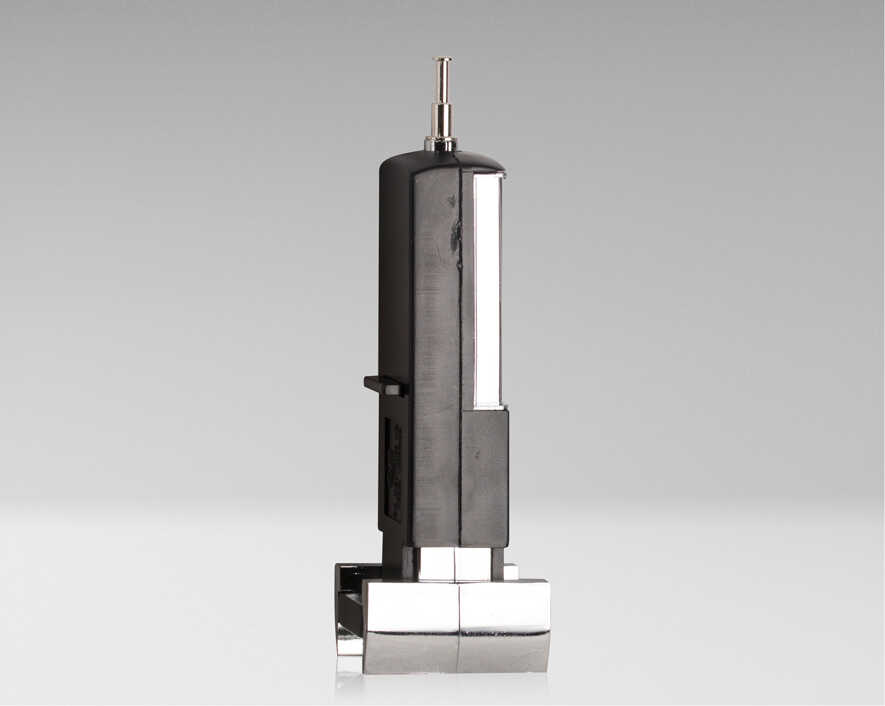

MOS-2428 Insertion Tool (24-28 Pins)
| Application Type | Insertion and Extraction |
|---|---|
| Chip Package Type | DIP IC, PLCC |
| Pin Count for Insertion | 14-16, 24-28 |
| Pin Count for Extraction | 8-24, 24-40 |
| Weight | 0.418 lb |
| UPC # | 811490010284 |
