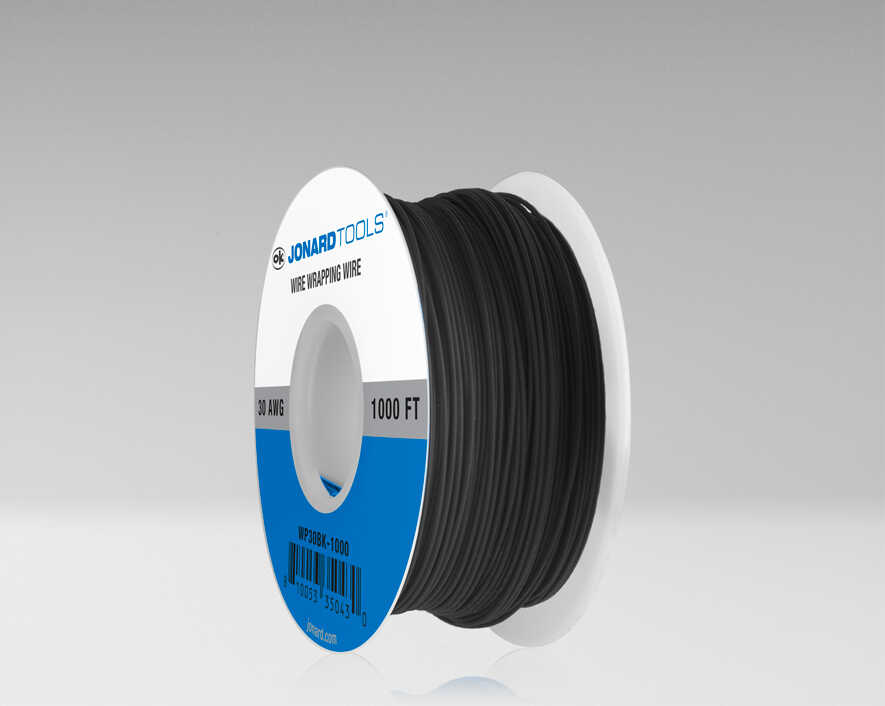

Jonard - WP30BK-1000 - 30 AWG Electrical Hook-Up Wire, Black, 1000 ft
Part number:
WP30BK-1000
Price:

Featuring flexible PVC insulation, this tin-plated single conductor copper wire is perfect for working on breadboards, test jigs, jtag, or other electronics on the fly. This wire also features the following:

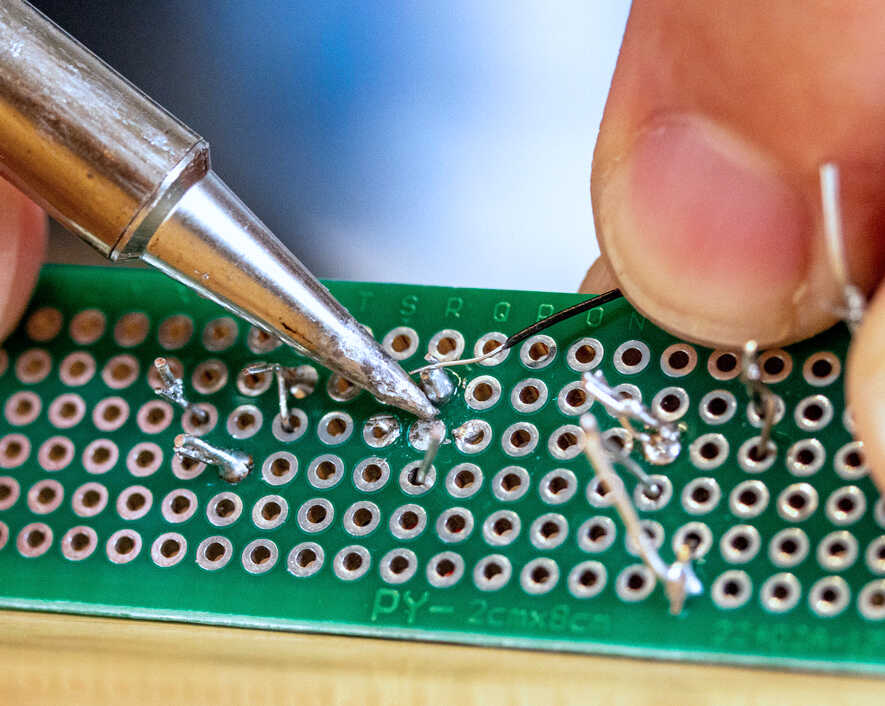

  • Works great for soldering on laptops, motherboards, LCDs, breadboards, PCBs, or other electronic devices
  • Tin-plated copper conductor provides flexibility and corrosion resistance
  • PVC insulation provides temperature resistance up to 176°F (80°C)
ColorBlack
Wire Gauge30 AWG (0.25 mm)
Insulation TypePVC
Insulation Thickness0.005" (0.127 mm)
Overall Diameter0.0197" (0.50 mm)
MaterialTin Plated Copper
VoltageNot Rated
Dimensions2.75 in x 2.75 in x 1.35 in (6.97 cm x 6.97 cm x 3.43 cm)
Weight0.48 lb (217.92 g)
UPC #810053350430
Name
Description
Size
Downloads
File
Datasheet
0.4mb
