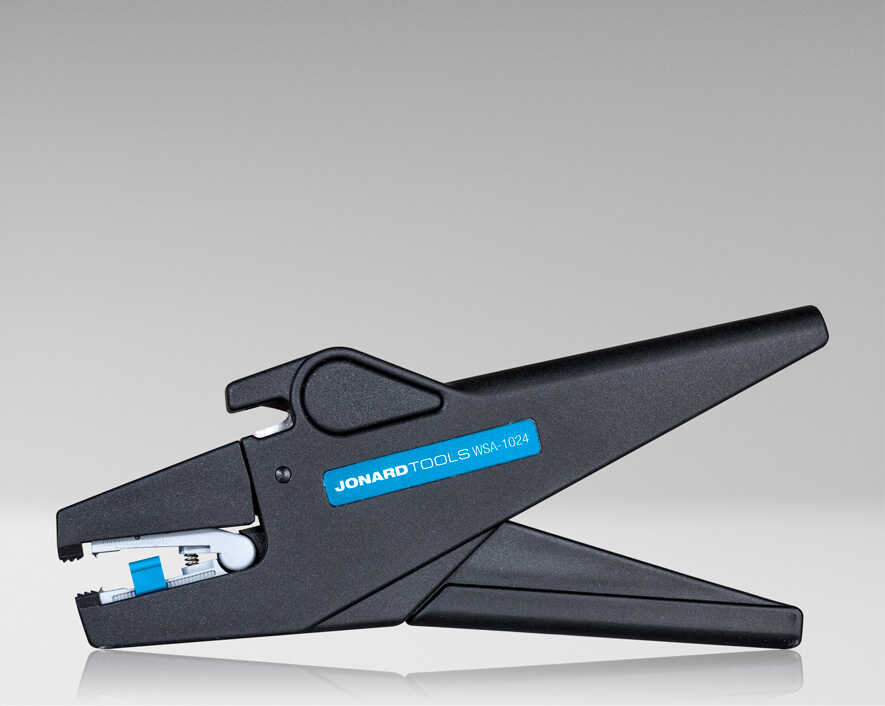

Jonard - WSA-1024 - Automatic Wire Stripper 10-24 Awg
Part number:
WSA-1024
Price:

With its innovative squeeze and strip design, this self-adjusting wire stripper automatically grasps and strips insulation off 10-24 AWG wires. It is perfect for stripping thick or thin wall insulations such as PVC or other insulations off 10-24 AWG wires at specific strip lengths without having to make tedious adjustments. This self-adjusting wire stripper features the following:

  • Patented stripping mechanism strips smoothly and efficiently every time
  • Strips insulation off single and multi-stranded wires and can strip multiple wires of the same gauge simultaneously
  • Strip length can be adjusted manually up to 15 mm (0.591")

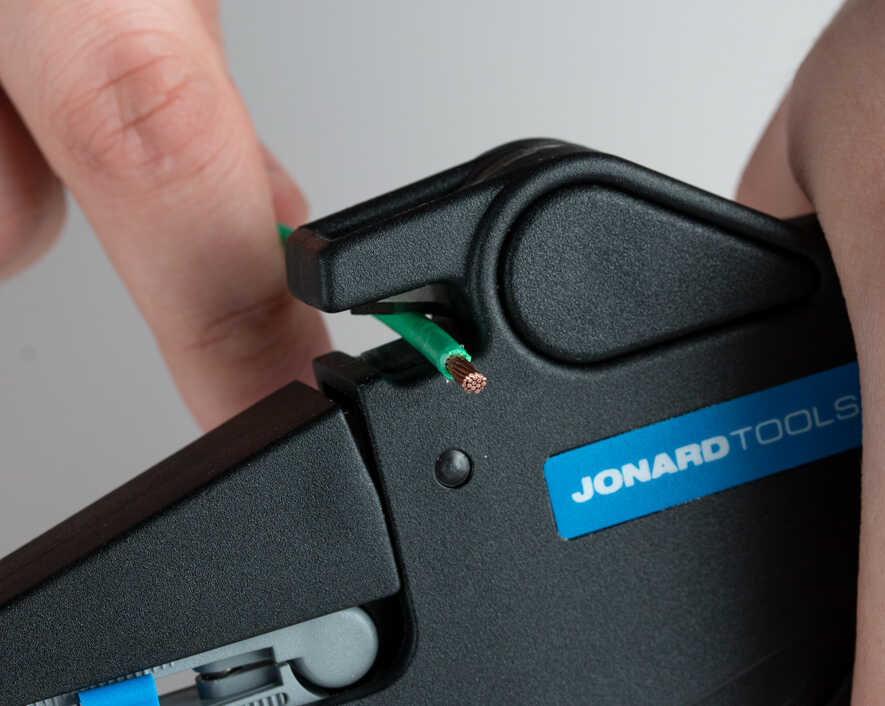

  • Wire cutter cuts wires as large as 10 AWG cleanly and easily
  • Ergonomically designed to minimize hand fatigue during prolonged use
  • High-quality laminated carbon steel stripping blades last over 30,000 strips and the tool has a life expectancy of over 150,000 uses
Wire Gauge10-24 AWG (2.6 mm-0.51 mm)
Maximum Strip Length0.591" (15 mm)
Blade MaterialLaminated Carbon Steel
Overall Length8" (203 mm)
Product MaterialLaminated Carbon Steel
Weight0.44 lb (199.76 g)
UPC #811490017542
