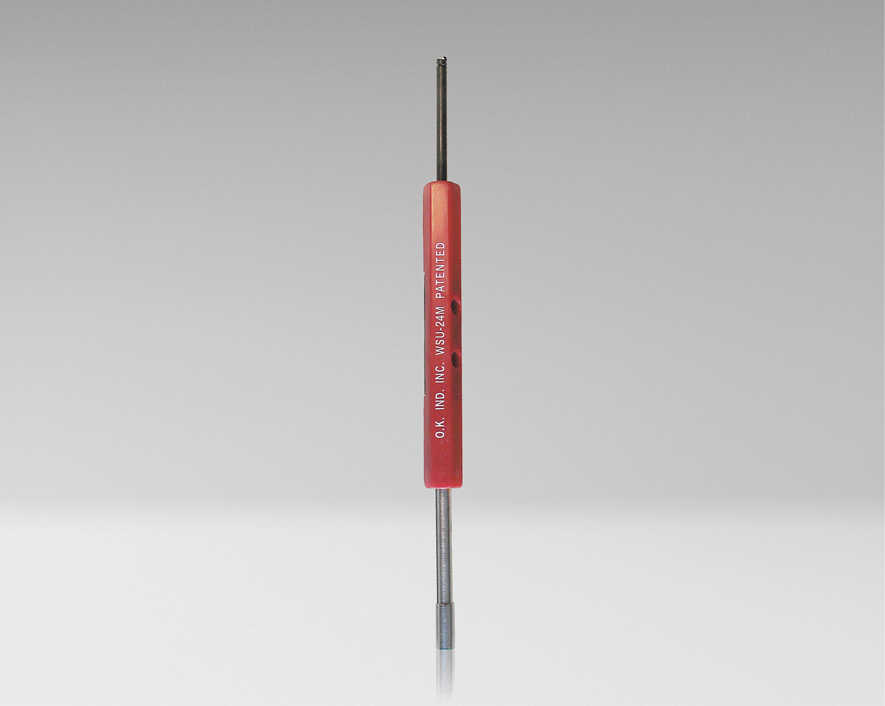

Jonard - WSU-24M - Wrap-Strip-Unwrap Tool, 24 Awg
Part number:
WSU-24M
Price:

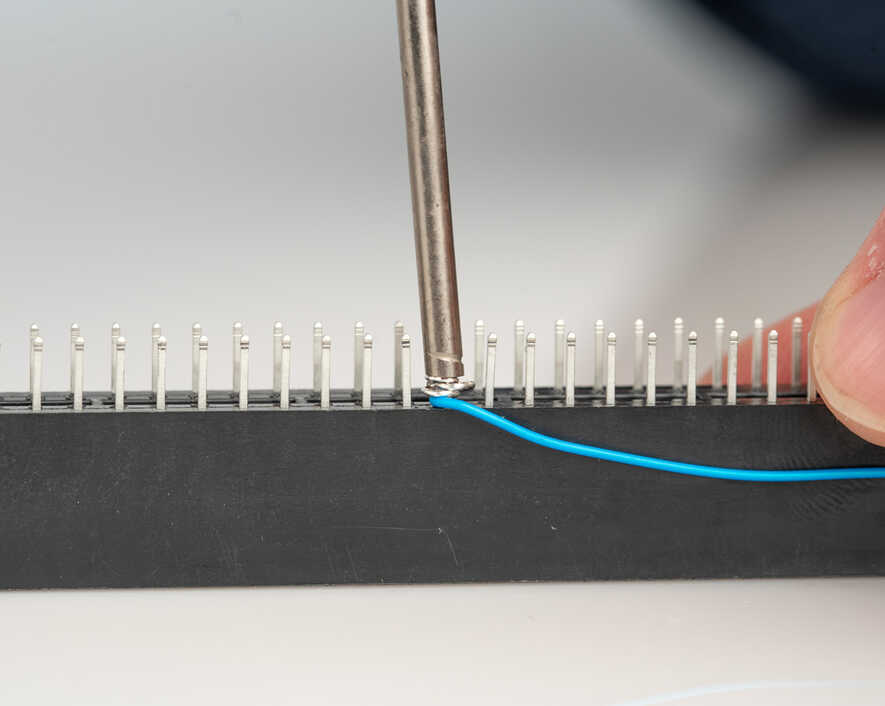

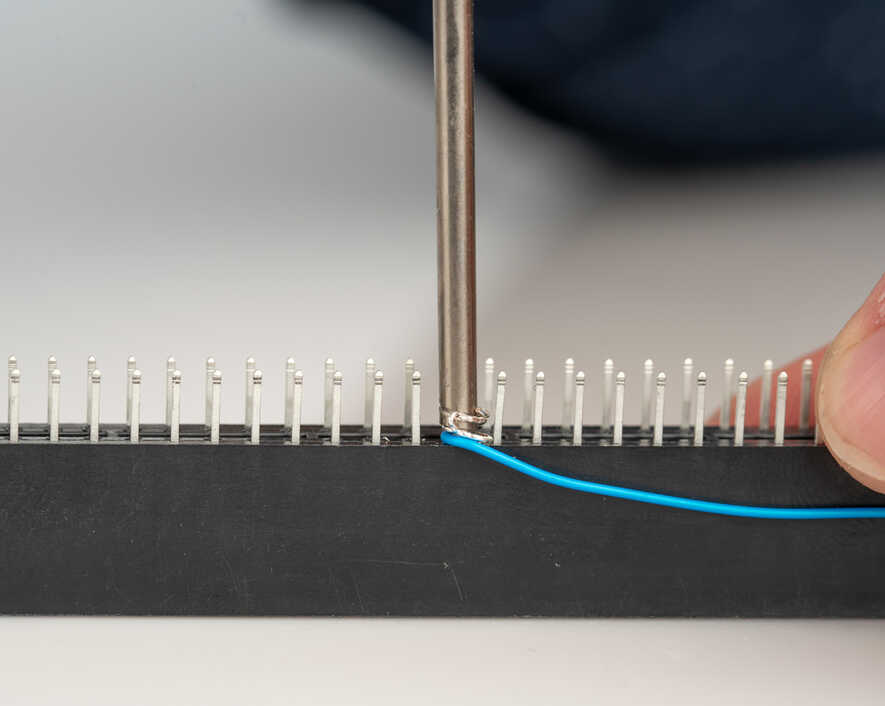

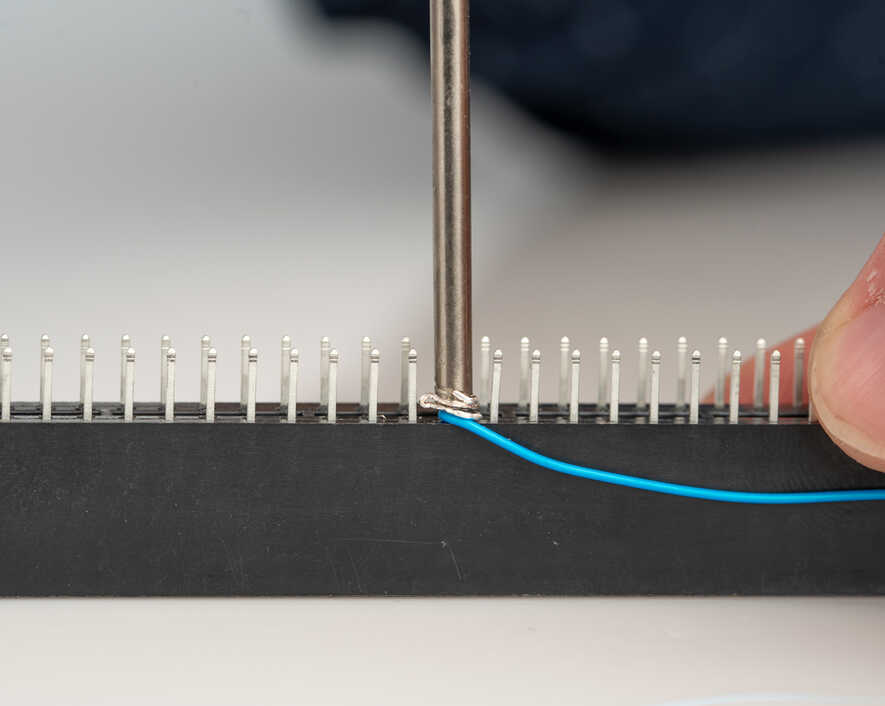

Designed to wrap, strip, and/or unwrap 24 AWG (0.51 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical

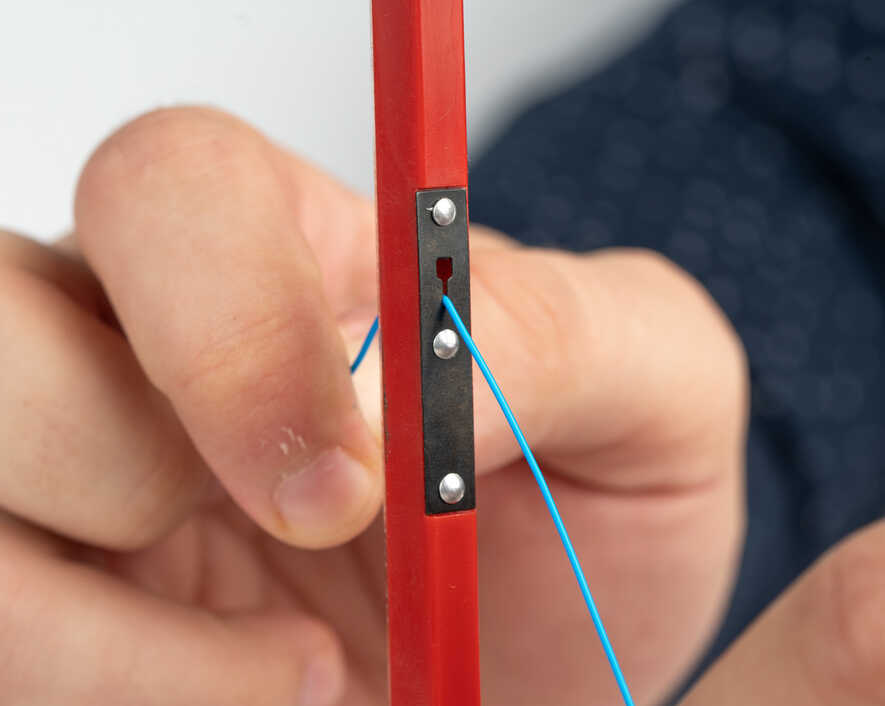

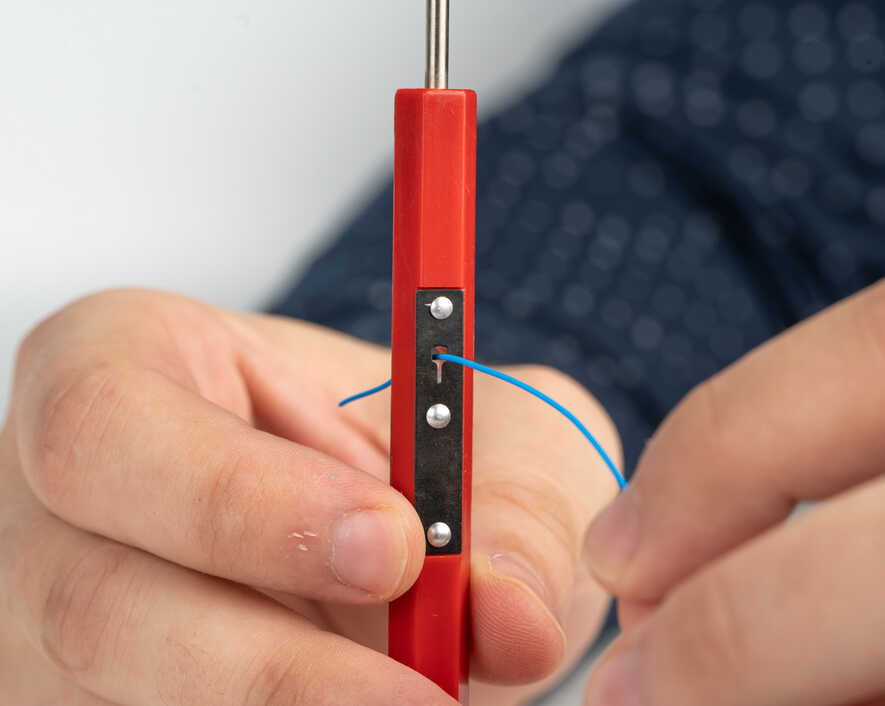

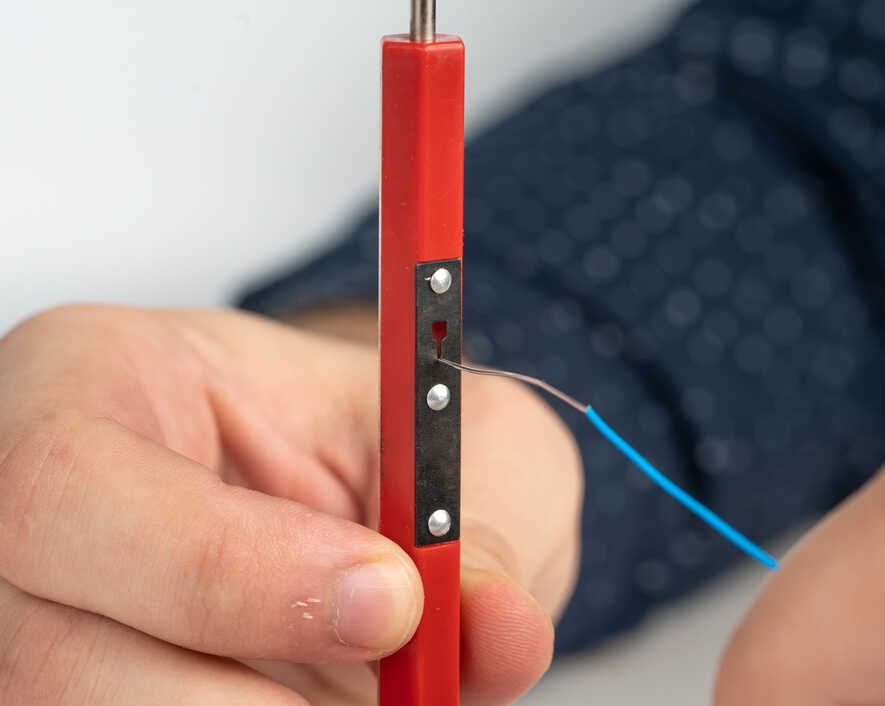

- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool

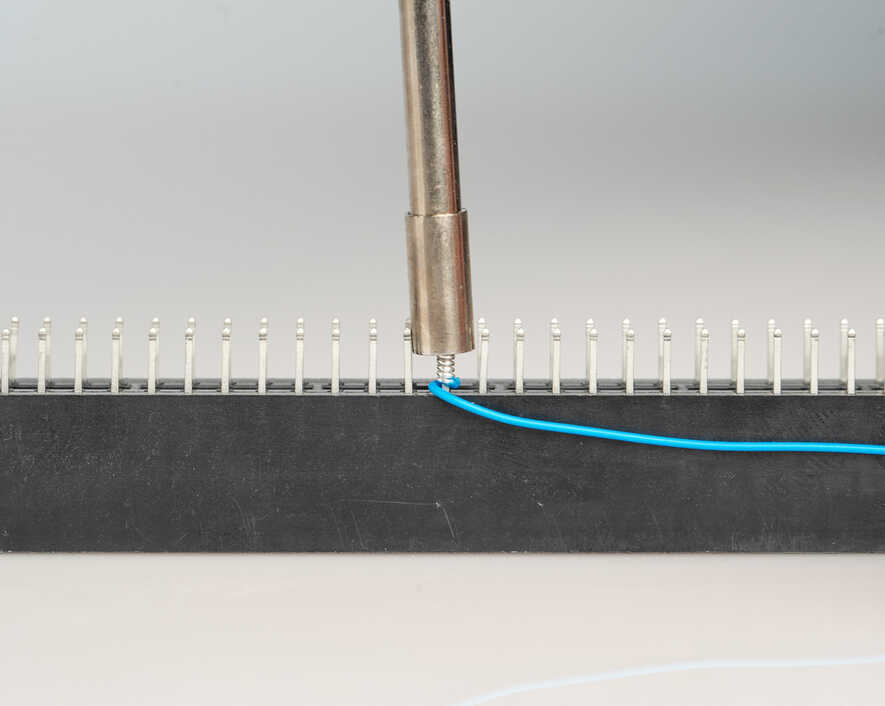

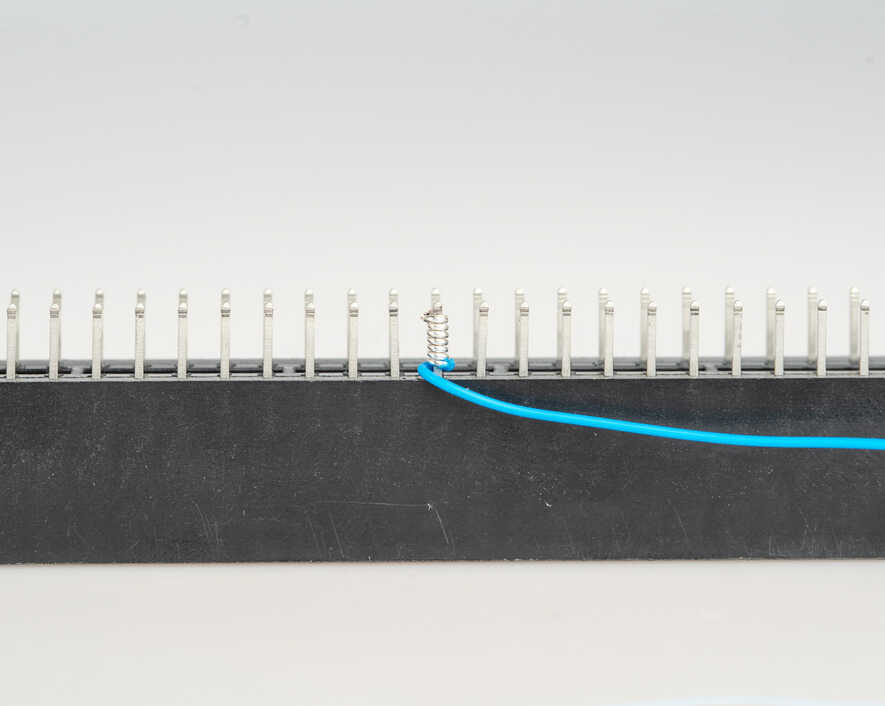

- Modified wrap provides 1.5 to 2 turns of insulation when wire wrapping
| Wrap Type | Modified |
|---|---|
| Wire Gauge | 24 AWG (0.51 mm) |
| Maximum Insulation Diameter | 0.036" (0.91 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1.50" (38.1 mm) |
| Outside Diameter | 0.213" (5.4 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 6(16.8275cm) |
| Weight | 0.03 lb (13.62 g) |
| UPC # | 811490013667 |
