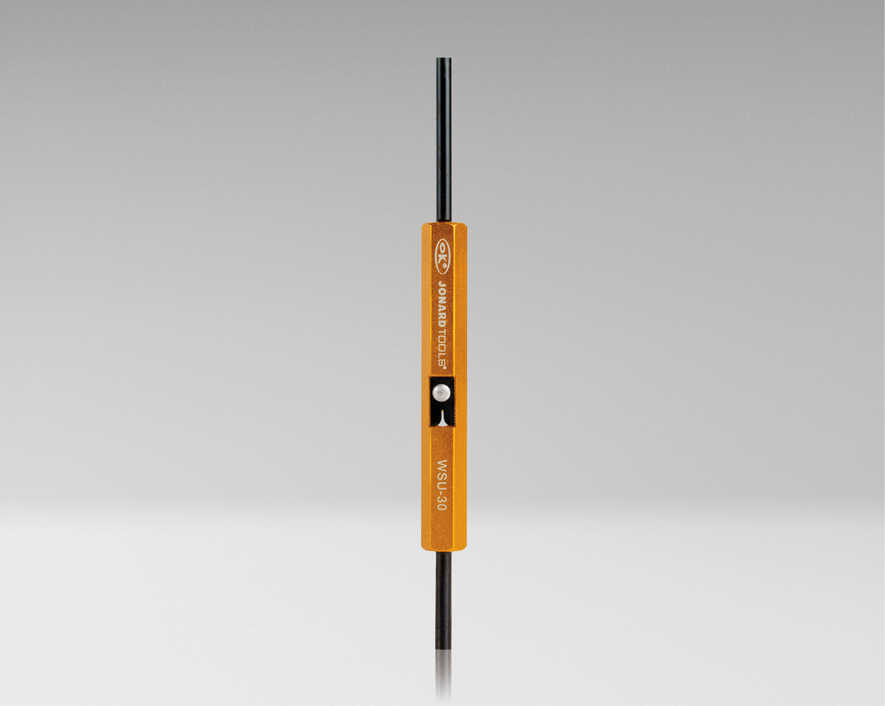

Jonard - WSU-30 - Wrap-Strip-Unwrap Tool, 30 Awg
Part number:
WSU-30
Price:
Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:

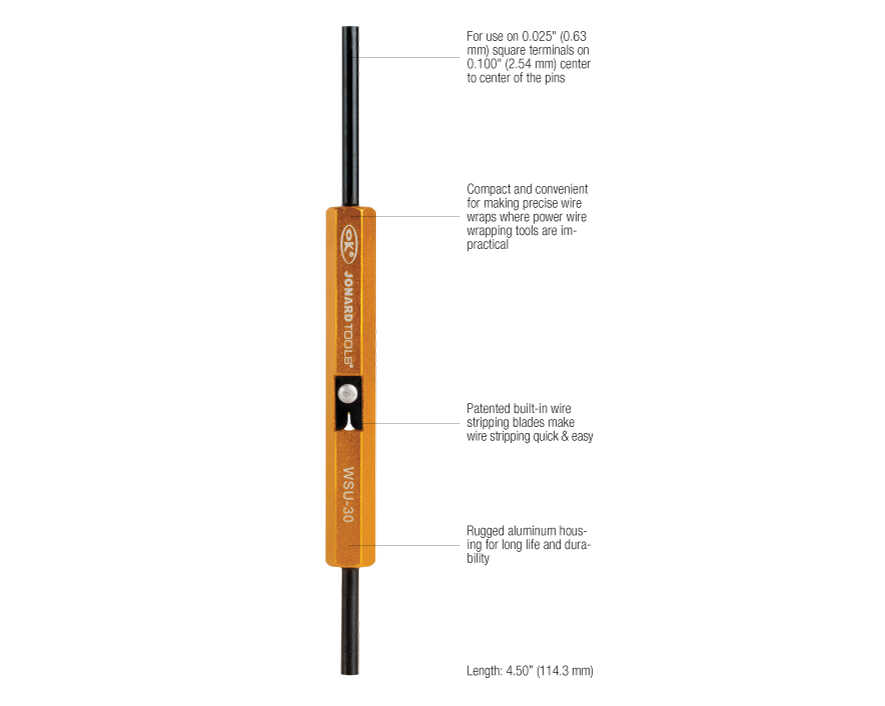

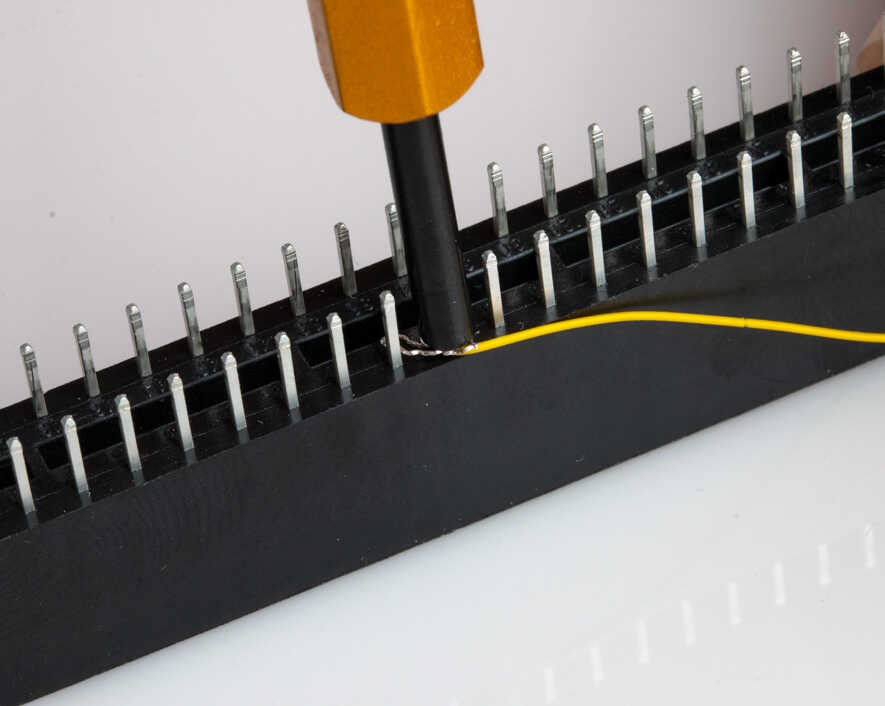

- For use on 0.025" (0.63 mm) square terminals on 0.100" (2.54 mm) center to center of the pins

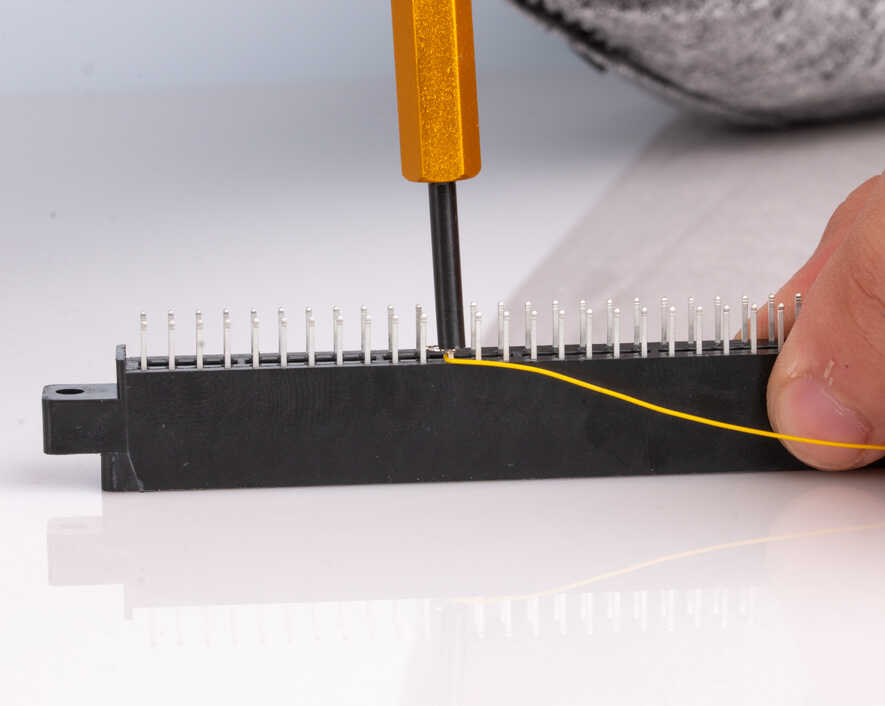

- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical

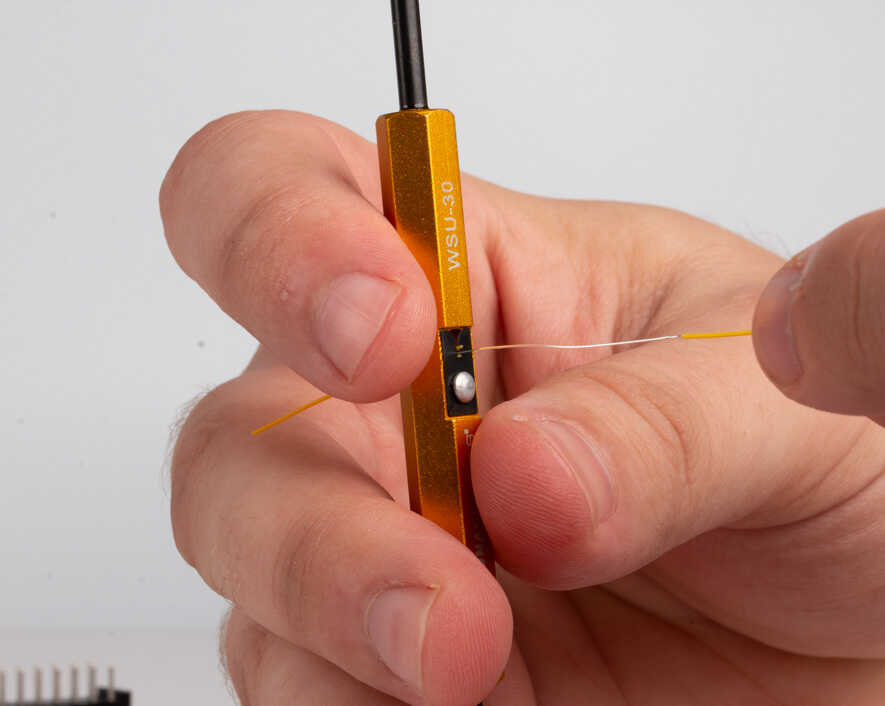

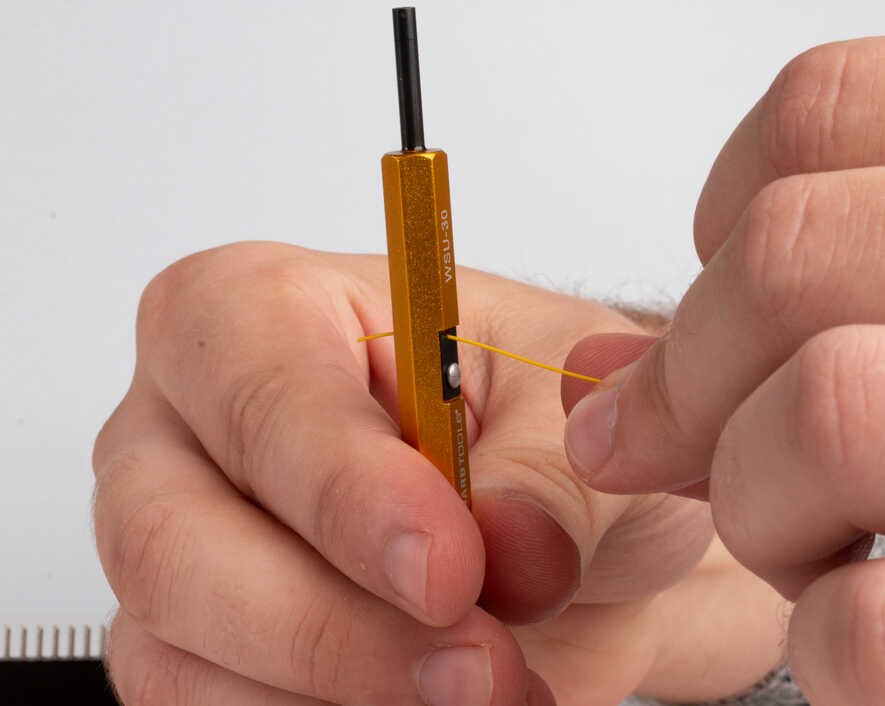

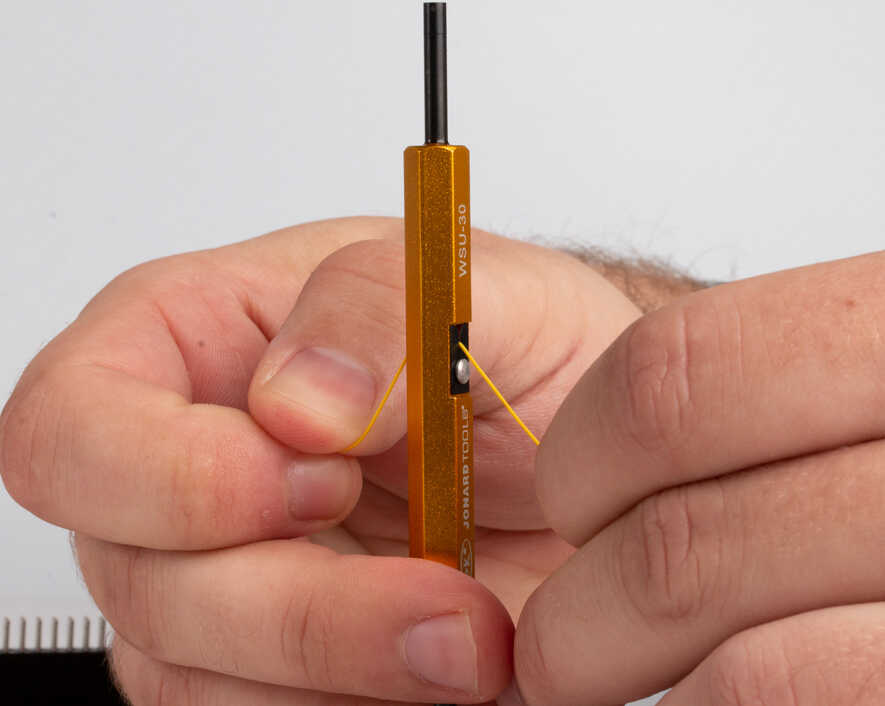

- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool
- Rugged aluminum housing for long life and durability
| Wrap Type | Regular |
|---|---|
| Wire Gauge | 30 AWG (0.25 mm) |
| Terminal Hole Diameter | 0.036" (0.91 mm) |
| Terminal Hole Depth | 1.50" (38.1 mm) |
| Outside Diameter | 0.125" (3.2 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Length | 4(11.5062cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490012172 |
