HID Compatible, Wiegand, Proximity Reader

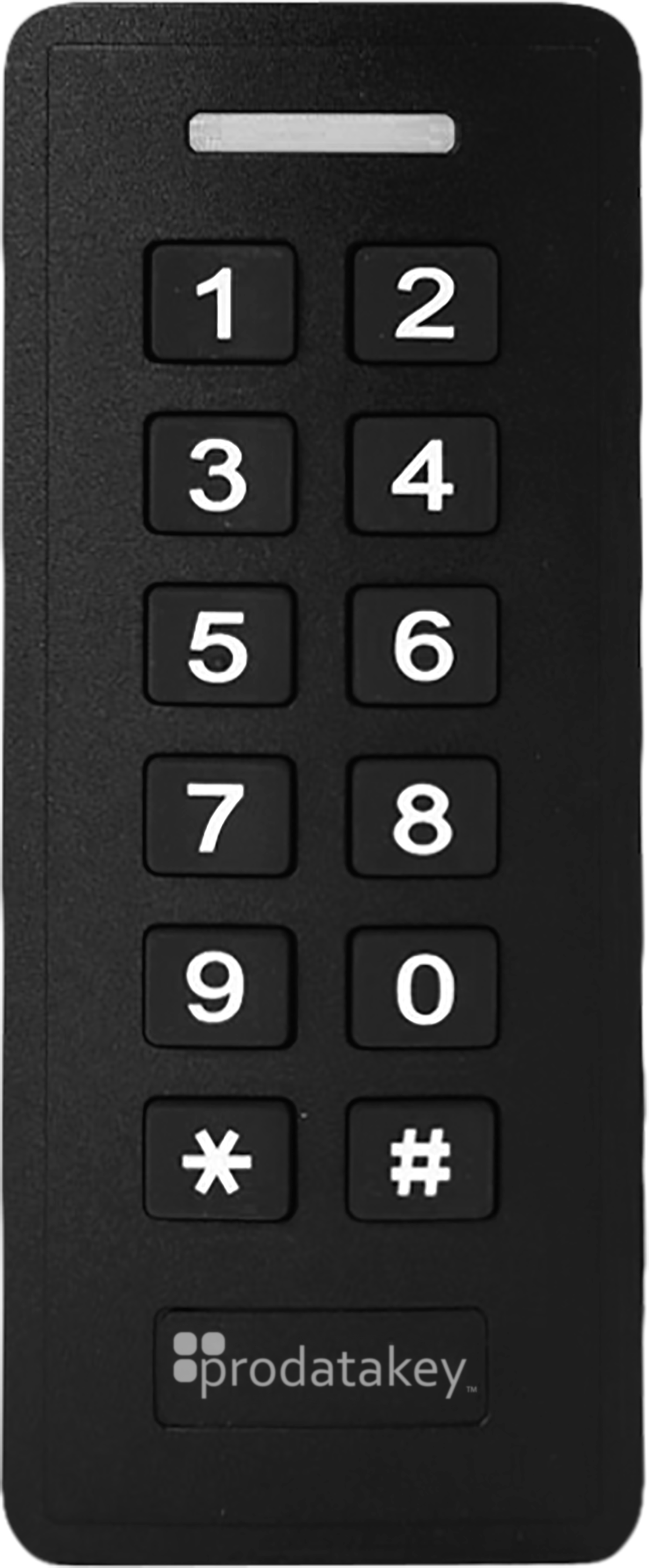

The keypad reader is perfect for indoor/outdoor applications and offers users the flexibility o f u sing everyday proximity credentials or PIN numbers to gain access to secure areas. Add an extra layer of security with two-factor authentication, requiring users to present proximity credentials and enter a PIN number to gain access.
| Input | |
| Frequency | 125 kHz |
| Output | 26-bit Wiegand protocol |
| Environmental | - |
| Temperature: | -31° ~ +140° F /-35° ~ +60° C |
| Humidity | 0 - 95% relative humidity non-condensing |
| Enclosures | |
| Dimensions: | (W x H x D) 1.9” x 4.8” x 0.875” |
| Weight | 0.33 lbs / 5.3 oz / 150 g |
