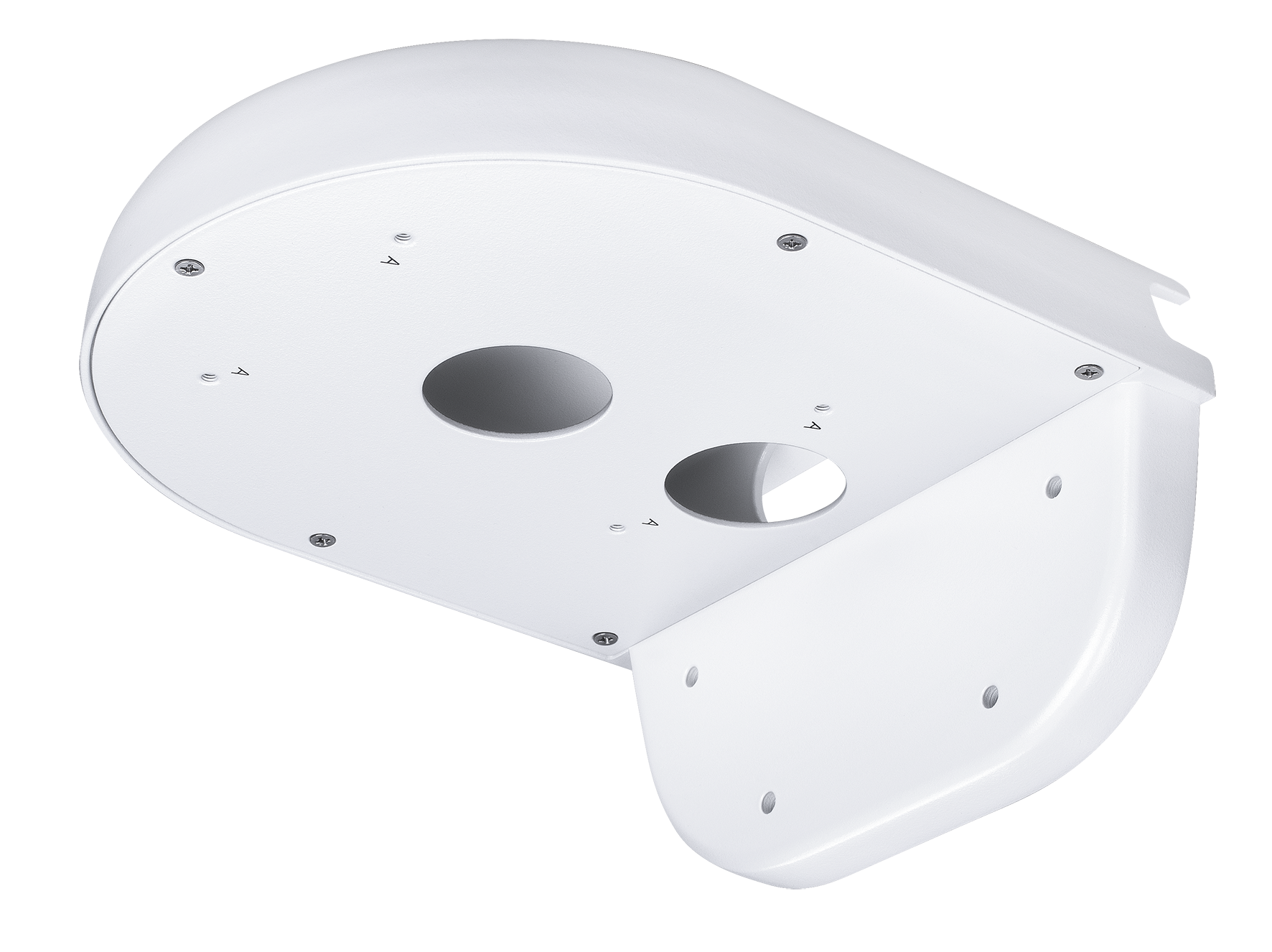

L-shape Bracket for FD9167-HT-v2, FD9367-EHTV-v2, FD9365-EHTV-v2, FD9187-HT-V3, FD9387-EHTV-V3, FD9391-EHTV-v2, FE9380-HV, FE9382-EHV-v2, FE9391-EHV-v2
| Technical Specifications | |
| Product Information | |
| Model | AM-21O |
| P/N | VIO909B00100 |
| Material | Aluminum Alloy |
| Color | White |
| Dimensions | 206 (L) x 182 (W) x 110 (H) mm |
| Weight | 962 g |
| Box Dimension | 206 (L) x 110 (W) x 182 (H) mm |
| Box Weight | 1230 g |
| Carton Dimension | 880 (L) x 550 (W) x 250(H) mm (10 pcs) |
| Carton Weight | 14400 g |
| Supported Models | FD9167-HT-v2, FD9367-EHTV-v2, FD9365-EHTV-v2, FD9187-HT-V3, FD9387-EHTV-V3, FD9391-EHTV-v2, FE9380-HV, FE9382-EHV-v2, FE9391-EHV-v2 |
