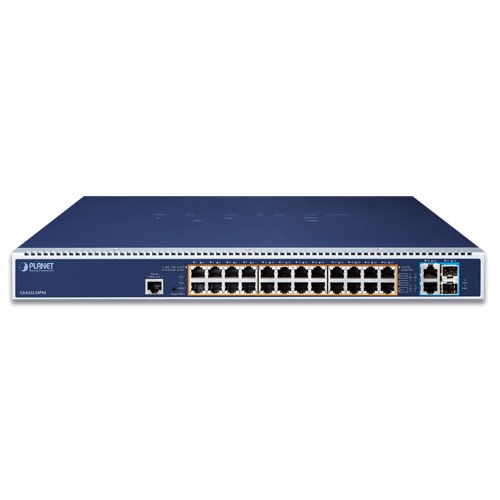

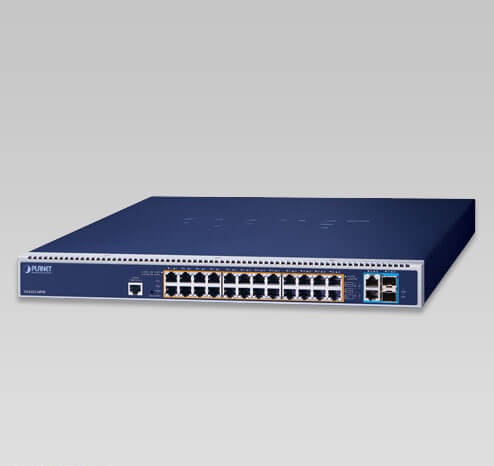

Planet - GS-6322-24P4X - L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBASE-T + 2-Port 10G SFP+ Managed Switch with Dual Modular Power Supply
Product Overview
The Planet GS-6322-24P4X is a Layer 3 managed PoE++ switch with 24 802.3bt ports (95W each, 2280W total), 2 10GBASE-T ports (10G/5G/2.5G/1G/100M), and 2 10G SFP+ ports, delivering 128 Gbps fabric. It features dual modular PSUs (RPS/EPS), OSPFv2 routing, ERPS (<10ms recovery), and ONVIF discovery.
Key Configuration
• Copper ports: 24 × 10/100/1000BASE-T 802.3bt PoE++ (ports 1-24), 2 × 10GBASE-T (ports 25-26, 5-speed auto-negotiation)
• SFP+ ports: 2 × 10GBASE-SR/LR (ports 27-28, compatible with 1000BASE-X and 2.5G SFP)
• PoE budget: up to 2280W (dual PSUs in EPS mode); per-port output: 95W (UPoE), 90W (802.3bt), 60W (Force), 36W (End-span/Mid-span)
• PoE modes: 802.3bt, UPoE, End-span, Mid-span, Force
• Power supplies: 2 × modular slots (920W/1200W/2000W options); RPS (1+1) or EPS (2+0) mode
• Switch fabric: 128Gbps; throughput: 95.23 Mpps
Key Features
This high-performance switch delivers extreme PoE++ power with dual modular PSUs (920W/1200W/2000W options), supporting up to 2280W total in EPS mode (combined budget) or redundant RPS mode (1+1 failover with the same budget as a single PSU). It features PoE Extend mode (160–200m), PD alive check, PoE scheduling, and scheduled power recycling, with 5 PoE modes ensuring compatibility with any powered device.
Technical Context
Layer 3 routing includes IPv4 OSPFv2 and IPv4/IPv6 hardware static routing (128 interfaces, 128 entries), while ERPS provides sub-10ms ring recovery for mission-critical networks. 10GBASE-T ports support 10G/5G/2.5G/1G/100M auto-negotiation over Cat6A cabling, with SFP+ slots for fiber uplinks up to 60km. VLAN (802.1Q with 255 groups, Q-in-Q, private VLAN), link aggregation (3 groups, 4 ports each), IGMP/MLD snooping, and 8 priority QoS queues deliver comprehensive traffic management.
Installation Notes
Housed in a 1U rack-mountable chassis (440 × 300 × 44 mm, 5478g), it operates from 0–50°C with 5–95% RH and stores from -10–70°C, backed by 6KV ESD protection. Security features include 802.1X, RADIUS/TACACS+, ACLs (256 entries), DHCP snooping, IP source guard, and ARP inspection. Management offers console (RS232-to-RJ45), Web, Telnet, SNMP v1/v2c/v3, SSHv2, TLSv1.2, and SSL with SFP-DDM, plus ONVIF device discovery and floor map visualization. TAA compliant.
| Hardware Specifications | |
|---|---|
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2-port 10GBASE-T RJ45 auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate |
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) Compatible with 1000BASE-SX/LX/BX SFP and 2.5G SFP transceiver |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440x300x44mm, 1U height |
| Weight | 5478g |
| Power Requirements | Single 2000W PSU: AC 100~240V, 50/60Hz, 13A Dual 2000W PSUs: AC 100~240V, 50/60Hz, 26A |
| Power Consumption | Single PSU: Max. 2032 watts/ 6933 BTU Dual PSUs in EPS mode: Max. 2377 watts/ 8111 BTU |
| ESD Protection | 6KV DC |
| Fan | 2 smart fans |
| LED | System: SYS (Green) PWR1 (Green) PWR2 (Green) Ring (Green) Fan1/2/3 Alert (Red) PoE PWR Alert (Red) PoE Ethernet Interfaces (Port-1 to Port-24): af/at PoE (Orange) bt PoE/UPOE (Green) Ethernet Interfaces (Port-1 to Port-24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 1/10G SFP+ Interfaces (Port-27 to Port-28): 1G (Green), 10G (Orange) |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: -10G – Cat 6A/7 -5G – Cat 6/6A/7 -1G/2.5G – Cat 5e/6/6A/7 -100M – Cat 5/5e/6/6A/7 -Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters) 10GBASE-LR/SR/BX: -50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m -9/125μm single-mode fiber optic cable, up to 60km |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 128Gbps/non-blocking |
| Throughput | 95.23Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| RING | Support ERPS, complies with ITU-T G.8032 Recovery time < 10ms with 3 units Recovery time < 50ms with 16 units |
| Jumbo Frame | 10K bytes |
| Power over Ethernet | |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type | 802.3bt UPoE End-span Mid-span Force |
| PoE Power Output | Per port 54V DC -802.3bt Type-4 mode, Port-1 to Port-24: maximum 90 watts -UPoE mode, Port-1 to Port-24: maximum 95 watts -End-span mode: maximum 36 watts -Mid-span mode: maximum 36 watts -Force mode: maximum 60 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | up to 2280 watt |
| PoE Management Functions | |
| Active PoE device alive detects | Yes |
| PoE Power Recycle | Yes, daily or predeinded schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. 160 to 200 meters |
| PoE System Management | System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-termperature threshold alarm PoE usage threshold alarm |
| PoE Port Management | Port Enable/Disable/Schedule PoE mode control – 802.3bt – UPoE – 802.3at End-span – 802.3at Mid-span Force mode Port Priority |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 OSPFv2 IPv4 hardware static routing IPv6 hardware static routing |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 3 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching: – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/ToS field in IP packet |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: – MAC Address – IP Address – Ethertype – Protocol Type – VLAN ID – DSCP – 802.1p Priority Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt PoE++ Power over Ethernet Plus Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
