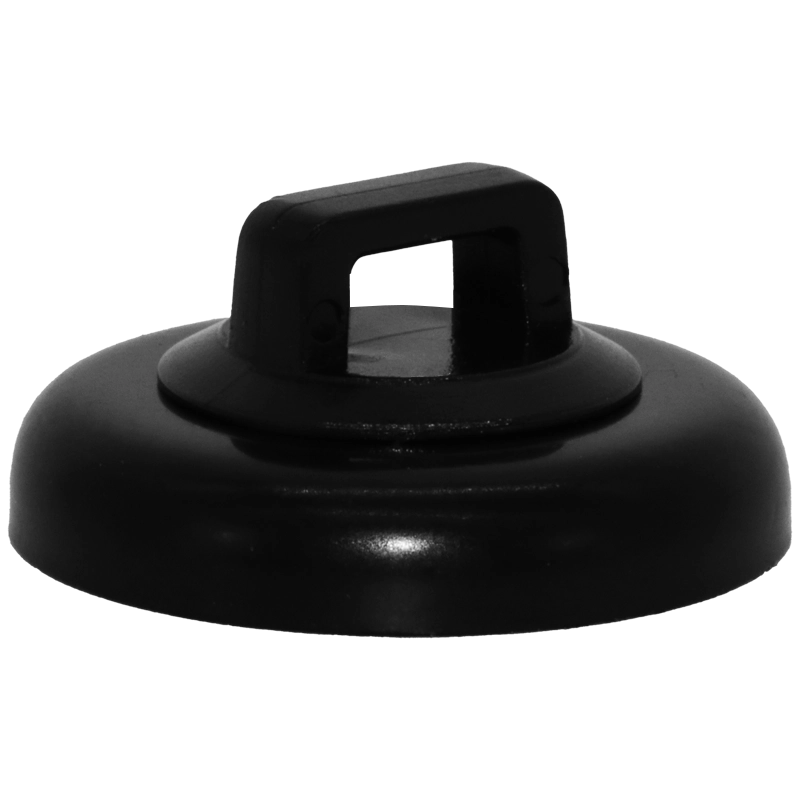

Magdaddy - 62417-10 - Large Magnetic Cable Tie Mount, UL Listed 15 lbs
Part number:
62417-10
Price:
Product Overview
The Magdaddy Large Magnetic Cable Tie Mount is a UL-listed magnetic cable management solution featuring a neodymium magnet rated at 15 lbs pull strength, available in a package quantity of 10. This mount includes a black polymer UV-resistant cable tie holder with standard size opening (0.23" x 0.11") for standard cable ties, with 360° rotation capability and plenum rating.
Key Configuration
- • Package quantity: 10 mounts.
- • Magnet strength: 15 lbs pull force, neodymium triple plated (NiCuNi).
- • Cable tie opening: 0.23" x 0.11" (standard size).
- • Rotation: 360° capability.
- • Material: Black polymer UV-resistant holder.
- • Certifications: UL Listed, Plenum Rated.
| Component type | Magnetic cable holder / snap-lock clip anchor |
| Clamping diameter | 1/2" (≈12.7 mm) internal clearance |
| Package | 10 pieces per pack |
| Magnet | Neodymium (NdFeB) rare-earth matrix |
| Pull force | 10 lbs (≈4.5 kg) vertical hold |
| Compliance | UL-listed, plenum-rated for air-handling spaces and drop ceilings |
| Feature | Snap-lock clip design for quick cable insertion and easy modification |
Name
Description
Size
Downloads
File
Specification Sheet
0.2mb
