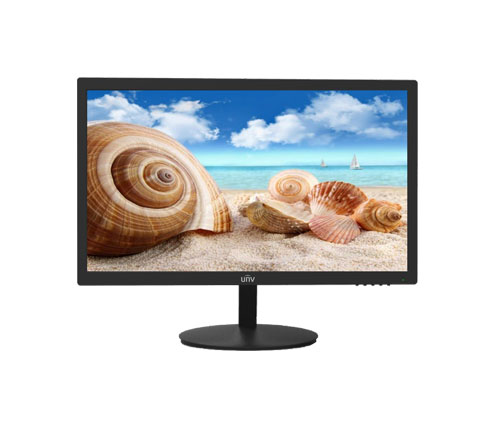

UNV - MW3222-V-DT - 22" CCTV Monitor
Product Overview
Uniview MW3222-V-DT is a 22" CCTV monitor with LED backlight and 1920×1080 maximum resolution. It features 250 cd/m² brightness, 3000:1 contrast ratio, 7 ms response time, and 178° horizontal and vertical viewing angles. The monitor includes dual 1.5W speakers, VESA 100×100 mm mounting, and comes with a pedestal mount.
Key Configuration
- • Screen size: 21.5"; max resolution: 1920×1080
- • Brightness: 250 cd/m²; contrast ratio: 3000:1; response time: 7 ms
- • Inputs: 1 × VGA, 1 × HDMI, 1 × Audio In (3.5mm mini-jack)
- • Speakers: 2 × 1.5W
- • VESA mounting: 100 × 100 mm; 4-M4 threaded holes
Key Features
• LED backlight display with 16.7M colors
• Wide viewing angles: 178° horizontal and vertical
• Multi-language OSD: English, French, Spanish, German, Russian, Korean, Japanese, Simplified Chinese (8 languages)
• Pedestal mount included; optional hanging bracket available (Model: HB-4022-E)
Technical Context
Pixel pitch: 0.248 × 0.248 mm. Power supply: DC 12V, 2A; power consumption: ≤24W (on), ≤0.5W (standby). Accessories included: HDMI cable, adapter, pedestal, quick guide.
Installation Notes
Dimensions without pedestal: 508.02 × 307.90 × 40.10 mm; with pedestal: 508.02 × 392.87 × 200.00 mm. Package dimensions: 566 × 382 × 116 mm. Net weight: 2.3 kg; gross weight: 3.4 kg. Operating temperature: 0°C to 40°C; operating humidity: 20%–85% non-condensing. Storage temperature: -10°C to 50°C; storage humidity: 10%–90% non-condensing. VESA 100×100 mm mounting with 4-M4 threaded holes.
| Model | MW3222-V-DT |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 21.5” |
| Pixel Pitch(mm) | 0.248*0.248 |
| Max Resolution | 1920*1080 |
| Brightness(cd/m2) | 250 |
| Contrast | 3000:1 |
| Response Time(ms) | 7 |
| color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Interface | |
| Input | 1* VGA、1* HDMI、1* Audio In |
| Audio | |
| Audio Input | 1, 3.5 mm mini-jack |
| Speaker | 2*1.5W |
| OSD | |
| Multi- Language | 8 (English、France、Spanish、German、Russia、Korea、Japanese、Simplified Chinese) |
| Mounting | |
| VESA(mm) | 100*100 |
| Wall-mounted Thread | 4-M4 Threaded hole |
| General | |
| Power supply | DC 12V, 2A |
| Consumption(W) | ≤24 (on) ≤0.5(Standby) |
| Operation Temperature | 0°C ~ 40 °C |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~ 50°C |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W*H*D)(mm) | 508.02*307.90*40.10(No Pedestal) 508.02*392.87*200.00(With Pedestal) |
| Package(W*H*D)(mm) | 566*382*116 |
| Weight(Kg) | Net Weight:2.3 Gross Weight:3.4 |
| Accessory | |
| Standard | HDMI cable、Adapter、Pedestal、Quick Guide |
| Optional | Hanging bracket(Model: HB-4022-E) |
