Product Overview

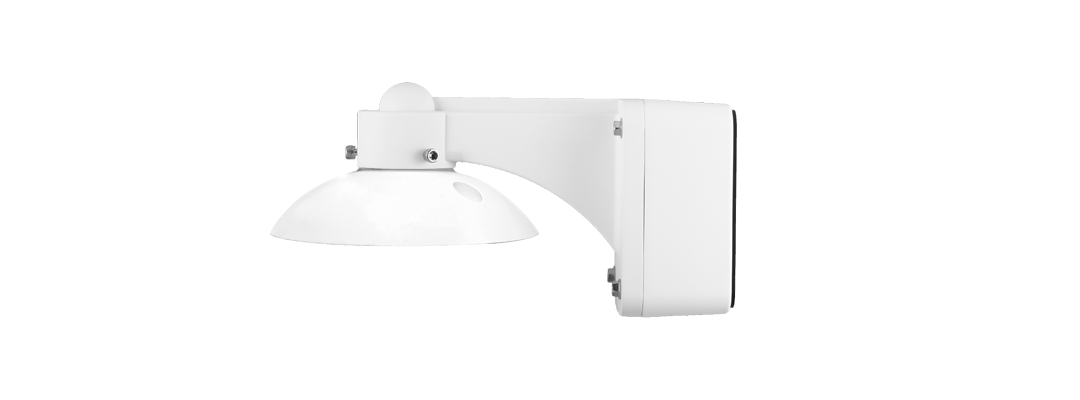

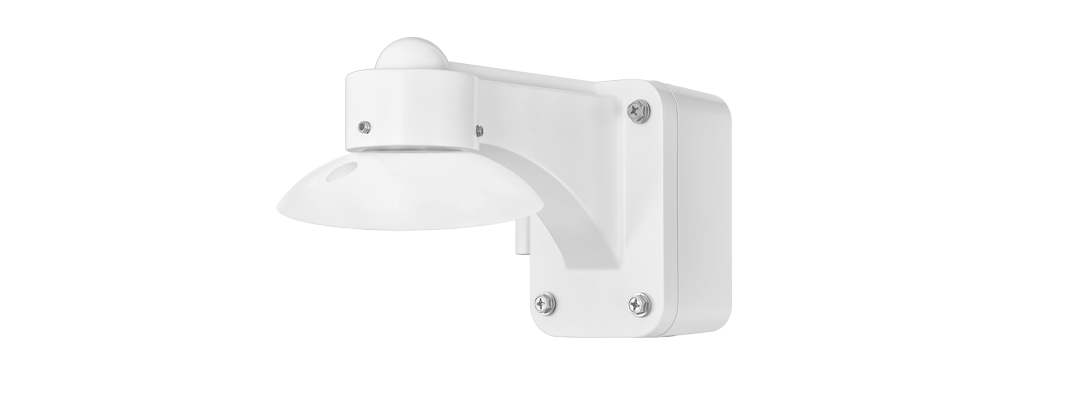

The LILIN BCR04W is an aluminum junction box designed to support clean and secure surveillance camera installations. It provides a structured mounting and cable-management point for compatible camera setups while maintaining a compact, durable enclosure profile.
Key Configuration
Model: LILIN BCR04W; product type: junction box; material/construction: aluminum; dimensions: 148mm x 160mm x 301mm; weight: 1.8kg; single box weight: 2kg.
Key Features
• Aluminum construction supports durable installation performance.
• Junction box design helps organize and protect camera wiring.
• 148mm x 160mm x 301mm dimensions provide a practical mounting footprint.
• 1.8kg unit weight supports stable mounting when properly installed.
• Suitable for surveillance installations requiring a dedicated camera junction box.
Technical Context
The BCR04W is intended to provide a secure intermediate mounting and cable-routing point for compatible surveillance equipment. Its aluminum body helps protect connections and support a cleaner installation layout.
Installation Notes
Install on a suitable mounting surface using appropriate hardware for the wall or structure. Confirm camera compatibility, route cables through the junction box, and verify that the mounted assembly is secure before final camera alignment.
| General | |
| Model | BCR04W |
| Material/ Construction | Aluminum |
| Dimensions | 148*160*301 |
| Weight(KG) | 1.8 |
| Single box weight (KG) | 2 |
| Compatibility | |
Adaptable Cameras SR6422EX3 / ZHR6482EX2 / ZMR6442AX-P / ZFR6422EX3 / ZMR6422AX-P / MR6442X / MR6422X / Z2R6422AX-P / Z2R6452AX-P / Z3R6422AX3 / Z3R6422X3 / Z3R6422AX3-P2P / Z5R6422X3 / Z5R6452X / Z5R6452X3 / Z7R6482X3-P / Z6R6482X3 / Z6R6452X3 / MR6342 / MR6342A / MR6322A / P2R6322AE4 / P2R6322AE2 / P2R6352AE4 / P2R6352AE2 / P3R6322AE2 / P3R6322E2 / P3R6322AE2-P2P / P5R6322E2 / P5R6352E2 / P4R6322E4 / P6R6382E2 / P6R6352E2 / MR3042A / MR3022A / P2R3022AE2 / P2R3052AE2 / F2R36C2IM / F2R3682IM / P6R3782E2 / P6R3782E4 / P6R3782AE2 / P6R3782AE4 / P6R3782BE2 / P6R3782BE4 / P6R3780AE2 / P6R3780AE4 / P6R3780BE2 / P6R3780BE4 / P6R3752E2 / IPD6220ES2 / IPD6220ES4.3 / IPD6222ES2 / IPD6222ES4.3 / ZMR6522X / MR6542 / MR6522E2 / Z2R6522X / P2R6522E4 / P2R6522E2 / Z2R6552X / P2R6552E4 / P2R6552E2 / P3R6522E2 / P3T6522E2 / P3T6522E2-F / Z3R6522X / P5R6522E2 / Z5R6522X / P5R6552E2 / Z5R6552X / P6R6582E2 / Z6R6582X3 / P6R6552E2 / Z6R6552X3 / | |
