LiLin - BCR05W - Junction box

Product Overview

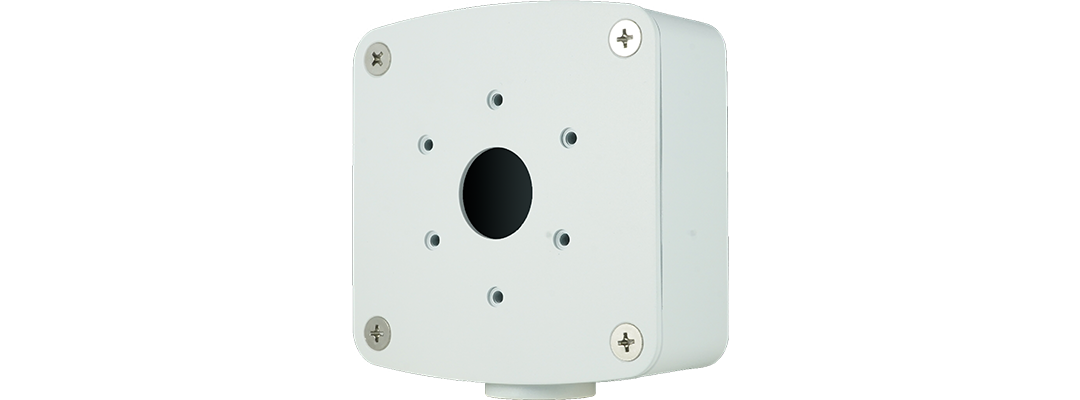

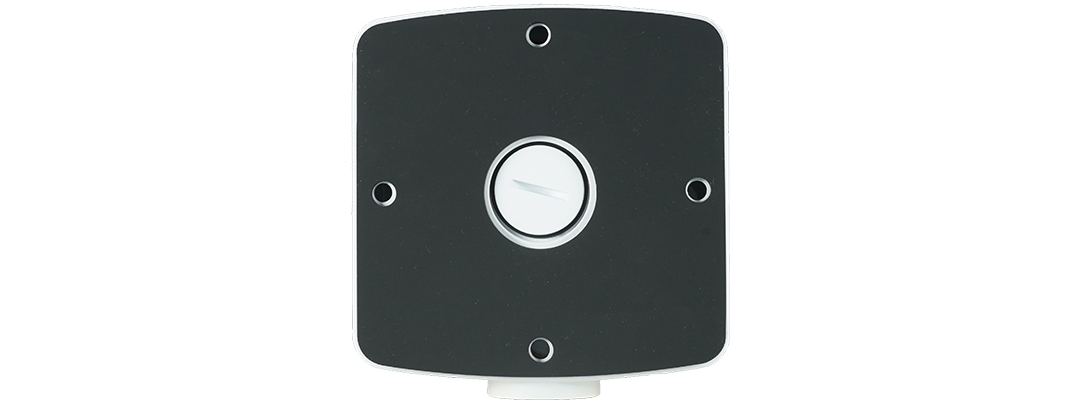

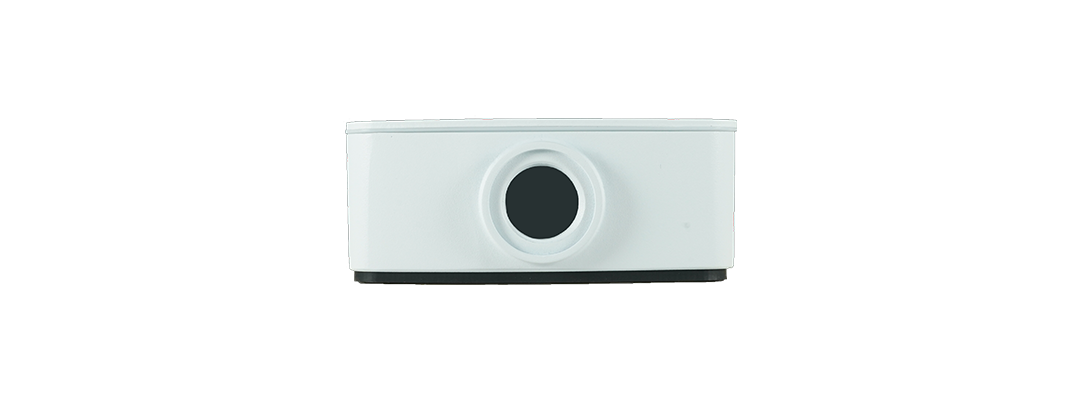

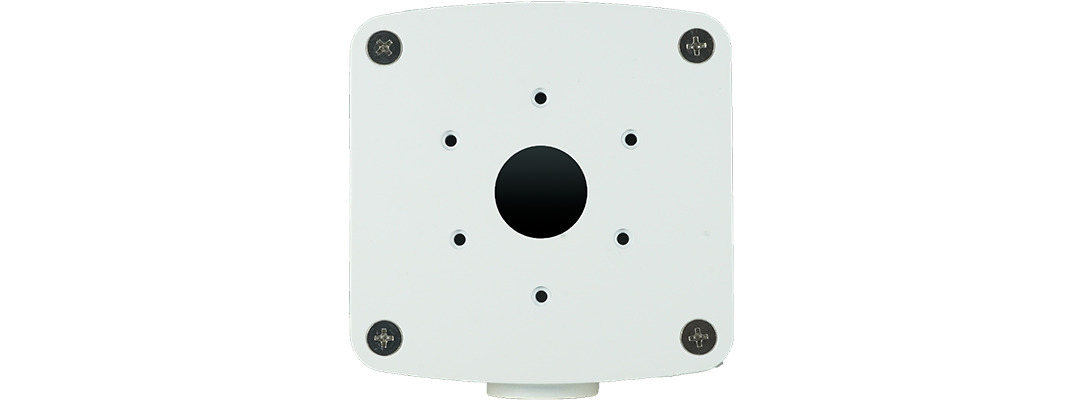

The LILIN BCR05W is a compact junction box designed for compatible bullet and turret camera installations. It provides a clean mounting base and cable-management point, helping support a neat and secure surveillance setup.

Key Configuration

Model: LILIN BCR05W; product type: junction box; dimensions: 103mm x 107mm x 42mm; supported bullet models: 83, 84, 88, 89 Series; supported turret models: 68 Series.

Key Features

• Compact junction box design supports clean camera mounting.
• Provides a dedicated cable-management point for surveillance installations.
• 103mm x 107mm x 42mm dimensions suit space-conscious mounting locations.
• Supports LILIN Bullet 83, 84, 88, and 89 Series cameras.
• Supports LILIN Turret 68 Series camera installations.

Technical Context

The BCR05W is intended for use as an accessory mounting box for supported LILIN camera families. It helps keep wiring organized behind the camera and provides a structured base for the final mounted assembly.

Installation Notes

Confirm camera compatibility before installation. Mount the junction box to a suitable surface, route cables through the enclosure, attach the supported camera, and verify that the full assembly is secure before final camera alignment.
