Product Overview

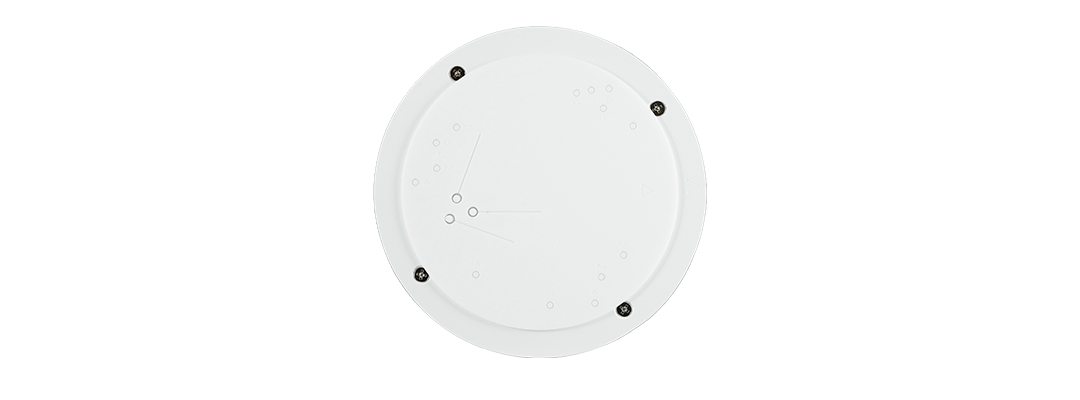

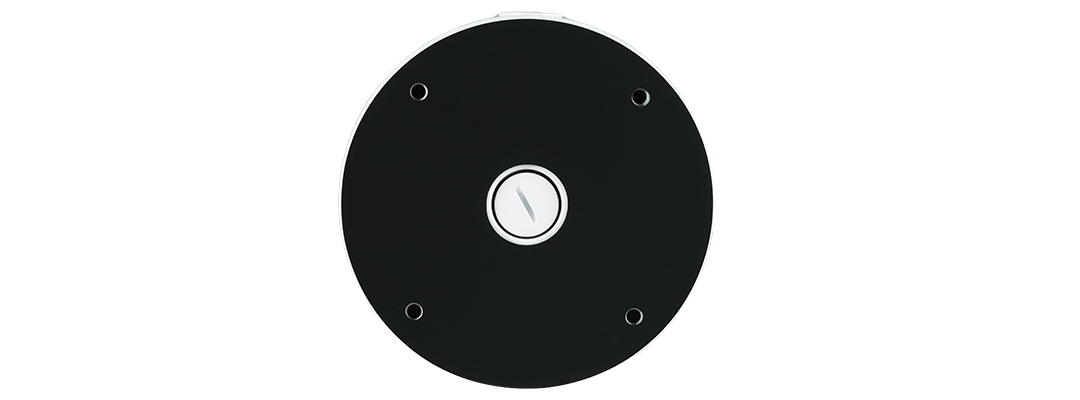

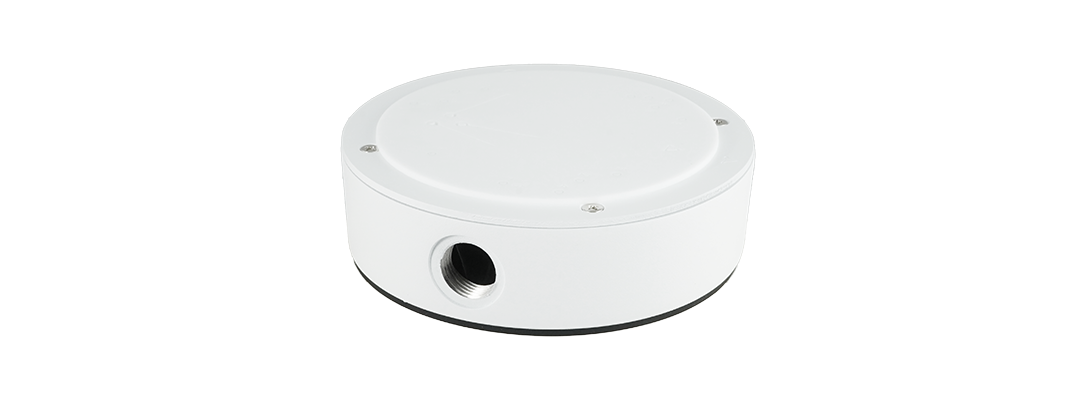

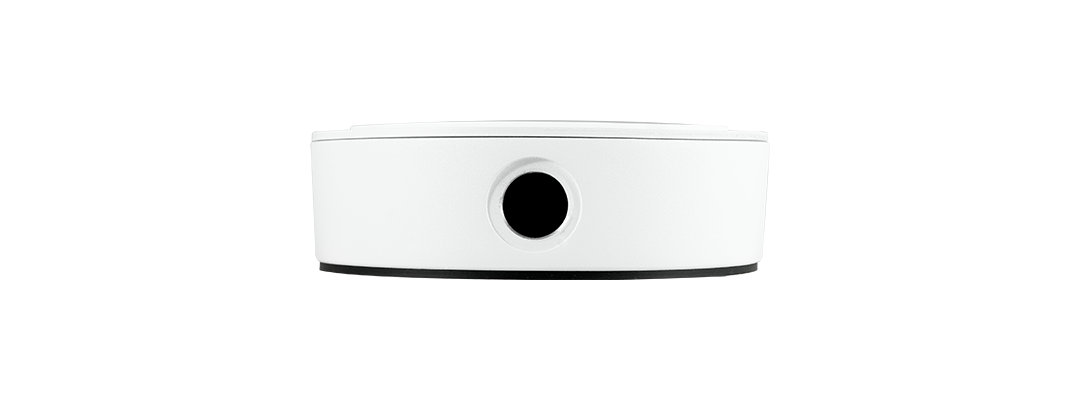

The LILIN BCR06W is a junction box designed to support multiple compatible LILIN camera series through different mounting-hole configurations. It provides a structured mounting base for clean camera installation and organized cable routing.
Key Configuration
Model: LILIN BCR06W; product type: junction box; supported models by hole pattern: Holes 2 for 22 and 62 Series; Holes 3 for 30, 36, and 63 Series; Holes 4 for 29 and 64 Series; Holes 5 for 65 Series; Holes 7 for 37 Series.
Key Features
• Junction box accessory supports clean camera mounting.
• Multiple hole patterns provide compatibility with several LILIN camera families.
• Supports 22 and 62 Series cameras using Holes 2 configuration.
• Supports 30, 36, 63, 29, 64, 65, and 37 Series cameras through dedicated hole patterns.
• Helps organize cable routing behind the mounted camera.
Technical Context
The BCR06W is intended for installations where a compatible LILIN camera requires a junction-box mounting base. Its listed hole-pattern compatibility allows installers to match the box to the correct camera series during setup.
Installation Notes
Confirm the camera series and corresponding hole pattern before installation. Secure the junction box to a suitable mounting surface, route cables through the box, attach the camera using the correct mounting holes, and verify the assembly before final camera alignment.
| General | |
| Model | BCR06W |
| Material/ Construction | Aluminum |
| Dimensions | Ø145*44 |
| Weight(KG) | 0.52 |
| Single box weight (KG) | 0.62 |
| Compatibility | |
Adaptable Cameras SR6422EX3 / ZHR6482EX2 / ZMR6442AX-P / ZFR6422EX3 / ZMR6422AX-P / MR6442X / MR6422X / Z2R6422AX-P / Z2R6452AX-P / Z3R6422AX3 / Z3R6422X3 / Z3R6422AX3-P2P / Z5R6422X3 / Z5R6452X / Z5R6452X3 / Z7R6482X3-P / Z6R6482X3 / Z6R6452X3 / MR6342 / MR6342A / MR6322A / P2R6322AE4 / P2R6322AE2 / P2R6352AE4 / P2R6352AE2 / P3R6322AE2 / P3R6322E2 / P3R6322AE2-P2P / P5R6322E2 / P5R6352E2 / P4R6322E4 / P6R6382E2 / P6R6352E2 / MR3042A / MR3022A / P2R3022AE2 / P2R3052AE2 / F2R36C2IM / F2R3682IM / P6R3782E2 / P6R3782E4 / P6R3782AE2 / P6R3782AE4 / P6R3782BE2 / P6R3782BE4 / P6R3780AE2 / P6R3780AE4 / P6R3780BE2 / P6R3780BE4 / P6R3752E2 / IPD6220ES2 / IPD6220ES4.3 / IPD6222ES2 / IPD6222ES4.3 / ZMR6522X / MR6542 / MR6522E2 / Z2R6522X / P2R6522E4 / P2R6522E2 / Z2R6552X / P2R6552E4 / P2R6552E2 / P3R6522E2 / P3T6522E2 / P3T6522E2-F / Z3R6522X / P5R6522E2 / Z5R6522X / P5R6552E2 / Z5R6552X / P6R6582E2 / Z6R6582X3 / P6R6552E2 / Z6R6552X3 | |
