LiLin - DB052E - Programmable Smart I/O BOX

Product Overview

The LILIN DB052E is a programmable smart I/O box designed to expand alarm, control, and event-response capabilities in surveillance and security systems. With a web-based GUI, digital inputs, relay outputs, MOSFET outputs, counters, scheduling, notifications, and IR output control, it provides flexible integration for automated security workflows.

Key Configuration

Model: LILIN DB052E; product type: programmable smart I/O box; interface: web-based GUI; inputs/outputs: 8 digital inputs, 4 MOSFETs, and 4 DC relays; counters: 2 hardware digital counters and 16 software virtual counters; network features: HTTP, HTTPS, email, FTP notification, CGI virtual input, and HTTP Post virtual output; power/network support: PoE interface.

Key Features

• Web-based GUI supports browser-based setup and management.

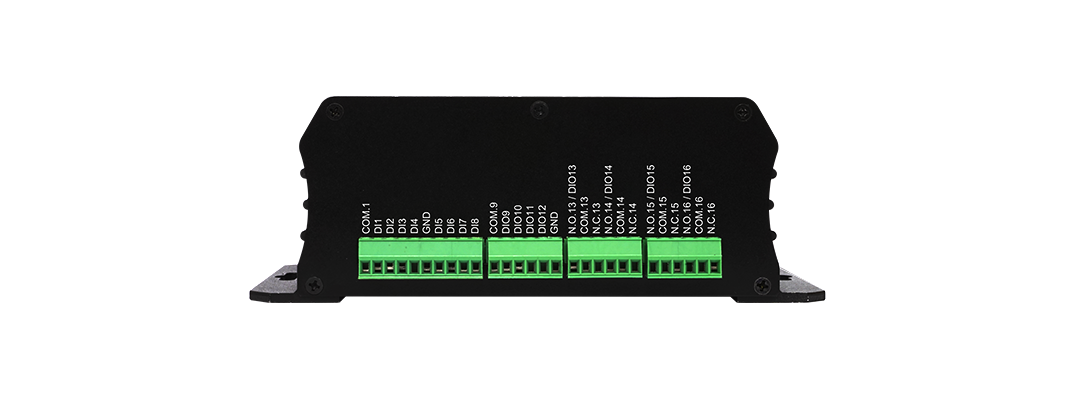

• Provides 8 digital inputs, 4 MOSFET outputs, and 4 DC relay outputs with jump switches for DI/DO mode.
• Supports dry and wet contact operation for digital inputs.
• Includes 2 hardware digital counters and 16 software virtual counters for event logic.

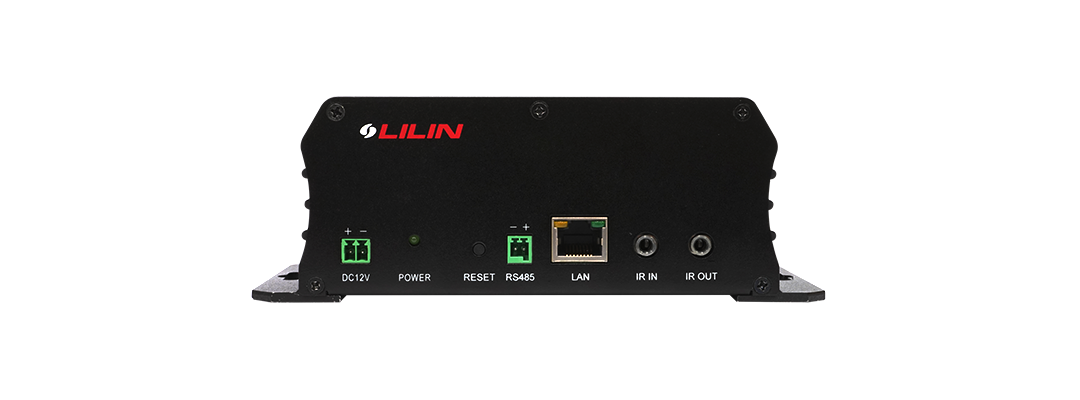

• Supports event scheduling, alarm output timers, email and FTP notifications, remote IR output control, and PoE connectivity.

Technical Context

The DB052E is intended for installations that require programmable I/O expansion beyond standard camera or recorder functions. It can be used to connect sensors, trigger alarm outputs, manage scheduled responses, parse metadata for alarm actions, and integrate CGI or HTTP Post events into a wider security system.

Installation Notes

Connect the DB052E to the network and configure it through the web-based GUI. Verify the required DI/DO mode, contact type, relay behavior, event schedule, and notification settings before connecting external alarm devices or automation equipment.
