LiLin - DHD6104-1X16TB - 16TB 4CH 5MP H.265 5-in-1 Video Recorder, P2P, UTC, HD-AHD, CVI
Product Overview

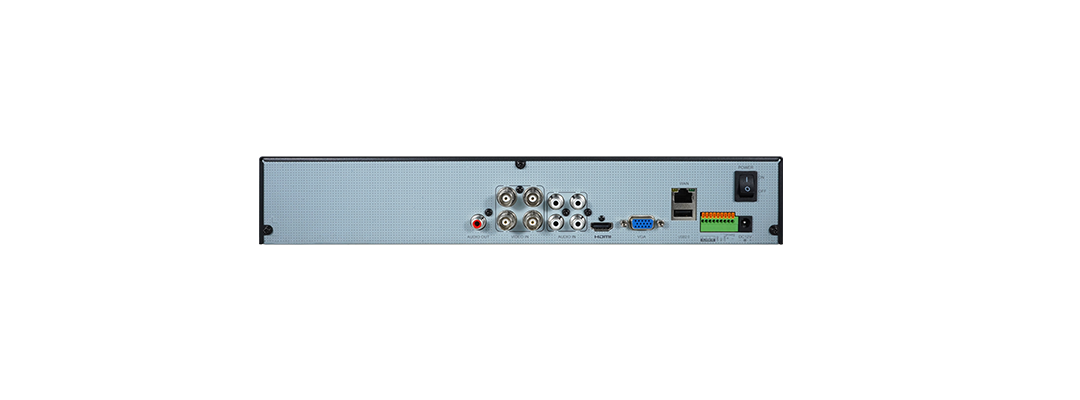

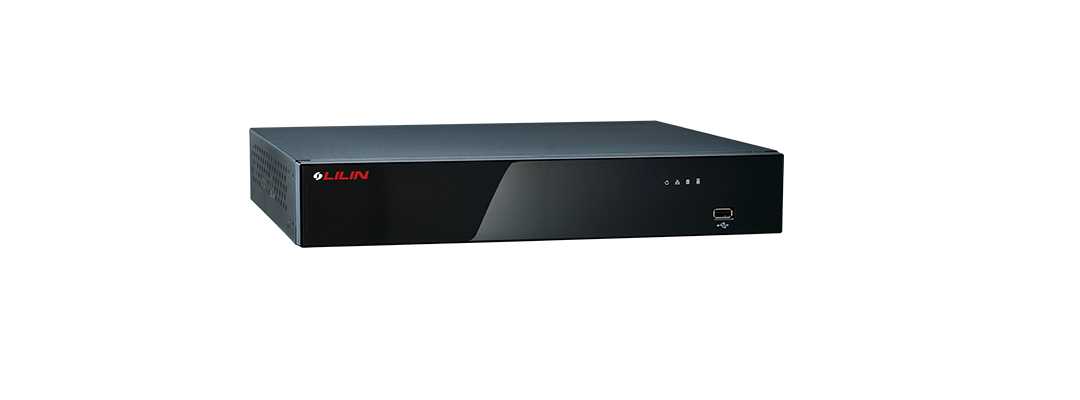

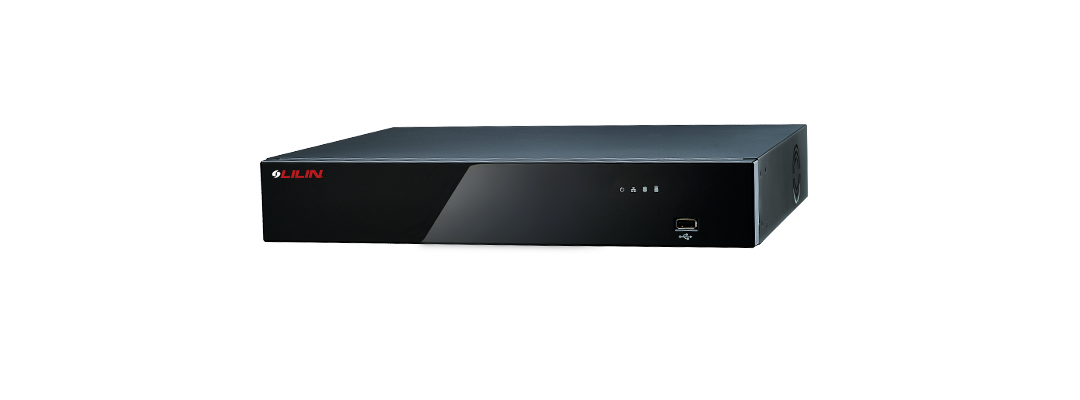

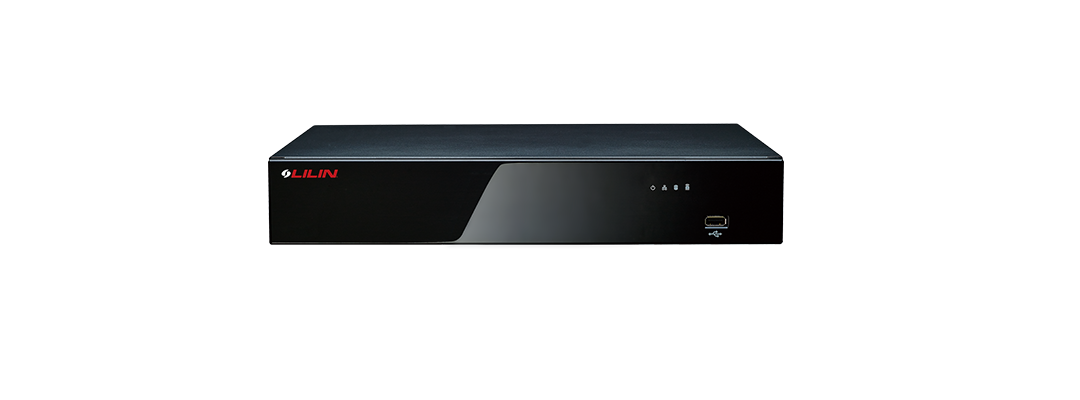

The LILIN DHD6104-1X16TB is a 4-channel 5-in-1 hybrid DVR designed to combine legacy coax-based surveillance with modern IP camera support. Pre-configured with a 16TB hard drive, it provides high-capacity recording for small to medium business and residential security systems that require extended video retention.
Key Configuration
Model: LILIN DHD6104-1X16TB; product type: 4-channel 5-in-1 hybrid DVR; included storage: 1 x 16TB HDD; camera support: up to 4 cameras; signal compatibility: AHD, TVI, CVI, traditional analog, and ONVIF IP network cameras; supported camera resolution: up to 5MP.
Key Features
• 4-channel hybrid DVR supports mixed analog and IP surveillance setups.
• 5-in-1 compatibility works with AHD, TVI, CVI, traditional analog, and ONVIF IP cameras.
• Pre-configured 16TB hard drive supports extended high-definition recording.
• Supports upgrades to 5MP cameras without requiring full coax infrastructure replacement.
• Suitable for residential and small to medium business security recording applications.
Technical Context
The DHD6104-1X16TB is intended for systems that need a practical migration path from analog CCTV to higher-resolution hybrid surveillance. Its multi-format camera support allows existing coax cabling and analog devices to remain useful while adding compatibility with ONVIF IP network cameras.
Installation Notes
Connect the required analog or IP cameras, verify the selected signal format for each channel, and configure recording schedules according to retention needs. Confirm network settings for ONVIF cameras and remote access before final deployment.
| General | |
| Model | DHD6104 |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈2.2 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 4 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 60 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 120 / 100 FPS 960H 120 / 100 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Live View | |
| Output | HDMI, VGA 1080P |
| Split Screen | 1 / 4 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 25 / 25 FPS 4M 30 / 25 FPS 1080P 60 / 50 FPS 720P 120 / 100 FPS 960H 120 / 100 FPS |
| Maximum Network Camera Input Throughput(Recording) | 32Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 60 FPS, 4M 80 FPS, 3M 60 FPS, 1080P 120 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 4CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Storage & Backup | |
| Internal HDD (Storage) | 1 × 3.5” HDD, 16TB |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio | |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 4 CH, RCA × 4 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network | |
| Network ports | RJ-45 100Mbps × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Interface & Control | |
| Ports | DI × 4 and DO × 1 ( With programmable condition ) |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
