Product Overview

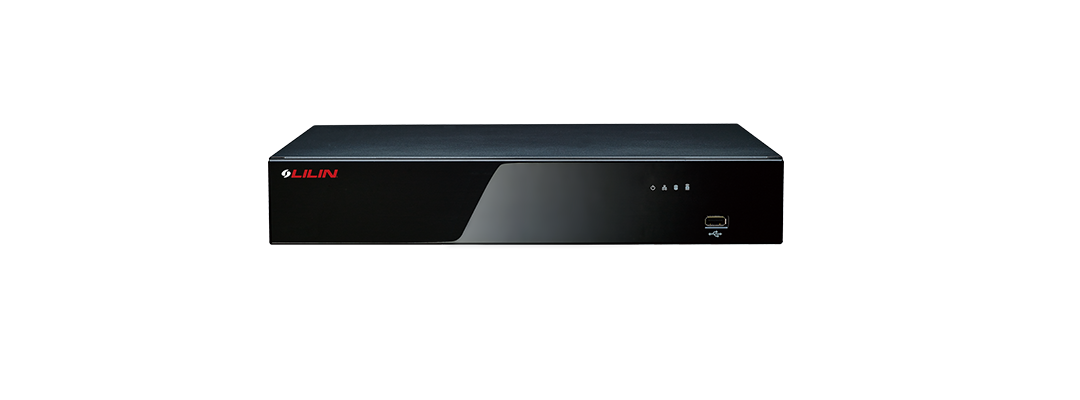

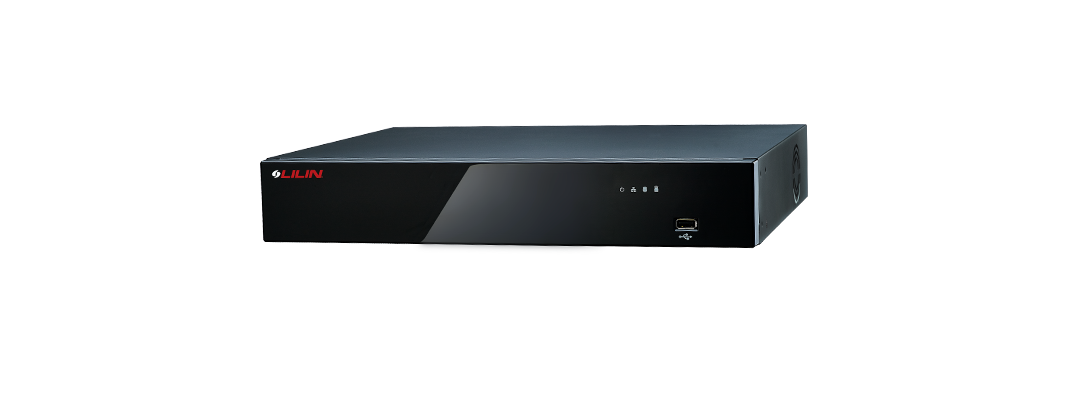

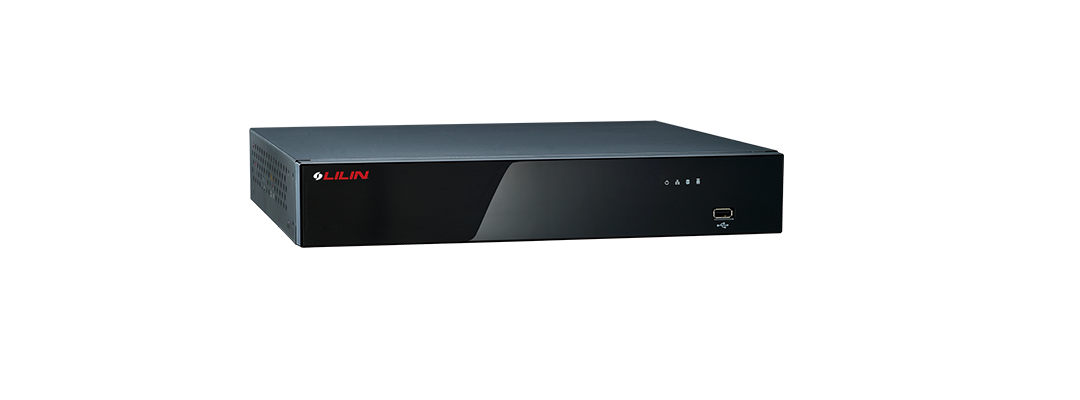

The LILIN DHD6104 is a 4-channel hybrid DVR designed for mixed analog and IP surveillance environments. It supports UTC AHD, TVI, and CVI cameras, ONVIF-compatible network cameras, remote viewing, mobile access, P2P connection, and large-capacity HDD storage for compact security recording systems.
Key Configuration
Model: LILIN DHD6104; product type: 4-channel hybrid DVR; camera support: UTC AHD, TVI, CVI, and ONVIF-compatible 5MP H.264/H.265 network cameras; storage support: up to 12TB HDD; remote access: Navigator Software, iOS, Android, and P2P connection; browser support: Chrome, Edge, Firefox, IE, Opera, and Safari.
Key Features
• 4-channel hybrid DVR supports flexible surveillance recording setups.
• Works with UTC AHD, TVI, and CVI camera inputs.
• Supports ONVIF-compatible 5MP H.264/H.265 network cameras.
• Accepts up to 12TB HDD storage for extended video retention.
• Provides remote connection through Navigator Software, mobile apps, P2P access, and major web browsers.
Technical Context
The DHD6104 is intended for installations that need hybrid recording support across analog HD and IP camera sources. Its ONVIF compatibility and H.264/H.265 network camera support make it suitable for upgrading existing CCTV systems while preserving compatibility with multiple camera technologies.
Installation Notes
Install a compatible HDD up to the supported capacity, connect the required AHD, TVI, CVI, or network cameras, and configure recording, remote access, and P2P settings before deployment. Verify browser, mobile, and Navigator Software access after network setup is complete.
| General | |
| Model | DHD6104 |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈2.1 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 4 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 60 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 120 / 100 FPS 960H 120 / 100 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Live View | |
| Output | HDMI, VGA 1080P |
| Split Screen | 1 / 4 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 25 / 25 FPS 4M 30 / 25 FPS 1080P 60 / 50 FPS 720P 120 / 100 FPS 960H 120 / 100 FPS |
| Maximum Network Camera Input Throughput(Recording) | 32Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 60 FPS, 4M 80 FPS, 3M 60 FPS, 1080P 120 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 4CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Storage & Backup | |
| Internal HDD (Storage) | 1 × 3.5” HDD, 12TB supported |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio | |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 4 CH, RCA × 4 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network | |
| Network ports | RJ-45 100Mbps × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Interface & Control | |
| Ports | DI × 4 and DO × 1 ( With programmable condition ) |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
