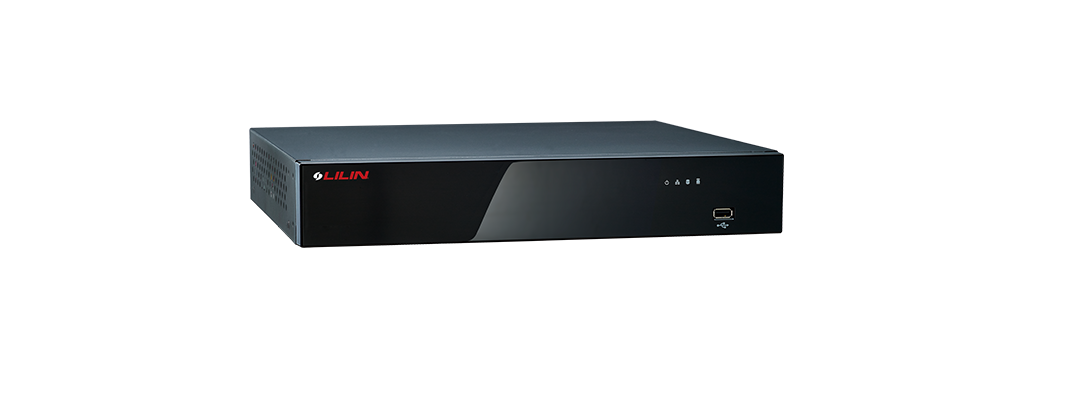

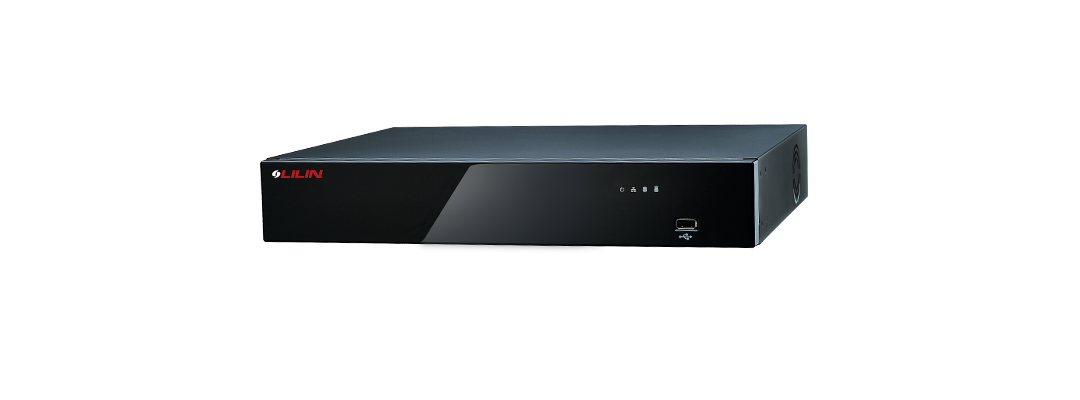

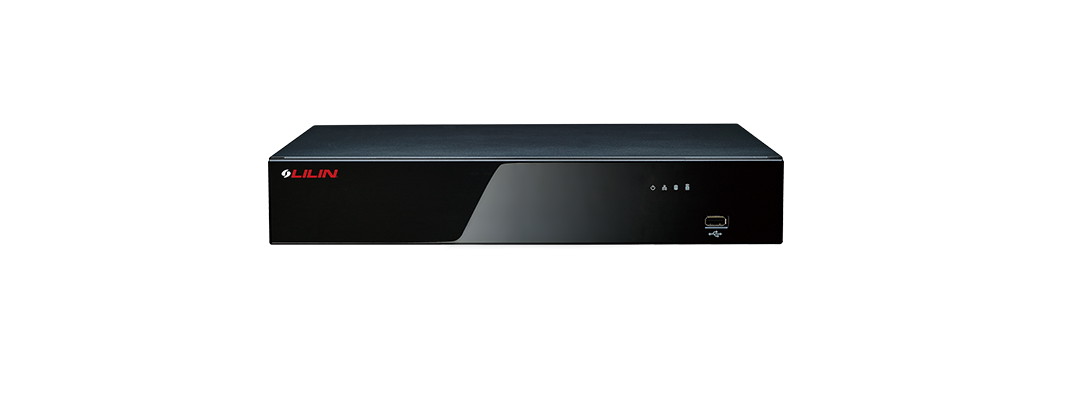

LiLin - DHD6108-1X16TB - 16TB 8-Channel 5MP Hybrid Digital Video Recorder
Product Overview
The LILIN DHD6108-1X16TB is an 8-channel 5-in-1 hybrid DVR designed for intermediate surveillance systems that need expanded camera capacity and long-term recording storage. Pre-installed with a 16TB enterprise surveillance hard drive, it supports legacy analog camera feeds while also allowing integration with modern ONVIF-compliant IP network cameras.
Key Configuration
Model: LILIN DHD6108-1X16TB; product type: 8-channel 5-in-1 hybrid DVR; included storage: 1 x 16TB enterprise surveillance HDD; analog camera support: up to 8 feeds; supported analog formats: AHD, TVI, CVI, and CVBS; IP camera support: ONVIF-compliant network cameras; supported imaging: up to 5MP.
Key Features
• 8-channel hybrid DVR supports larger multi-camera surveillance deployments.
• 5-in-1 design works with AHD, TVI, CVI, CVBS, and ONVIF IP camera sources.
• Pre-installed 16TB enterprise surveillance hard drive provides extended archive depth.
• Supports high-resolution 5MP imaging while preserving existing coax infrastructure.
• Centralized recording design suits intermediate residential, retail, and business security systems.
Technical Context
The DHD6108-1X16TB is intended for users upgrading from analog CCTV while retaining existing cabling. Its hybrid architecture allows analog HD and traditional CVBS cameras to operate alongside ONVIF network cameras, while the 16TB storage configuration supports longer retention across multiple camera feeds.
Installation Notes
Connect the analog and IP cameras required for the system, assign the correct signal type for each channel, and configure recording quality, overwrite behavior, and network settings. Confirm ONVIF camera connectivity and verify storage recognition before final deployment.
| General | |
| Model | DHD6108 |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈ 2.2 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 8 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 120 / 100 FPS 4M 120 / 100 FPS 1080P 240 / 200 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Live View | |
| Output | HDMI 4K，VGA 1080P |
| Split Screen | 1 / 4 / 6 / 8 / 9 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 50 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Maximum Network Camera Input Throughput(Recording) | 64Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 120 FPS, 4M 160 FPS, 3M 120 FPS, 1080P 240 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 8CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Storage & Backup | |
| Internal HDD (Storage) | 1 × 3.5” HDD, 16TB |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio | |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 8 CH, RCA × 8 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network | |
| Network ports | RJ-45 100Mbps × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Interface & Control | |
| Ports | DI × 8 and DO × 1 ( With programmable condition ) |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
