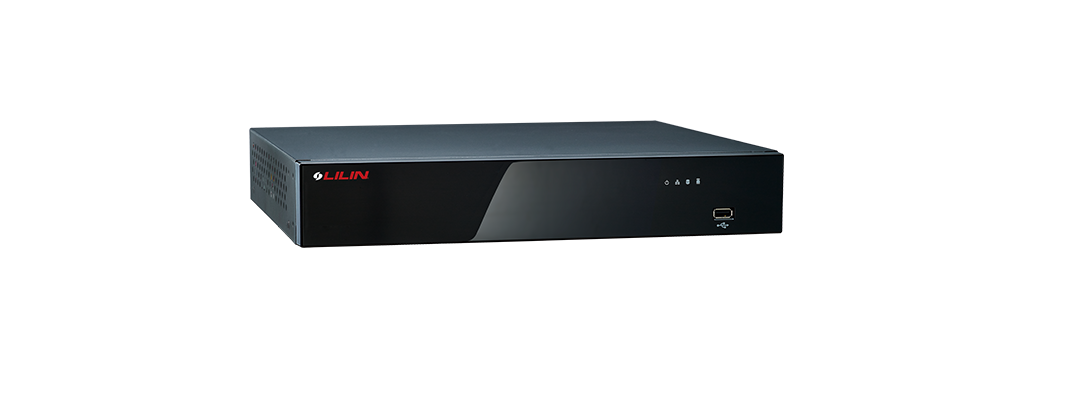

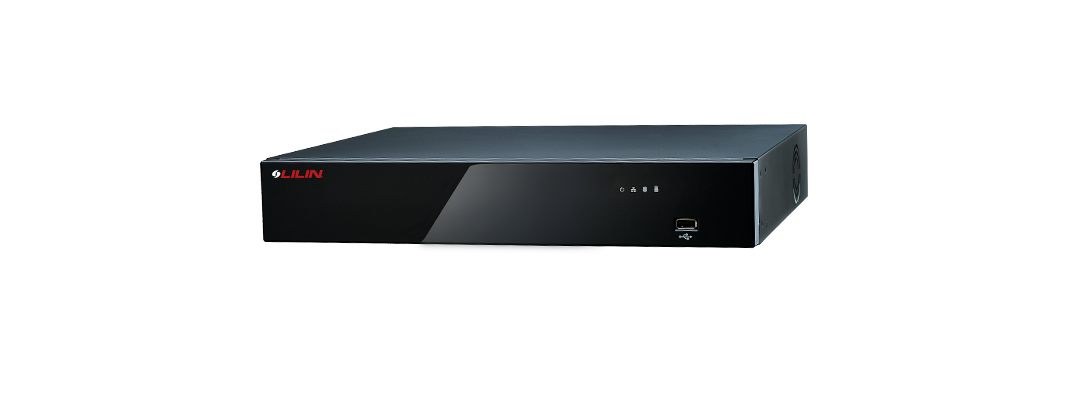

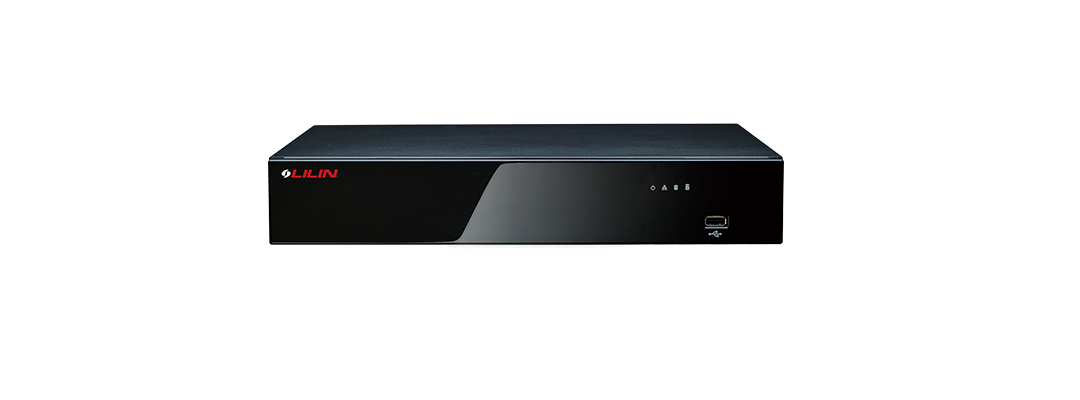

Lilin - DHD6108-1X2TB - 2TB 8 Channel Hybrid DVR

2TB 8CH 5MP H.265 5-in-1 Video Recorder, P2P, UTC, HD-AHD, CVI, TVI, Analog and IP, records up to 5M 120 FPS , 4M 120 FPS , 1080P 240 FPS, Supports 1080P, D1/960H resolution analog cameras BNC. HDMI, VGA output up to 1920×1080P

Part number:
DHD6108-1X2TB
Price:
  • 8 Channel Hybrid DVR
  • ONVIF compatible 5M H.264/H.265 network camera supported
  • UTC AHD/ TVI/ CVI camera supported
  • Up to 12TB HDD supported
  • Remote connection with Navigator Software
  • Mobile phone ( iOS, Android ) solutions provided
  • Support P2P connection (included)
  • Chrome, Edge, Firefox, IE, Opera, Safari supp
Model DHD6108
Supports (Video Input)/Network video /IP video AHD/ TVI/ CVI/ Analog camera / Network camera
Input (Video input) 8 CH
Simulation HD / Analog Camera Input Resolution(Video input) AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H
Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) 5M 120 / 100 FPS 4M 120 / 100 FPS 1080P 240 / 200 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS
Network Camera Resolution(Video input) 5M / 4M / 3M / 1080P / 720P
Network Camera Maximum Input Frame Rate(Video input) Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS
Output HDMI 4K,VGA 1080P
Split Screen 1 / 4 / 6 / 8 / 9 split division, sequence mode, freeze
Digital zoom Up to 64× on live and playback
Network video Format H.264 / H.265
Analog Camera Resolution (Recording) CIF ~ 5M
Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) 5M 50 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS
Maximum Network Camera Input Throughput(Recording) 64Mbps
Network Camera Resolution (Recording) CIF ~ 5M
Network Camera Maximum Recording Frame Rate 5M 120 FPS, 4M 160 FPS, 3M 120 FPS, 1080P 240 FPS
Application/ Recording Mode Continue, Schedule, Event
Recording schedule Each channel 7day × 24 hours time table, recording mode configurable
Alarm event actions Motion grid (20×12, multi-level sensitivities) / DI
Alarm Notification (Recording) Alarm notification iOS、android / E-Mail / FTP / buzzer / DO
Playback Search Alarm event / Operation event / System event / Meta data event / Time search
Playback Display 8CH synchronous playback
Analog Camera Playback Resolution CIF ~ 5M
Network Camera Playback Resolution CIF ~ 5M
Playback Speed Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64
Internal HDD (Storage) 1 × 3.5” HDD, 12TB supported
USB Flash Disk(Backup) Up to 128 GB supported (FAT32)
Network Backup Via HTTP / FTP
Audio Compression G.711 u-law & AAC
Analog Audio Input(Audio) 8 CH, RCA × 8
Audio Output 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz )
Network ports RJ-45 100Mbps × 1
Protocols ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S
Web (Network) Direct internet browser access / Multiple users access
P2P(Network) Support (included)
Mobile Application iOS / Android supported
VMS support Navigator
Backup / Playback (Software) Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback
Ports DI × 8 and DO × 1 ( With programmable condition )
Reports( System ) Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB
Authentication ( System ) User authentication with feature configurable and IP address blocking
Languages Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish
HDD Inspection(System) S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error
Recorded Reserve Time( System ) 1~365days
Time Daylight saving / NTP / External USB GPS time sync
Mouse Mouse click, drag and scroll
Remote Controller IR Remote controller (Optional)
PTZ protocol RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P
UTC UTC AHD/ TVI/ CVI camera supported
USB to RS-232 Record external metadata via USB to RS-232 cable, display at live and playback
CPU ARM Cortex A9 Dual Core
OS Embedded Linux Kernel 4.9
WDT Hardware watchdog timer
CE Yes, EMI Class B
FCC Yes, EMI Class B
Power Supply Adapter DC 12V, 3A, 36W × 1
Operating temperature 0℃ ~ 45℃
Operating humidity 5% ~ 80%
Dimensions 360× 316× 60 mm
Weight ≈ 2.2 kg ( Without hard drive )
