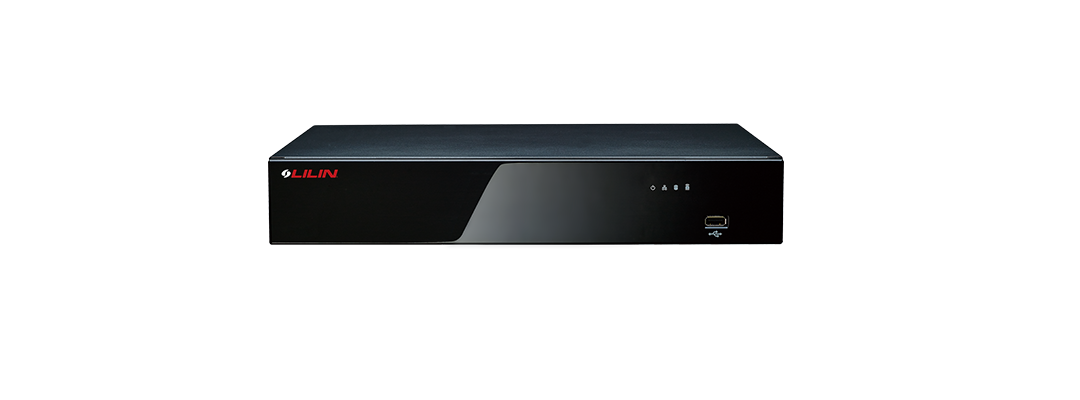

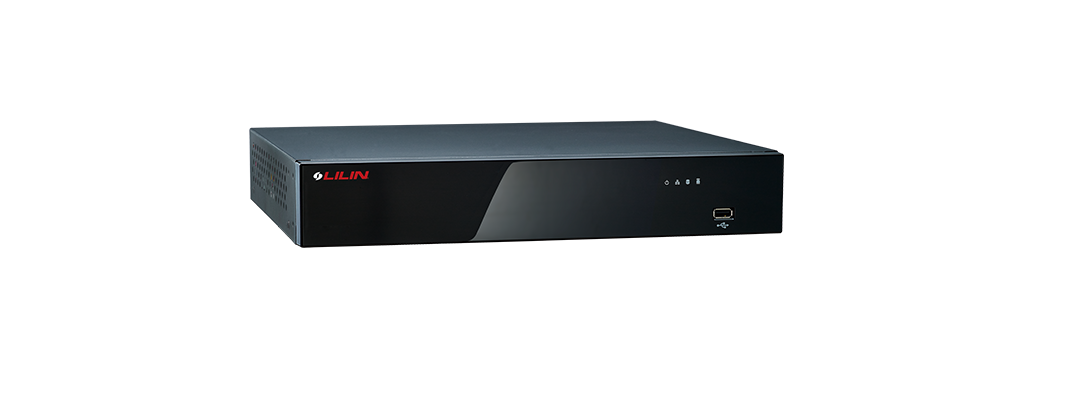

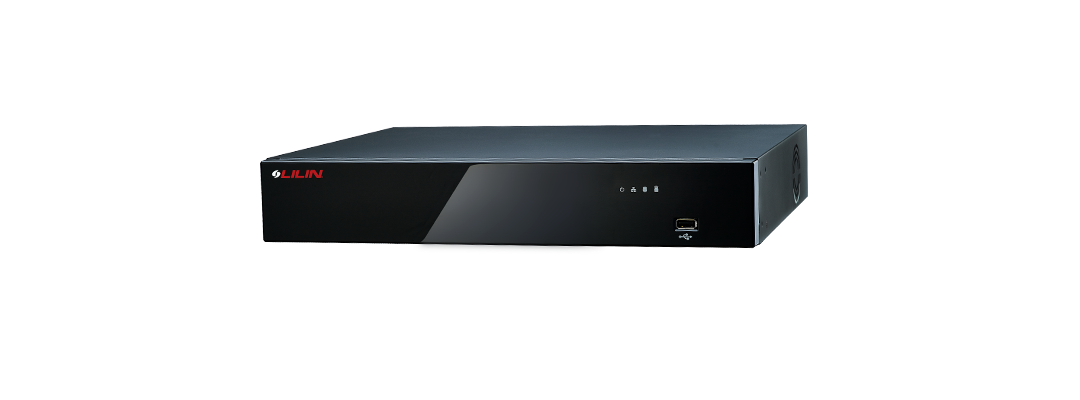

LiLin - DHD6108-1X8TB - 8TB 8-Channel 5MP Hybrid Digital Video Recorder
Product Overview
The LILIN DHD6108-1X8TB is an 8-channel 5-in-1 hybrid DVR designed for users who need expanded camera support with a more cost-efficient storage configuration. Pre-installed with an 8TB hard drive, it supports high-definition recording up to 5MP while integrating analog, AHD, TVI, CVI, and ONVIF-compliant IP cameras in one recording platform.
Key Configuration
Model: LILIN DHD6108-1X8TB; product type: 8-channel 5-in-1 hybrid DVR; included storage: 1 x 8TB HDD; supported resolution: up to 5MP; camera compatibility: standard analog, AHD, TVI, CVI, and ONVIF-compliant IP cameras; video compression: H.265.
Key Features
• 8-channel hybrid DVR supports multi-camera surveillance recording.
• 5-in-1 compatibility accepts analog, AHD, TVI, CVI, and ONVIF IP camera sources.
• Pre-installed 8TB HDD provides a budget-friendly storage configuration.
• Supports up to 5MP high-definition recording across channels.
• H.265 compression helps maximize retention efficiency on the 8TB drive.
Technical Context
The DHD6108-1X8TB provides the same hybrid recording flexibility as the larger-storage configuration while using an 8TB HDD. This makes it suitable for installations that need 8-channel 5MP recording support but do not require the longer archive depth of a 16TB system.
Installation Notes
Connect the required analog and IP cameras, assign the correct signal type for each input, and configure resolution, H.265 compression, and overwrite settings according to the desired retention period. Verify that the 8TB drive is recognized before final deployment.
| General | |
| Model | DHD6108 |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈ 2.2 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 8 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 120 / 100 FPS 4M 120 / 100 FPS 1080P 240 / 200 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Live View | |
| Output | HDMI 4K，VGA 1080P |
| Split Screen | 1 / 4 / 6 / 8 / 9 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 50 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Maximum Network Camera Input Throughput(Recording) | 64Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 120 FPS, 4M 160 FPS, 3M 120 FPS, 1080P 240 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 8CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Storage & Backup | |
| Internal HDD (Storage) | 1 × 3.5” HDD, 8TB |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio | |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 8 CH, RCA × 8 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network | |
| Network ports | RJ-45 100Mbps × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Interface & Control | |
| Ports | DI × 8 and DO × 1 ( With programmable condition ) |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
