Product Overview

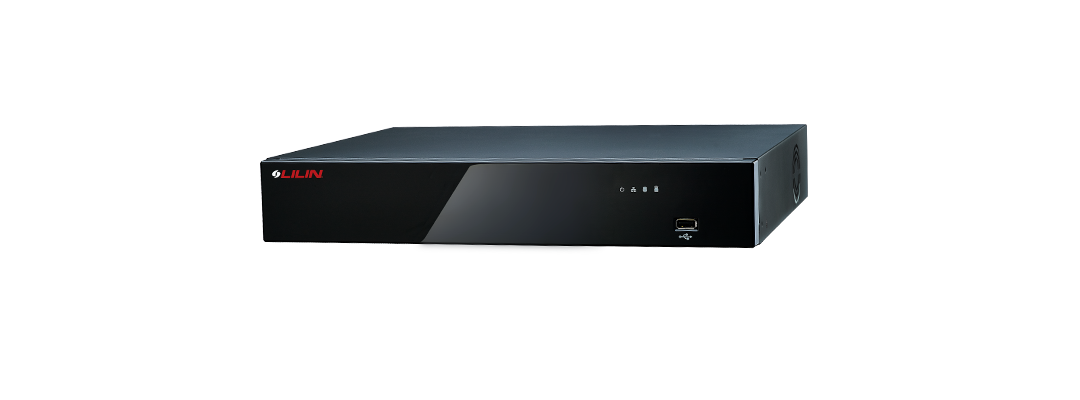

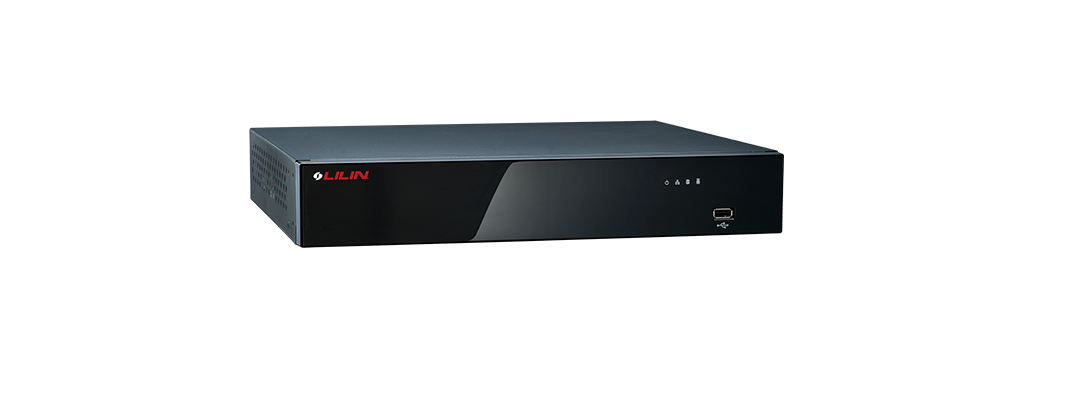

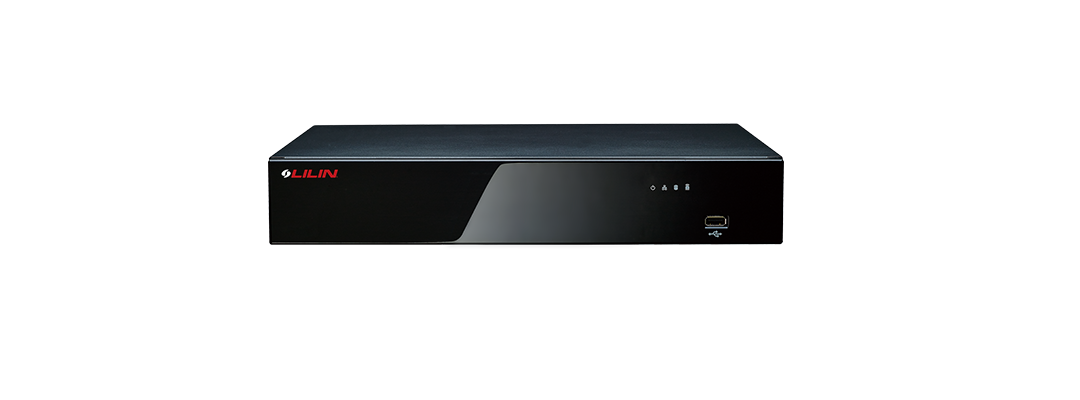

The LILIN DHD6108 is an 8-channel hybrid DVR built for surveillance systems that combine analog HD cameras with ONVIF-compatible IP cameras. It supports multiple coax camera technologies, network camera recording, remote access, mobile viewing, and P2P connectivity for flexible security monitoring.
Key Configuration
Model: LILIN DHD6108; product type: 8-channel hybrid DVR; camera support: UTC AHD, TVI, CVI, and ONVIF-compatible 5MP H.264/H.265 network cameras; storage support: up to 12TB HDD; remote access: Navigator Software, iOS, Android, and P2P connection; browser support: Chrome, Edge, Firefox, IE, Opera, and Safari.
Key Features
• 8-channel hybrid DVR supports expanded multi-camera recording setups.
• Works with UTC AHD, TVI, and CVI camera inputs.
• Supports ONVIF-compatible 5MP H.264/H.265 network cameras.
• Accepts up to 12TB HDD storage for extended video retention.
• Provides remote access through Navigator Software, mobile apps, P2P connection, and major web browsers.
Technical Context
The DHD6108 is intended for installations that need hybrid recording across analog HD and IP camera sources. Its 8-channel capacity makes it suitable for larger residential, retail, and small business systems that require compatibility with existing coax cameras while adding support for ONVIF network devices.
Installation Notes
Install a compatible HDD up to the supported capacity, connect the required AHD, TVI, CVI, or network cameras, and configure each channel for the appropriate signal type. Verify network settings, P2P access, browser access, and mobile viewing before final deployment.
| General | |
| Model | DHD6108 |
| CPU | ARM Cortex A9 Dual Core |
| OS | Embedded Linux Kernel 4.9 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 3A, 36W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈ 2.2 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 8 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD/TVI 5MP, CVI 4MP, 1080P and analog camera D1/960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 120 / 100 FPS 4M 120 / 100 FPS 1080P 240 / 200 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Network Camera Resolution(Video input) | 5M / 4M / 3M / 1080P / 720P |
| Network Camera Maximum Input Frame Rate(Video input) | Single Channel 5M 15 FPS / 4M 20 FPS / 3M 15 FPS / 1080P 30 FPS |
| Live View | |
| Output | HDMI 4K，VGA 1080P |
| Split Screen | 1 / 4 / 6 / 8 / 9 split division, sequence mode, freeze |
| Digital zoom | Up to 64× on live and playback |
| Network video Format | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Simulation HD / Analog Camera Maximum Recording Frame Rate( Recording ) | 5M 50 / 50 FPS 4M 60 / 50 FPS 1080P 120 / 100 FPS 720P 240 / 200 FPS 960H 240 / 200 FPS |
| Maximum Network Camera Input Throughput(Recording) | 64Mbps |
| Network Camera Resolution (Recording) | CIF ~ 5M |
| Network Camera Maximum Recording Frame Rate | 5M 120 FPS, 4M 160 FPS, 3M 120 FPS, 1080P 240 FPS |
| Application/ Recording Mode | Continue, Schedule, Event |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / DI |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Meta data event / Time search |
| Playback Display | 8CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 5M |
| Playback Speed | Fast rewind 2×~64× / Fast forward 2×~64× / Slow motion 1/2~1/64 |
| Storage & Backup | |
| Internal HDD (Storage) | 1 × 3.5” HDD, 12TB supported |
| USB Flash Disk(Backup) | Up to 128 GB supported (FAT32) |
| Network Backup | Via HTTP / FTP |
| Audio | |
| Audio Compression | G.711 u-law & AAC |
| Analog Audio Input(Audio) | 8 CH, RCA × 8 |
| Audio Output | 1 CH, RCA × 1 ( 0.7Vp-p, 300 Hz to 3KHz ) |
| Network | |
| Network ports | RJ-45 100Mbps × 1 |
| Protocols | ARP / TCP/IP / UDP / HTTP /HTTPS / SMTP / FTP / DNS/ DDNS / PPPoE / NTP / DHCP/ RTSP/ RTP/ RTCP/ Onvif Profile S |
| Web (Network) | Direct internet browser access / Multiple users access |
| P2P(Network) | Support (included) |
| Mobile Application | iOS / Android supported |
| VMS support | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple DVRs file download and multi-channel playback |
| Interface & Control | |
| Ports | DI × 8 and DO × 1 ( With programmable condition ) |
| Mouse | Mouse click, drag and scroll |
| Remote Controller | IR Remote controller (Optional) |
| PTZ protocol | RS-485 OUT × 1, MLP1、MLP2 、PELCO D、PELCO P |
| UTC | UTC AHD/ TVI/ CVI camera supported |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Chinese( Traditional ), Chinese( Simplified ), English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recorded Reserve Time( System ) | 1~365days |
| Time | Daylight saving / NTP / External USB GPS time sync |
| CE | Yes, EMI Class B |
| FCC | Yes, EMI Class B |
