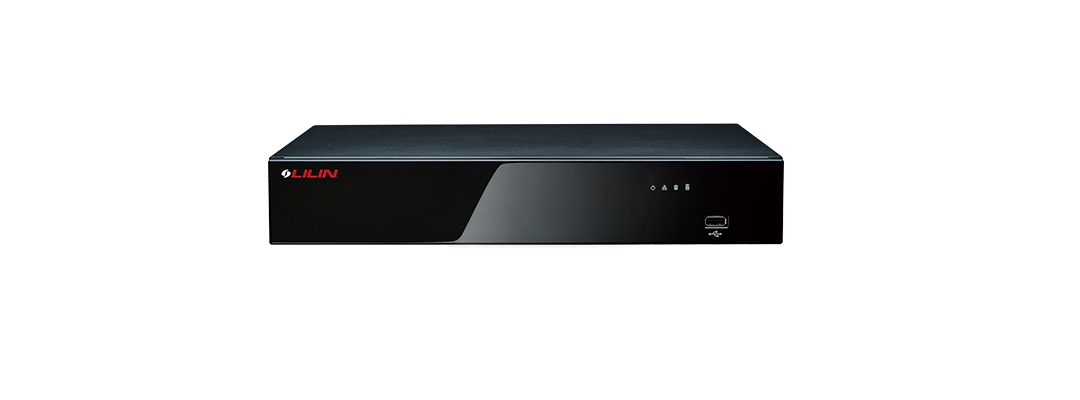

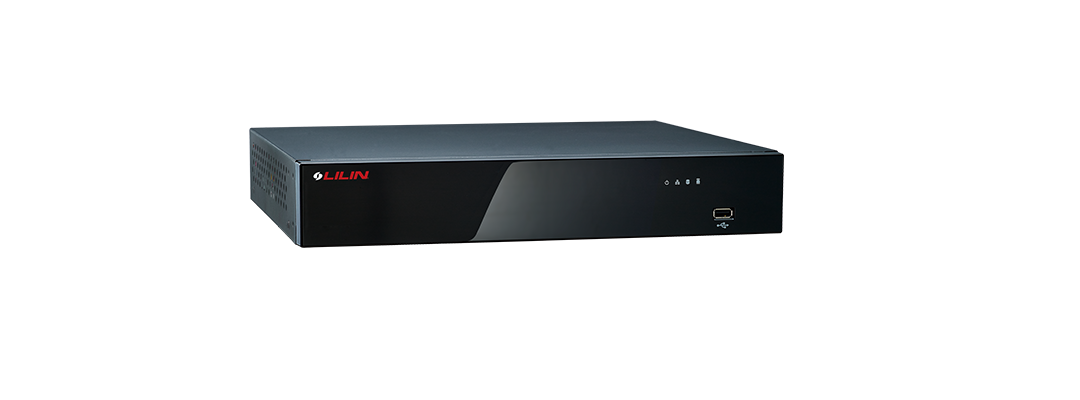

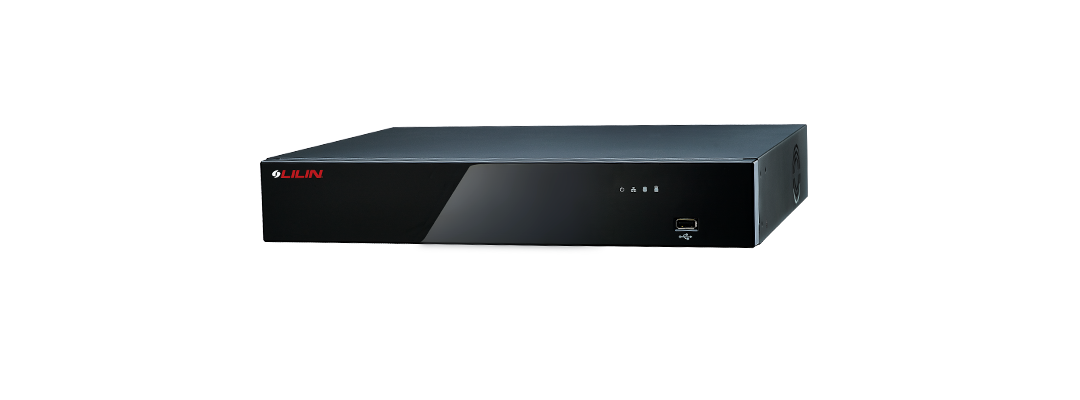

LiLin - DHD6216A-1X16TB - 16TB 16CH 4K Standalone Network Video Recorder

Product Overview

The LILIN DHD6216A-1X16TB is a 16-channel hybrid DVR designed for larger surveillance systems that need both 4K network IP camera support and high-definition analog camera compatibility. Pre-installed with a 16TB surveillance-grade hard drive, it provides high-capacity recording for multi-camera deployments.

Key Configuration

Model: LILIN DHD6216A-1X16TB; product type: 16-channel hybrid DVR; included storage: 1 x 16TB surveillance HDD; storage architecture: 2 x 3.5" SATA bays; maximum storage capacity: up to 16TB total; camera support: up to 16 network IP cameras or analog UTC inputs; resolution support: up to 4K for network IP cameras and up to 5MP for AHD, TVI, and CVI analog cameras; alarm I/O: 16 inputs / 1 output; audio support: 16-channel synchronous recording.

Key Features

• 16-channel hybrid DVR supports larger commercial, office, and estate surveillance systems.
• Supports 4K network IP cameras for high-detail monitoring areas.
• Works with up to 5MP AHD, TVI, and CVI analog camera inputs.
• Pre-installed 16TB surveillance HDD provides maximum supported onboard storage capacity.
• Includes P2P cloud setup, Navigator VMS support, browser access, 16 alarm inputs, and 16-channel synchronous audio recording.

Technical Context

The DHD6216A-1X16TB is intended for installations that require higher channel capacity and a bridge between analog HD infrastructure and modern IP video. Its 4K IP support makes it suitable for detailed monitoring points, while hybrid analog compatibility allows existing coax-based camera systems to remain in service.

Installation Notes

Connect analog or IP cameras according to the required channel layout, configure each input type, and verify the installed 16TB drive before recording. Confirm P2P, browser, and Navigator VMS access during setup before final deployment.
