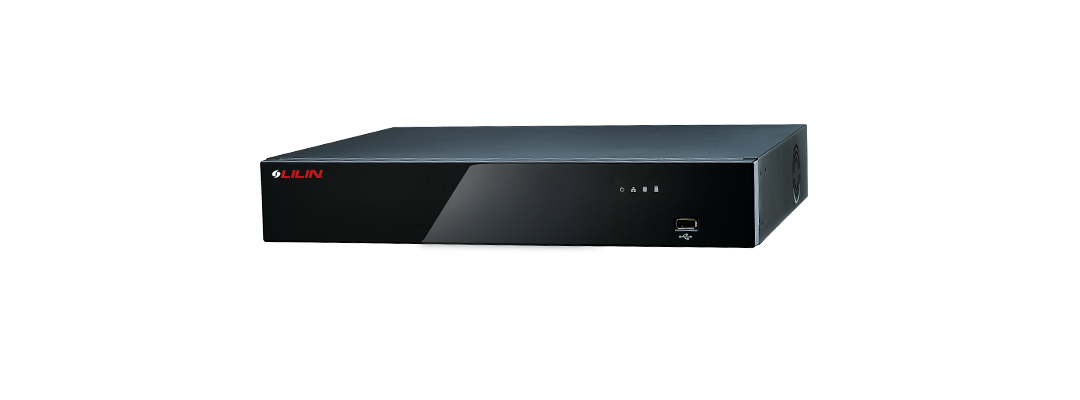

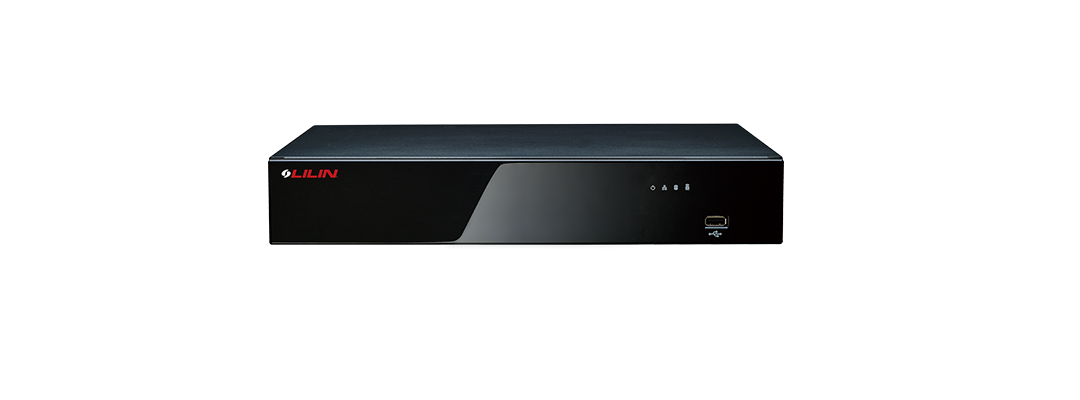

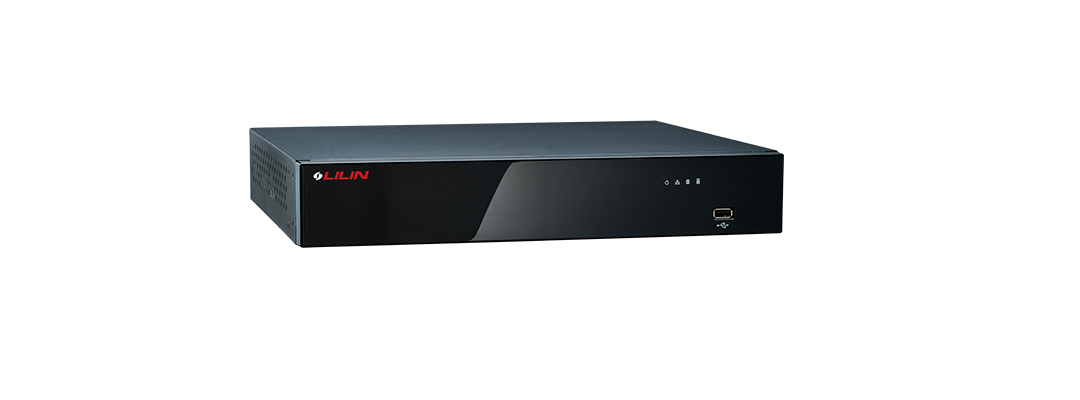

LiLin - DHD6216A - 16 CH 4K Standalone Network Video Recorder
Product Overview
The LILIN DHD6216A is a 16-channel 4K standalone network video recorder designed for larger surveillance systems that require broad camera support and centralized recording. It supports hybrid DVR operation, ONVIF-compatible network cameras, UTC AHD/TVI/CVI cameras, remote access, mobile viewing, and high-capacity HDD storage.
Key Configuration
Model: LILIN DHD6216A; product type: 16-channel 4K standalone network video recorder / hybrid DVR; camera support: UTC AHD, TVI, CVI, and ONVIF-compatible 5MP H.264/H.265 network cameras; storage support: up to 16TB HDD; remote access: Navigator Software, iOS, Android, and P2P connection; browser support: Chrome, Edge, Firefox, IE, Opera, and Safari.
Key Features
• 16-channel recording platform supports larger multi-camera surveillance deployments.
• Hybrid DVR functionality works with UTC AHD, TVI, and CVI camera inputs.
• Supports ONVIF-compatible 5MP H.264/H.265 network cameras.
• Accepts up to 16TB HDD storage for extended video retention.
• Provides remote access through Navigator Software, mobile apps, P2P connection, and major web browsers.
Technical Context
The DHD6216A is intended for surveillance systems that need higher channel capacity and flexible camera compatibility. Its support for analog HD formats and ONVIF network cameras allows existing coax-based infrastructure to operate alongside IP camera expansion.
Installation Notes
Install compatible HDD storage up to the supported capacity, connect the required analog and IP cameras, and configure each channel for the correct camera signal type. Verify recording settings, P2P access, browser access, mobile viewing, and Navigator Software connectivity before final deployment.
| General | |
| Model | DHD6216A |
| CPU | ARM Cortex A53 Quad Core |
| OS | Embedded Linux Kernel 4.19 |
| WDT | Hardware watchdog timer |
| Power Supply | Adapter DC 12V, 5A, 60W × 1 |
| Operating temperature | 0℃ ~ 45℃ |
| Operating humidity | 5% ~ 80% |
| Dimensions | 360× 316× 60 mm |
| Weight | ≈ 2.4 kg ( Without hard drive ) |
| Warranty | 2 Years |
| Video Input | |
| Supports (Video Input)/Network video /IP video | AHD/ TVI/ CVI/ Analog camera / Network camera |
| Input (Video input) | 16 CH |
| Simulation HD / Analog Camera Input Resolution(Video input) | AHD / TVI 5MP, CVI 4MP, 1080P and analog camera D1 / 960H |
| Simulation HD / Analog Camera Maximum Input Frame Rate (Video input) | 5M 240 / 200 FPS, 4M 240 / 200 FPS, 1080P 480 / 400 FPS, 720P 480 / 400 FPS, 960H 480 / 400 FPS |
| Network Camera Resolution(Video input) | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Network Camera Maximum Input Frame Rate(Video input) | 480 FPS |
| Live View | |
| Output | HDMI 4K, VGA 1080P |
| Split Screen | 1 / 4 / 8 / 9 / 12 / 13 / 16 split division, sequence mode, freeze, alarm display |
| Digital zoom | Up to 64× on live and playback |
| Privacy Masking | Each channel 4 privacy mask supported |
| Video Compression | H.264 / H.265 |
| Recording | |
| Analog Camera Resolution (Recording) | CIF ~ 5M |
| Analog HD / Analog Camera Maximum Input Frame Rate | 5M 100 / 100 FPS, 4M 120 / 100 FPS, 1080P 240 / 200 FPS, 720P 480 / 400 FPS, 960H 480 / 400 FPS |
| Maximum Network Camera Input Throughput(Recording) | 96Mbps |
| Network Camera Resolution (Recording) | 4K、5M、4M、3M、1080P、1.3M、1M、960H、D1、VGA、CIF |
| Network Camera Maximum Recording Frame Rate | 480 FPS |
| Application/ Recording Mode | Manual, schedule (continue, event, none) |
| Recording schedule | Each channel 7day × 24 hours time table, recording mode configurable |
| Alarm event actions | Motion grid (20×12, multi-level sensitivities) / network camera event / DI |
| Metadata options | POS RFID AND PIN CONTROLLER BARCODE SCANNER GPS |
| Alarm Notification (Recording) | Alarm notification iOS、android / E-Mail / FTP / buzzer / DO |
| Playback | |
| Playback Search | Alarm event / Operation event / System event / Time search |
| Playback Display | 16CH synchronous playback |
| Analog Camera Playback Resolution | CIF ~ 5M |
| Network Camera Playback Resolution | CIF ~ 4K |
| Playback Speed | Fast rewind 2× ~ 64× / Fast forward 2× ~ 64× / Slow motion 1/2 ~ 1/16 |
| Storage & Backup | |
| Internal HDD (Storage) | 2 × 3.5" HDD (Up to 16TB supported) |
| USB Flash Disk(Backup) | Up to 128 GB supported |
| Network Backup | Via HTTP / FTP / Network Places |
| Audio | |
| Audio Compression | 16 CH, G.711 u-law 8K or AAC( from Network Camera ) |
| Analog Audio Input(Audio) | 16 CH, RCA × 8, D-Sub 15 x 1 |
| Audio Output | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Network Camera Two Way Audio / IP camera 2-way audio | Yes |
| Network | |
| Network ports | RJ-45 Gigabit Ethernet × 2 |
| Protocols | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S / ONVIF Profile G |
| Web (Network) | Direct internet browser access / Multiple users access |
| Mobile Application | iOS / Android supported |
| P2P(Network) | APP scan QR Code / UID connection |
| RTSP service | RTP UDP/ RTSP TCP supported |
| IPScan / WS-Discovery( Network ) | WS-Discovery and IP Scan, automatically quick IP address setup for network cameras |
| Network | Live / playback / backup / menu configuration / event log |
| VMS | Navigator |
| Backup / Playback (Software) | Remote Playback Manager / Backupman, multiple NVRs file download and multi-channel playback |
| Digital watermark (Video tamper resistance) | support digital watermark feature to ensure the backup footage is not got forged and modified |
| Interface & Control | |
| Ports | DI × 16 and DO × 1 ( With programmable condition ) |
| PTZ protocol | RS-485 MLP1、MLP2 、PELCO D、PELCO P / HTTP / ONVIF |
| USB to RS-232 | Record external metadata via USB to RS-232 cable, display at live and playback |
| RS-485 | One set for PTZ control |
| Remote Controller | Remote controller addressable up to 255 DVRs (Optional) |
| Mouse | Mouse click, drag and scroll |
| Microphone | USB Mic (Optional) |
| System | |
| Reports( System ) | Alarm event, operation, configuration and system execution log full reports exporting over HTTP or USB |
| Authentication ( System ) | User authentication with feature configurable and IP address blocking |
| Languages | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| HDD Inspection(System) | S.M.A.R.T monitoring / File system de-fragmentation/ IO read write error |
| Recording day | Automatic recording day calculator |
| Time | Daylight saving / NTP Client / NTP Server / External USB GPS time sync |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
