LiLin - DS362 - 3D ToF Depth Sensing IP Camera

Product Overview

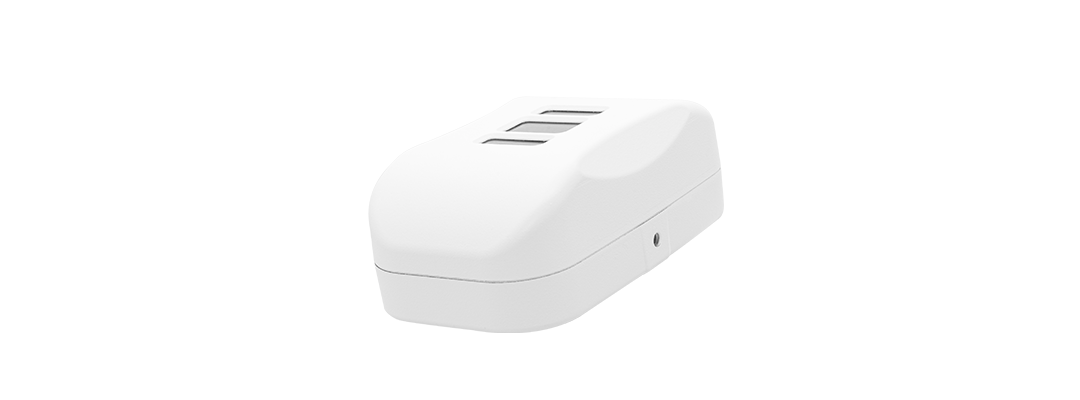

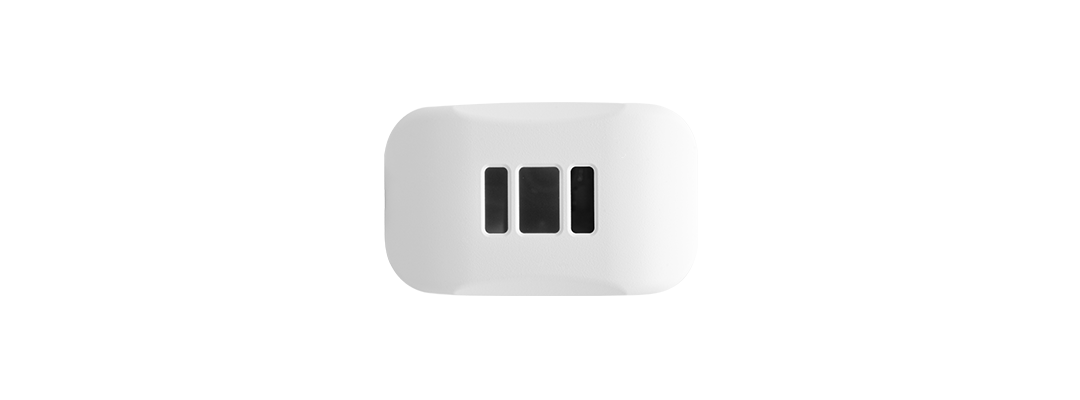

The LILIN DS362 is a 3D ToF depth sensing IP camera designed to capture depth information for measurement, identification, and object-volume estimation. Using Time of Flight technology, it provides 3D dimensional data where traditional 2D imaging may struggle with distance discrimination or overlapping objects.

Key Configuration

Model: LILIN DS362; product type: 3D ToF depth sensing IP camera; sensor: 0.3MP ToF sensor; video compression: VGA H.264/AVC high-performance compression; streaming: simultaneous H.264 and Motion JPEG encoded streams; audio: 1-way audio supported; digital I/O: 1 output; protection: IP66 rain and dust resistant; AI support: EDGE AI.

Key Features

• 3D Time of Flight sensing captures depth information for measurement and identification tasks.
• 0.3MP ToF sensor supports object detection and volume-estimation applications.
• Simultaneous H.264 and Motion JPEG streams provide flexible video integration.
• IP66 rain and dust resistance supports deployment in demanding environments.
• EDGE AI support expands automation and intelligent sensing capabilities.

Technical Context

Time of Flight technology calculates 3D image data by measuring distance, helping distinguish object position and volume more effectively than standard 2D imaging. The DS362 is suitable for industrial automation, medical environments, collision prevention, measurement, and unattended identification workflows.

Installation Notes

Mount the DS362 with a clear view of the target sensing area and configure streaming, AI, and digital output settings according to the application. Verify ToF depth detection accuracy after installation, especially where object overlap, distance measurement, or environmental exposure may affect performance.
