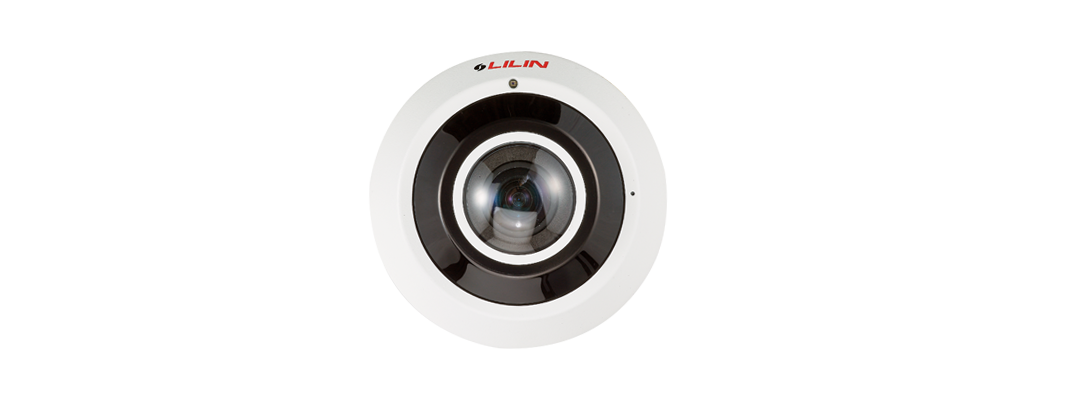

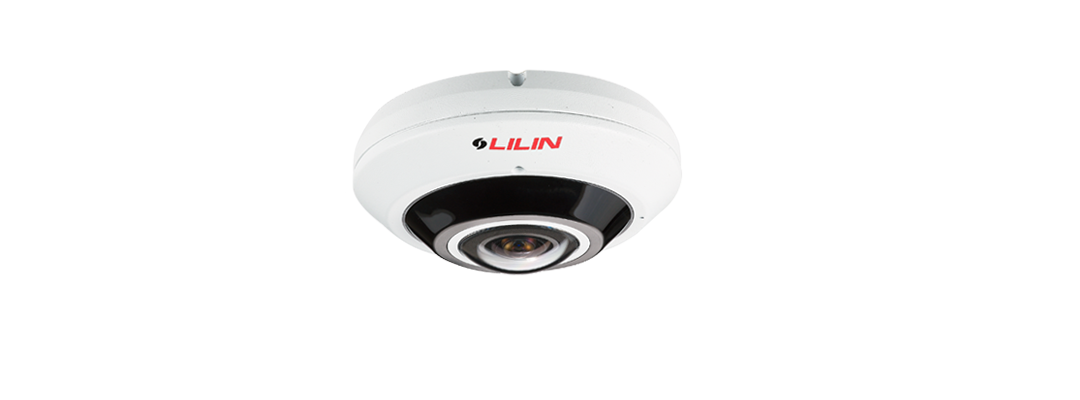

LiLin - F2R36C2IM - 12MP Day & Night Fixed IR Vandal Resistant Panoramic IP Camera
Product Overview
The LILIN F2R36C2IM is a 12MP day and night fixed IR vandal resistant panoramic IP camera designed for wide-area surveillance with high-resolution imaging. It combines panoramic coverage, client-side dewarping support, smart event detection, and infrared illumination for demanding indoor or outdoor security applications.
Key Configuration
Model: LILIN F2R36C2IM; product type: panoramic IP camera; image sensor: 12 megapixel CMOS; video compression: H.265/HEVC and H.264/AVC; streams: simultaneous H.265 and H.264 encoded streams; IR range: up to 20m; audio: built-in highly sensitive microphone and 2-way audio support; digital I/O: 1 input and 1 output; protection: IP67 rain and dust resistant; ONVIF support: Profile S and Profile T.
Key Features
• 12MP CMOS image sensor delivers high-resolution panoramic surveillance coverage.
• H.265/HEVC and H.264/AVC compression support efficient high-performance video streaming.
• IR illumination provides radiant distance up to 20m for night monitoring.
• Client-side dewarping and digital PTZ support improve panoramic viewing flexibility.
• Tampering, motion, and network-loss detection support smart security event response.
Technical Context
The F2R36C2IM supports smart H.264/H.265, simultaneous encoded streams, 3D noise reduction using MCTF, 2D WDR, IVS, SMART events, and day/night operation with a removable IR cut filter. Certified ImmerVision support with RPL code C9VVT and client-side dewarping make it suitable for panoramic monitoring where operators need a broad view with corrected display options.
Installation Notes
Install the F2R36C2IM where its panoramic field of view can cover the required scene without major obstructions. Configure dewarping, digital PTZ, audio, IVS, event detection, and IR settings after mounting, then verify image quality, night coverage, and network-loss or tampering alerts under real operating conditions.
| General | |
| Model | F2R36C2IM |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 |
| Dimensions | Ø120 × 58.8 mm |
| Weight | 500g |
| Casing Material | Aluminum alloy |
| Warranty | 3 Years |
| Camera | |
| Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F2.2 ; B/W : 0.09 Lux at F2.2 |
| Focal Length | 1.2mm |
| Iris | F2.2 |
| Iris Control | Fixed IRIS |
| Angle of View | 185° (H) 185° (V) 185° (D) |
| Pick Up Element | 1/1.7" CMOS image sensor |
| Effective pixels | 4072 (H) × 3046 (V) = 12,403,312 (Pixels) |
| Illumination | |
| Peak wavelength | 850nm |
| Beam Spread | 90° |
| Max IR distance | 20M |
| Approvals | |
| CE | Yes, EMI CLASS B |
| FCC | Yes, EMI CLASS B |
| Client Requirements | |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Audio & Alarm | |
| Audio Input / Output | Mono, 1.98 Vp-p , 2.2KΩ , Terminal Block |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC,450mW/300mA,450mW), Terminal block |
| Video | |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Video bitrate | 128Kbps – 12Mbps; Frame rate and bit rate controllable on-the-fly; VBR / CBR / GOP supported, Fixed bitrate, Smart H.264/H.265 |
| Resolution | 9M (3008 x 3000), 8M (2848 x 2832), 7M(2656 x 2656), 6M(2464 x 2464), 5M(2240 x 2240), 4M(2016 x 2000), 3M(1760 x 1744), 2M(1440 x 1440), 1M(1024 x 1024), 736 x 720, 480 x 480, 352 x 240 |
| Maximum Frame Rate | up to 25 fps @ 3008 × 3000 |
| Scanning System | Progressive Scan |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| OSD | Position configurable text overlay for date, time, camera ID, event status and watermark with customizable user demand data |
| Video Display | LILIN Universal ActiveX , LILIN Java Applet |
| Watermark | BMP logo |
| Image | |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Back Light Compensation | Yes |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 42 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness |
| EV (Exposure Value) | Adjustable |
| Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption, DDNS via HTTPS |
| Authentication | Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Max number of online users | 10 simultaneous users |
| Integration | |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| Video Management | ONVIF Profile S / ONVIF Profile T / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at website |
| Languages | English, Traditional Chinese, Simplified Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| Storage | |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| SD Card Compatible List | Micron - 32GB,64GB,128GB,256GB,512GB, 1TB (SDXC, U1, C10) Transcend - 4GB SD,8GB SDHC,32GB SDHC C10,128GB SDXC C10 SanDisk - 8GB SDHC, 32GB, 64GB, 128GB SDHC C10 Kingston - 64GB SDXC C10 |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Events | |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push Service notification |
| Log | Event & operation log & IVS event log |
| Schedule | Support holiday list |
| Network & System | |
| Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 816MHz, 512MB DDR3L, 256MB flash memory |
| Network OS | Embedded Linux 3.10 |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , ONVIF Profile T, SDDP, Bonjour , 802.1x, SSL/TLS |
| Environment & Power | |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 9.0W / PoE, 10.6W |
