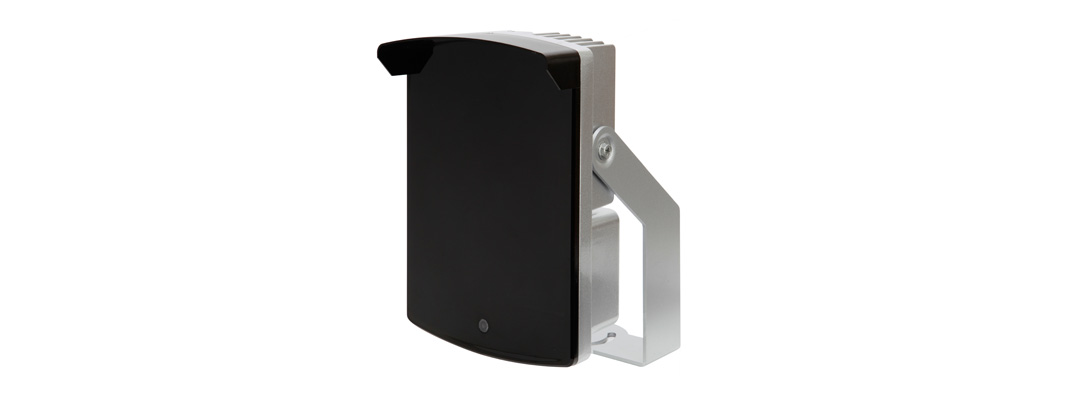

Lilin - IM05108 - IR Infrared Panel Illuminator with Radiant Distance of 250m, 10 Degree Beam, 850nm, AC100-240V, 42W, IP67
Lilin - IM05108 - IR Infrared Panel Illuminator with Radiant Distance of 250m, 10 Degree Beam, 850nm, AC100-240V, 42W, IP67
Part number:
IM05108
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

IM05108 is an 850nm wave length infrared illuminator which provides infrared light to the distance up to 250M for cameras. IP67 rating of IM05108 allows outdoor use. IM05108 is adjustable for its infrared LEDs radiant distance and able to interface with cameras for synchronized video and infrared signals.



Features:

  • IR Infrared Panel Illuminator with Radiant Distance of 250m, 10 Degree Beam, 850nm,  AC100-240V, 42W, IP67
  • Radiant distance up to 250 / 200 / 150m
  • IP 67 rated aluminum housing
ModelIM05108
Power inputAC100-240V
Max IR distance250m
IP RatingIP67
Power Consumption42W
Infrared LED Wave Length850nm
Infrared LED Angle10°
Infrared LED Quantity24 Units
Infrared LED Power OnSensor Auto Control, Adjustable Control Point
MountingCeiling & Wall
Material/ ConstructionAluminum & Polycarbonate
Operating temperature-40°C - +50°C
DimensionsMain Body: 172mm(W) x 242mm(H) x 102.5mm(D), Bracket: 165mm(W) x 192.5mm(H) x 132mm(D)
Weight2100g
