LiLin - IM57114AE - 100 Meter PT White LED Illuminator
Product Overview

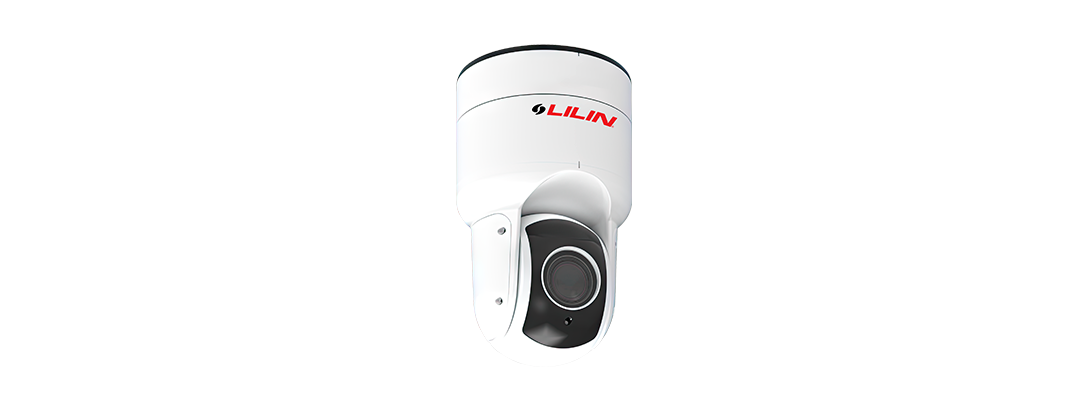

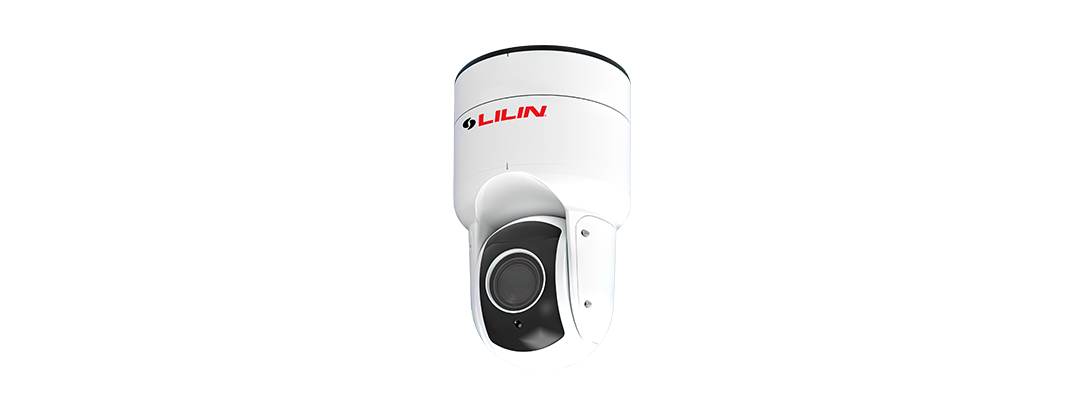

The LILIN IM57114AE is a 100 meter PT white LED illuminator designed for long-range visible-light illumination in outdoor surveillance and searchlight applications. Equipped with a high-power laser LED module and ultra-white 6500K LED output, it provides flexible spotlight control with pan and tilt movement for directional coverage.
Key Configuration
Model: LILIN IM57114AE; product type: PT white LED illuminator; radiant distance: up to 100m; light source: ultra-white 6500K LED; LED module: high-power laser LED module; pan range: 360° endless panning; tilt range: up to 240°; control: remote spotlight on/off and illumination position adjustment; protection: IP67 rain and dust resistant.
Key Features
• Provides visible white-light illumination up to 100m for long-range surveillance scenes.
• Ultra-white 6500K LED output supports bright, natural-looking nighttime visibility.
• High-power laser LED module delivers strong spotlight performance.
• Remote control supports spotlight on/off switching and illumination position adjustment.
• 360° endless panning, up to 240° tilt, and IP67 protection support flexible outdoor use.
Technical Context
The IM57114AE is built for applications where visible illumination is preferred over infrared lighting, such as outdoor surveillance, searchlighting, perimeter response, and specialized monitoring operations. Its pan/tilt movement enables operators to direct the light toward changing areas of interest rather than relying on a fixed beam.
Installation Notes
Mount the IM57114AE with a clear mechanical range for panning and tilting, and align its spotlight coverage with the monitored area. After installation, test remote on/off control, illumination positioning, night visibility, weather exposure, and possible glare toward cameras, windows, roads, or occupied areas.
| General | |
| Model | IM57114AE |
| Mount Type | Installed with Mounting Bracket |
| IP Rating | IP67 |
| Vandal Resistant Rating / IK Rating | IK10 (Casing) |
| Regulatory approvals | CE, FCC |
| Casing Material | Aluminum alloy & Polycarbonate |
| Color | White |
| Dimensions | Ø184 × 368(H) mm |
| Weight | 6000g |
| Illuminator Light | |
| Maximum Radiant Distance | 100m |
| Illuminator Light - Wave Length | Ultra White 6500K |
| Illuminator Light - Beam Angle | 1.6° – 11° |
| Illuminator Light - Type | High power Laser LED module |
| Illuminator Light - Light intensity | 100,000 Lux ±10% @3.5m (1.6°) |
| PTZ | |
| Panning Range | 360° Endless |
| Panning Speed | Manual Approx. 0.5°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s |
| Tilting Range | -30° – +210° |
| Tilting Speed | Manual Approx. 0.5°/s – 120°/s 8 Steps, Preset Approx. 1°/s – 300°/s |
| Web PT Control | Pan, tilt, absolute position |
| Environment & Power | |
| Starting Temperature | -10°C – +60°C (14°F – 140°F) |
| Operating temperature | -25°C – +60°C (-13°F – 140°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 5% – 90% RH |
| Power Supply | DC 21V – 35V / PoE++ (IEEE 802.3bt compliant) |
| Power Consumption | DC 24V, 29W max. / PoE++, 31W (Still, Illumination OFF) DC 24V, 45W max. / PoE++, 47W (Motor Drive & Illumination On) |
| Security | |
| Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication |
| Filtering | Yes |
| User accounts | 10 user accounts available |
| Network & System | |
| Maintenance | Firmware update via HTTP and IP Scan; Firmware available at web site |
| Languages | " English, Traditional Chinese, Simplified Chinese, Italian, Hungarian, Korean, French, Turkish, Spanish, Japanese" |
| Ethernet | 10/100 Mbps Base-T, RJ-45 |
| Protocols | IPv4, TCP, HTTP, HTTPS, NTP, DHCP, Telnet |
| Web browser | Microsoft® Edge, Chrome, Firefox |
