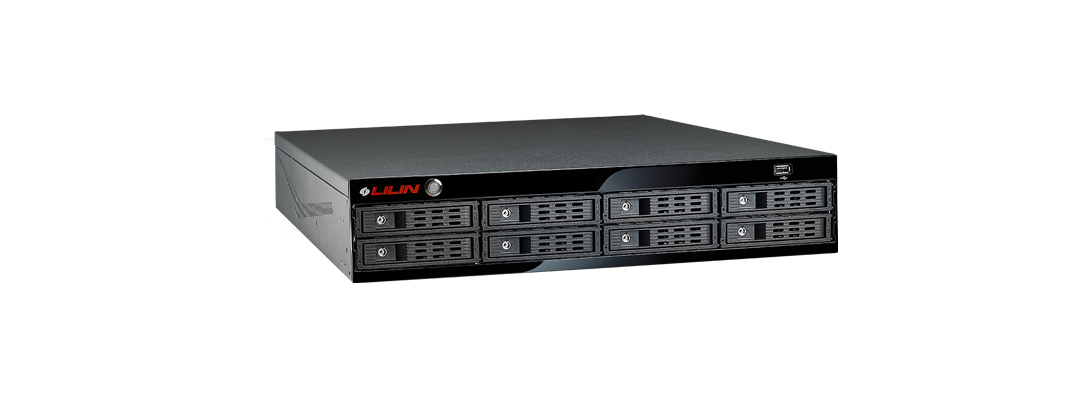

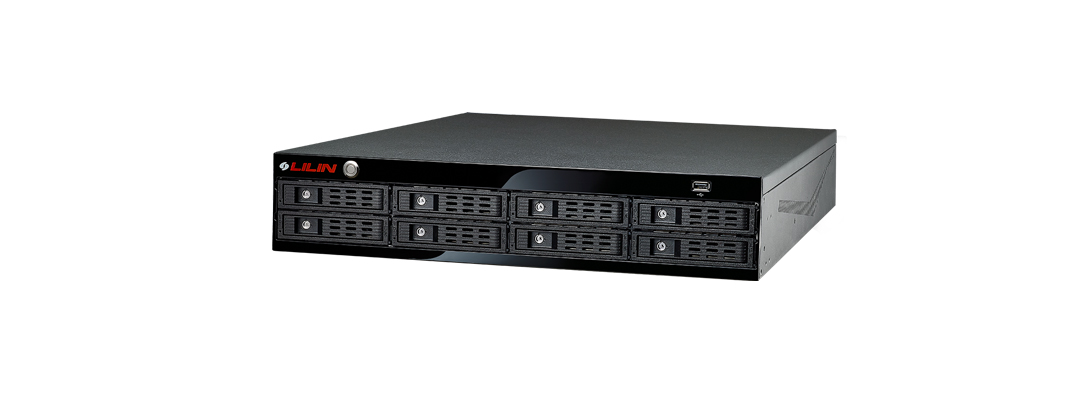

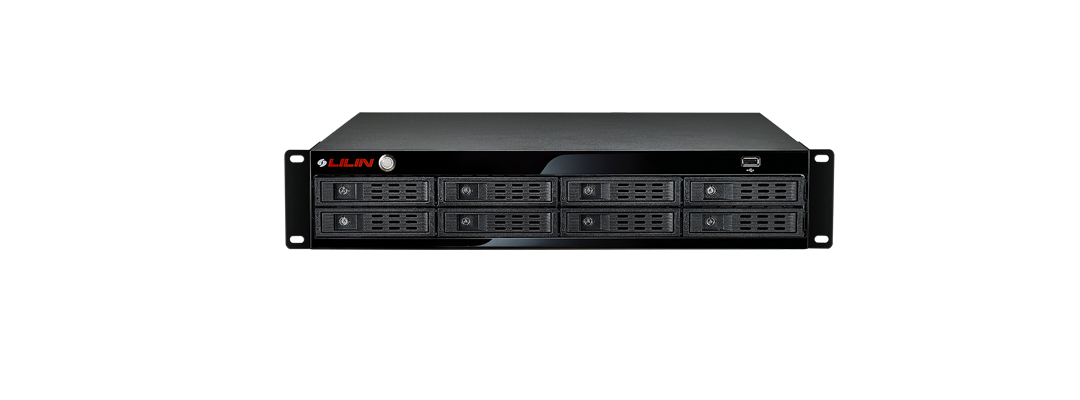

LiLin - NAV08630-2X12TB - 24TB 72-Channel NAV Recorder
Product Overview
The LILIN NAV08630-2X12TB is a NAV Recorder configured with 2 x 12TB hard drives for high-capacity IP video surveillance recording and centralized camera management. It supports LILIN IP cameras, PTZ cameras, IP cameras, DVRs, and NVRs, with recording support for up to 72 channels at resolutions including 1080P, 3MP, 4MP, 5MP, 8MP, and 12MP.
Key Configuration
Model: LILIN NAV08630-2X12TB; product type: NAV Recorder; included storage: 2 x 12TB HDDs; video formats: H.265, H.264, and MJPEG; recording capacity: up to 72 channels with separate license purchase; display support: 64CH display with dual-screen 480P at 15fps; storage architecture: up to 8 hot-swap 3.5" SATA HDDs; RAID support: 0, 1, 5, 6, 10, 50; network interface: dual 2.5GbE RJ-45 ports; form factor: 2U rackmount.
Key Features
• Includes 2 x 12TB hard drives for expanded surveillance recording storage.
• Supports H.265, H.264, and MJPEG video formats for flexible recording workflows.
• Records up to 72 channels with licensing for large surveillance deployments.
• Supports up to 8 hot-swap 3.5" SATA HDDs for future storage expansion.
• RAID 0, 1, 5, 6, 10, and 50 support provides flexible storage protection options.
Technical Context
The NAV08630-2X12TB supports continuous and scheduled recording, dual streaming decoding mode, failover up to 36 channels per server, multi-channel synchronized playback, fisheye camera dewarping, and alarm detections including motion, audio, IVS, and optional ANPR. It also supports ONVIF Profile S for third-party camera compatibility.
Installation Notes
Install the NAV08630-2X12TB in a suitable 2U rackmount cabinet with proper ventilation and power capacity. Configure the installed 12TB drives, add additional SATA drives if needed, set RAID according to retention and redundancy requirements, and verify recording, playback, failover, camera compatibility, and alarm integrations before full deployment.
| General | |
| Model | NAV08630 |
| Chassis | 2U Chassis |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Daylight Saving | DST Daylight saving time by Windows OS |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0° C ~ 50° C(32° F ~ 122° F) |
| Storage Temperature | -20° C ~ 70° C(-4° F ~ 158° F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88( H ) × 438 W ) × 452( D ) mm |
| Weight | 23.14 lbs (10.50kg) - Gross |
| Warranty | 3 years |
| Video Input | |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/ NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Network video input | Up to 72 channels 1080P / 3M / 4M / 5M / 8M /12M (License separate purchase) |
| Paired with AI IPCAM | 64 channels |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 1250Mbps Download: up to 1250Mbps |
| Video input (Support quantity) | Max. 72 channels (License separate purchase) |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Live View & Display | |
| Fisheye Dewarp Mode | Ceiling and ground mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye, Wall mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 1 × HDMI Port 1.4, (4096 × 2160@60Hz) |
| DVI output | No support |
| VGA output | No support |
| DisplayPort output | 1 × DisplayPort 1.2, (4096 × 2160@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 2 monitors support up to 64 channels in total (480P 15fps) |
| Recording | |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps,3MP@30fps, 1080p@120fps, and ROI recording supported |
| Motion recording | 64ch |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback & Backup | |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search,Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps,3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X FastForward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 36 channels, AVI & MP4 file format supported |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported up to 36 channels |
| Alarm & Event | |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and Post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording,schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Integration | |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILIN Pro&Home, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| Hardware | |
| CPU | Intel® Core™ i5-13500 |
| Memory | 32GB (1 × DDR4 32GB) |
| Chipset | Intel® H610 |
| Display card | Intel® UHD Graphics 770 |
| Ethernet Ports | 1 × Intel® I225LM with 2.5GbE 1 × Intel® I225LM with 2.5GbE |
| Audio (Hardware) | 2 × Audio jack(s) |
| Rear panel USB port | 2 × USB 2.0 2 × USB 3.2(Gen1) |
| Front panel USB port | 1 × USB 3.0 |
| System FAN | 2 × 60mm rear exhaust fans |
| Storage | |
| Internal HDD / Swap Drive Bay | Support up to 8 × Hot-swap 3.5 Inch SATA HDD (Recording hard drive not included) |
| Hot spare | support |
| Raid control | LSI SAS 9361-8i RAID |
| Raid mode | RAID 0, 1, 5, 6, 10, 50 |
| SSD / HDD | Built-in 1 × 256GB SSD (OS) 24TB (2X12TB) |
