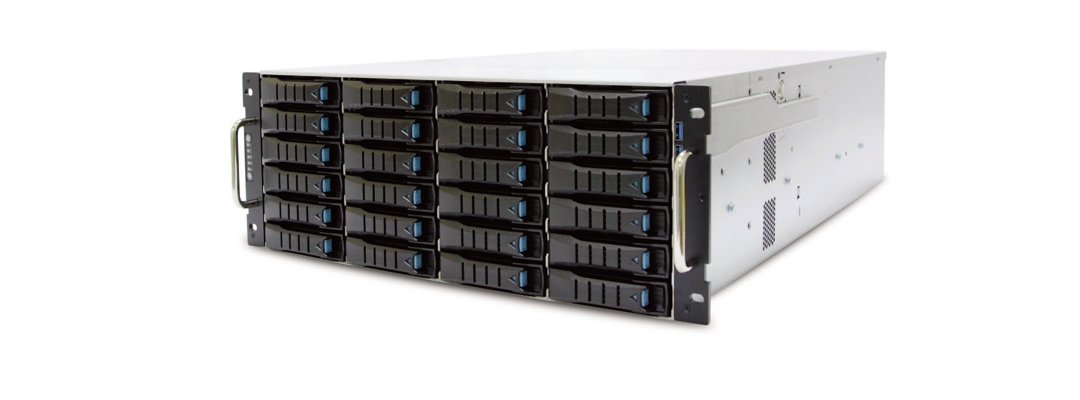

LiLin - NAV1108C-24X18TB - 432TB 128-Channel 4U Rackmount Network Video Recorder
Product Overview
The LILIN NAV1108C-24X18TB is a high-capacity NAV Recorder configuration designed for large-scale professional surveillance environments. This model includes twenty-four 18TB surveillance hard drives, providing 432TB of installed storage for extensive camera deployments, long-term recording retention, and high-resolution video archives. It supports LILIN IP cameras, PTZ cameras, DVRs, NVRs, and AI IP cameras.
Key Configuration
Model: NAV1108C-24X18TB; Product Type: NAV Recorder; Installed Storage: 24 x 18TB HDD; Total Included Storage: 432TB; Recording Capacity: up to 128 channels with separate license purchase; Drive Support: up to 24 hot-swap 3.5" SATA HDDs; Network: 1GbE RJ-45 x 1 and 10GbE RJ-45 x 1; Power Supply: built-in 1200W redundant 1+1; Form Factor: 4U rackmount.
Key Features
• H.265, H.264, and MJPEG video format support
• Dual-stream decoding mode for efficient live display, playback, and recording
• RAID 0, 1, 5, 6, 10, and 50 support for flexible storage configuration
• Multi-channel synchronized playback for remote or local review
• Fisheye camera dewarping and failover support up to 36 channels per server
Technical Context
The NAV1108C supports recording, playback, and live display at resolutions including 1080P, 3MP, 4MP, 5MP, 8MP, and 12MP. It is capable of continuous and scheduled recording, with alarm detections including motion, audio, IVS, and optional ANPR for triggering alarm outputs. The recorder also supports up to 1080P at 120fps and 4K at 30fps video streams.
Installation Notes
This 24X18TB configuration ships with twenty-four installed 18TB hard drives, filling the recorder's supported hot-swap 3.5" SATA drive capacity. RAID settings should be configured according to the required balance of usable capacity, redundancy, and recording continuity.
| General | |
| Chassis | 4U Chassis |
| Languages | English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Daylight Saving | Daylight saving time by Windows OS |
| Power Consumption | 1200W |
| Power Supply | 110V ~ 240V Redundant Power Supply |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 177 (H) × 430 (W) × 680 (D) mm |
| Color | Black |
| Weight | 81.6 lbs (37kg) - Gross |
| Video Input | |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Network video input | Up to 128 channels 1080P / 3M / 4M / 5M / 8M / 12M (License separate purchase) |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Video input (Support quantity) | Max. 128 channels (License separate purchase) |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Live View & Display | |
| Fisheye Dewarp Mode | Ceiling and ground mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye, Wall mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 1 × HDMI Port 2.0b, (4096 × 2160@60Hz) |
| DisplayPort output | 3 × DisplayPort 1.4, (4096 × 2304@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 2 monitors support up to 36 channels in total (480P 15fps) |
| Recording | |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback & Backup | |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 36 channels, AVI & MP4 file format supported |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported up to 36 channels |
| Alarm & Event | |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Integration | |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| Hardware | |
| CPU | Intel® Xeon® Silver 4208 |
| RAM | 32GB (2 × DDR4 16GB) |
| Chipset | Intel® C621 |
| Display card | 1 × RTX 3060 |
| Ethernet Ports | 1 x Aquantia® AQC107 10GbE 1 x Intel® I210-AT with 1GbE |
| Audio (Hardware) | 5 × Audio jack(s), 1 × S/PDIF |
| Rear panel USB port | 5 x USB 3.1 (Gen2) Type-A 1 x USB 3.1 Type-C |
| Front panel USB port | 2 x USB 3.0 Type-A |
| System FAN | 3 × System Cooling |
| Storage | |
| Internal HDD / Swap Drive Bay | built-in 1 × 256GB 2.5 Inch SATA SSD (OS) 432TB (24X18TB) |
| Hot spare | support |
| Raid control | LSI SAS 9361-8i RAID |
| Raid mode | RAID 0, 1, 5, 6, 10, 50 |
| SSD HDD | built-in 1 × 256GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (Recording hard drive not included). Note: Do not use WD Purple HDDs for NAV HDD installation. Please use 7200RPM WD Red Pro for non-RAID installation, WD (Gold) Enterprise HDDs for RAID installation, or other Enterprise HDDs |
