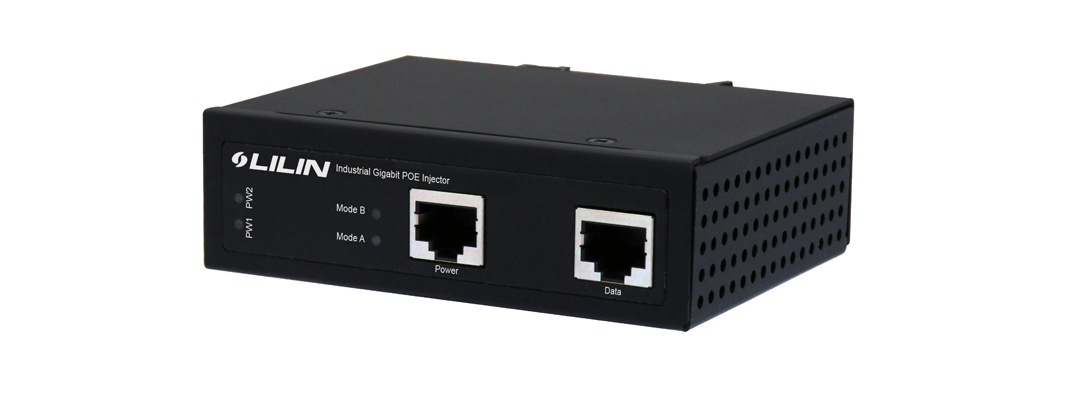

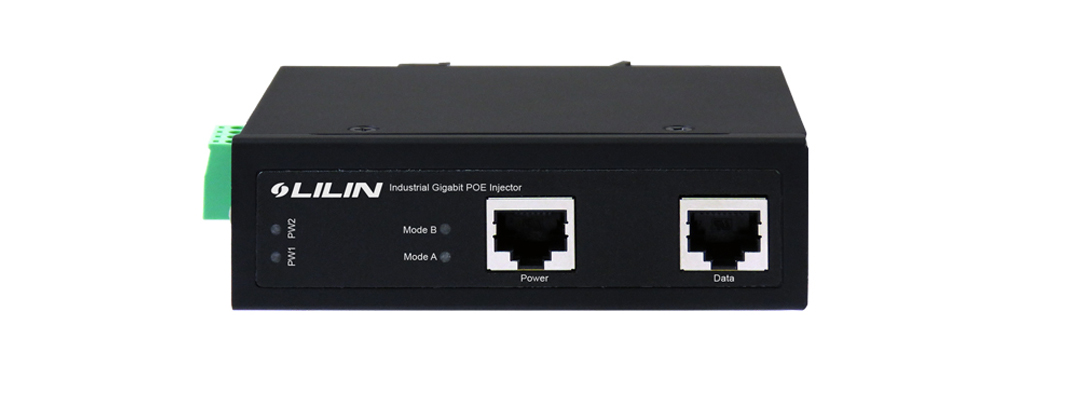

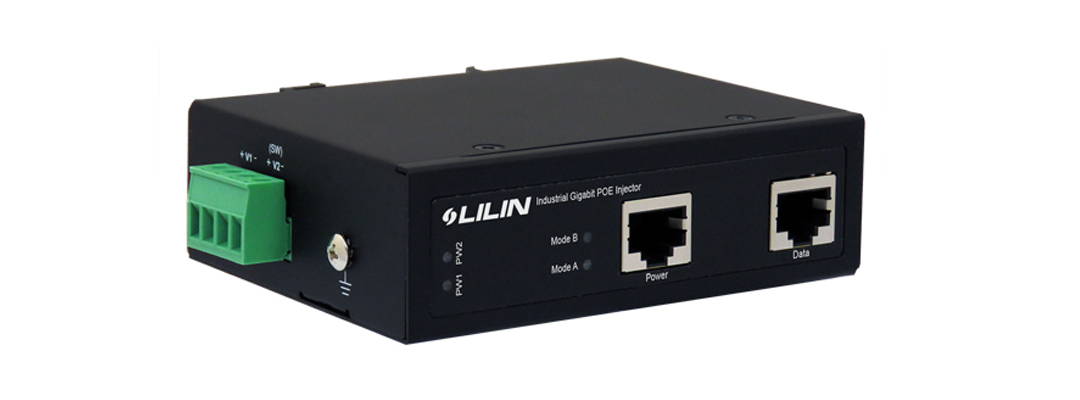

Lilin - PI3019A - Industrial Gigabit POE Injector
Part number:
PI3019A
Price:
This rugged designed 30 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 30 Watts power to your security equipment. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48 ~ 56 VDC to deliver 30Watts power to meet IEEE802.3 af/at standard. It is being rigorously tested for your Security , Transportation and Telco application.
Features:
- Industrial Gigabit POE Injector
- 36 Watts, Mode A
- VDC 48-56
- 1x10/100/1000M TX PSE (802.3af/at POE+) TX
- 1x10/100/1000M TX
- Operating temp: -40°C to +75°C
| Model | PI3019A |
| Protocols | CSMA/CD |
| IEEE Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE Standard | IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE Standard | IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| IEEE Standard | IEEE802.3af for POE |
| IEEE Standard | IEEE802.3at for POE+ |
| Network connector | 1xRJ-45 10/100/1000BaseT(X) Data |
| Network connector | 1xRJ-45 10/100/1000BaseT(X) Data with POE Output power |
| Housing design | Rugged Metal, IP30 Protection |
| Power Consumption | 1 W@12/24/48 VDC full load, Without POE |
| Network Cable | UTP/STP above Cat.5e Cable |
| Network Cable | EIA/TIA-568 10-ohm (100m) |
| LEDs | PW1(power 1) Green: ON- power good, OFF-power failed。PW2(power 2) Green: ON- power good, OFF-power failed。POE Yellow: ON- POE Normal working |
| LEDs | FLASH - Overload |
| LEDs | OFF- NO POE power detected |
| Reserve polarity protection & Overload current protection | Present |
| Removable terminal block | Provide 4 pin terminal block |
| Removable terminal block | Wire range: 0.34mm^2 to 2.5mm^2 |
| Removable terminal block | Solid wire (AWG):12-24/14-22 |
| Removable terminal block | Stranded wire(AWG): 12-24/14-22 |
| Removable terminal block | Torque:5lb-In/0.5Nm/0.56Nm |
| Removable terminal block | Wire Strip length: 7-8mm |
| MTBF (mean time between failure) | 510,304 hrs ( MIL-HDBK-217F) at 25°C |
| EN55022/24 (Certifications) | ITE equipment |
| EN55011 (Certifications) | Industrial, Scientific and Medical (ISM) equipment |
| Safety (Certifications) | IEC EN60950-1 |
| EMC/EMS (Certifications) | CE、FCC、VCCI |
| (Certifications) EMI | FCC Part 15 Subpart B Class A, CE EN 55022 Class A |
| EN 50155 / EN 60068-2-6 (Certifications) | Vibration |
| EN 50155 /EN 60068-2-27 (Certifications) | Shock |
| EN 50155 / EN 60068-2-32 (Certifications) | Free Fall |
| EN50121-3-2 (Certifications) | Railway Applications – Electromagnetic Compatibility – Part 3-2 Rolling Stock - Apparatus |
| EN50121-4 (Certifications) | (pending) Railway Applications – Electromagnetic Compatibility – Part4 Emissions and Immunity of the Signaling and Telecommunications Apparatus |
| EN50155 (Certifications) | (pending) Railways Applications Electronic Equipment used on Rolling Stock |
| Installation | DIN Rail mounting and Wall Mounting |
| PoE Pin Assignment | Mode A model, V+, V+, V-, V- for pin 1, 2, 3, 6。Mode B model, V+, V+, V-, V- for pin 4, 5, 7, 8 |
| Operating humidity | 5% to 95% (Non-condensing) |
| Operating temperature | -40℃〜75℃ fully tested |
| Storage temperature | -40℃〜85℃ |
| Dimensions | 103.5mmx32mmx81.5mm |
| Power Supply | 2 Redundant power source, 48V〜56V VDC Power Input |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
