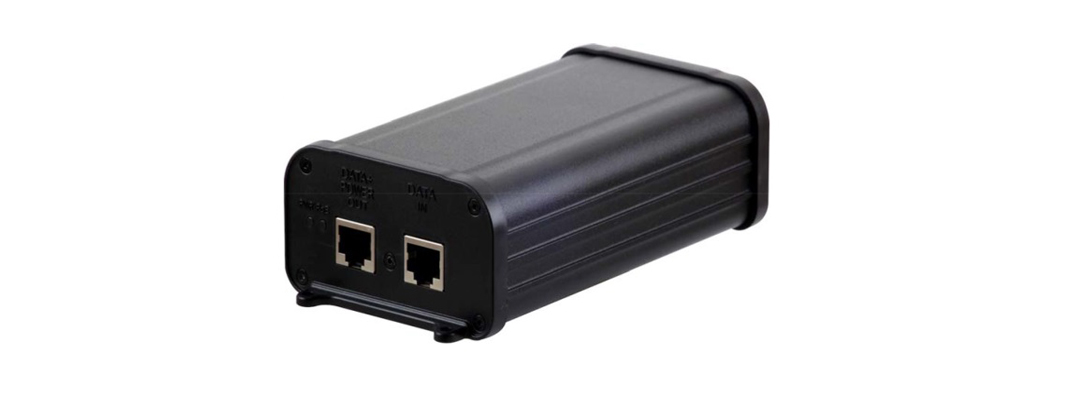

Lilin - PI6018 - Gigabit POE Injector
Part number:
PI6018
Price:
This 60 Watts, high power Single port industrial POE Injector is equipped with our high efficiency ColdDesign technology to provide 60 watts power to your security equipment by a 4-pin selectable dip switch. The ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 100VAC to 240VAC to meet IEEE802.3af/3at required voltage. It is being rigorously tested for your Security.
Features:
- Industrial Gigabit POE Injector
- Safe and Reliable Power to WLAN AP, PTZ cameras
- 10/100/1000Base‐T
- Compact Design with 1U height
- 100~240VAC
- Operating temp: -40°C to +55°C
| Model | PI6018 |
| IEEE Standard | IEEE802.3af for POE |
| IEEE Standard | IEEE802.3at for POE+ |
| Network connector | Shielded RJ‐45,EIA 568A and 568B |
| Connector | Shielded RJ‐45,EIA 568A and 568B |
| Network Cable | Use Standard Cat. 5e/6/7 cables which are Compliant with 3P/ETL standard |
| No. of Ports | 1 |
| Pass Through Data Rate | 10/100/1000 Mbps |
| Power over Ethernet Output | Pin Assignment and Polarity: 1/2(‐),3/6(+),4/5(+),7/8(‐) |
| Power over Ethernet Output | Output Power Voltage : 55~56.5Vdc User Port Power : 60 Watts (Guaranteed) |
| Input Power Requirements | Input Voltage : 100~240Vac/50~60Hz |
| Input Power Requirements | Input Current : 1.5A@100~240Vac |
| Indicators | Power & Port Status Indications |
| Regulatory Compliance | CE(include C‐Tick),LVD,FCC Class B,VCCI |
| Operating humidity | 90%(Max),Non‐condensing |
| Operating temperature | -40℃〜40℃(‐40°F to 104°F) @60Watts。-40℃〜55℃(‐40°F to 131°F) @50Watts |
| Storage Humidity | 95%(Max),Non‐condensing |
| Storage temperature | -20℃〜70℃(‐4°F to 158°F) |
| Dimensions | 162mmx44mmx84mm / 6.37in.x 3.3in.×1.73in. |
| Weight | 380 +/‐15g |
