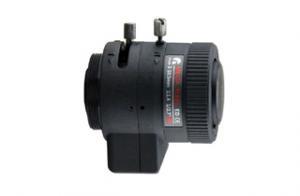

Lilin - PLH-03105MA - High image quality 3~10.5mm Varifocal Auto Iris lens supporting 3 megapixel cameras (IPG1022ESX3/UFG1122EX3)
Part number:
PLH-03105MA
Price:
High image quality 3~10.5mm Varifocal Auto Iris lens supporting 3 megapixel cameras (IPG1022ESX3/UFG1122EX3)
| Model | PLH-03105MA-3M |
| Pick Up Element | 1/2.7”(max) |
| Resolution | 3MP |
| Aspheric lens | No |
| ND filter | No |
| IR Correction | Yes |
| Mount Type | CS mount |
| Focal Length | 3 - 10.5 mm |
| Iris Range | F1.4 |
| Angle of View | (1/2.8” 1080P ) 100° - 30° |
| Focusing Range | 0.3m - INF |
| Focus Operation | Manual |
| Zoom Operation | Manual |
| Iris Operation | DC-Iris |
| Wavelength | 400nm - 760nm |
| Operation Voltage | DC3.5 - 5V |
| Operating temperature | -20℃ - 60℃ |
| Weight | 39g ±4g |
