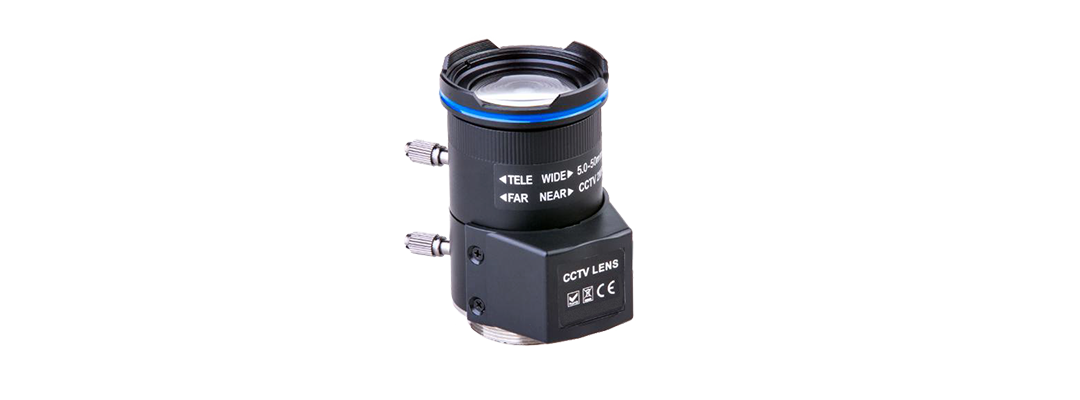

Lilin - PLH-0550MA-4M - High image quality 5~50mm Varifocal Auto Iris lens supporting 3 megapixel cameras (IPG1022E/UFG1122E)
Part number:
PLH-0550MA-4M
Price:
High image quality 5~50mm Varifocal Auto Iris lens supporting 3 megapixel cameras (IPG1022E/UFG1122E)
| Model | PLH-0550MA-4MP |
| Image sensor | 1/2.7'' (Φ6.87mm) |
| Resolution | 4MP |
| Aspheric lens | without |
| ND filter | without |
| IR correction | Have |
| Installation method/installation type | CS mount |
| Lens focal length | 5-50 mm |
| Aperture range | F2.0 |
| Camera angle | Sensor 1/2.7” Diagonal (D) 59.2°- 8.7° Horizontal (H) 50.9°- 7.6° Vertical (V) 27.8°- 4.3° Sensor 1/3” Diagonal (D) 53.2 °- 7.9° Horizontal (H) 41.8°- 6.4° Vertical (V) 30°- 4.8° |
| Focus range | 0.2m~∞ |
| Focus operation | Manual |
| Zoom operation | Manual |
| Aperture operation | automatic |
| wavelength | 550nm～850nm |
| Operating Voltage | DC 0.5~3.5V |
| weight | 25g |
| Working temperature | -20°C ~ +60°C |
