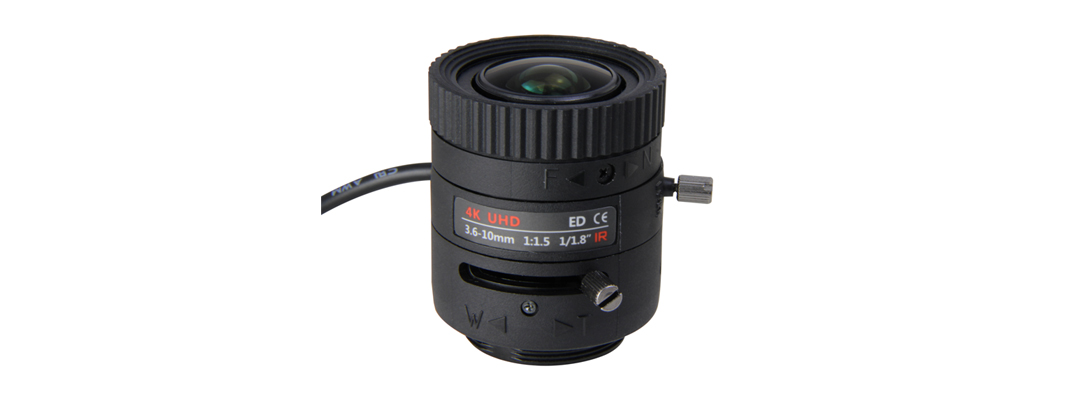

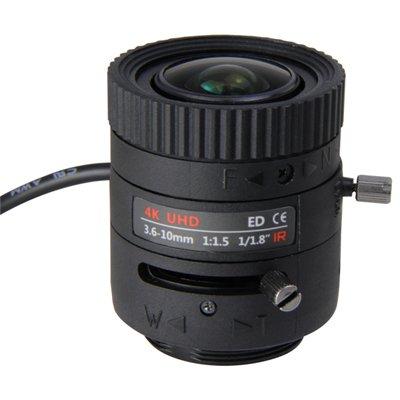

Lilin - PLH-3610MA-4K - 4K Resolution Vari-Focal Auto-Iris Lens 3.6-10mm
Part number:
PLH-3610MA-4K
Price:
Product Overview
The Lilin PLH-3610MA-4K is a CS mount manual lens designed for 1/1.8" image sensors with 4K resolution support. This lens features a 3.6-10mm focal length (86° to 35° field of view), F1.5 to F2.8 aperture range, manual zoom and iris operation, and IR correction for day/night camera compatibility.
Key Configuration
• Mount type: CS mount
• Image sensor compatibility: 1/1.8"
• Resolution support: 4K
• Focal length: 3.6-10mm
• Iris range: F1.5 (wide) to F2.8 (tele)
• Angle of view: 86° to 35°
| Model | PLH-3610MA-4K |
| Pick Up Element | 1/1.8'' |
| Resolution | 4K |
| Aspheric lens | No |
| ND filter | No |
| IR Correction | Yes |
| Mount Type | CS mount |
| Focal Length | 3.6-10mm |
| Iris Range | F1.5 (W) ~ F2.8 (T) |
| Angle of View | 86°~35° |
| Focus Operation | 0.3m~INF |
| Zoom Operation | Manual |
| Iris Operation | Manual |
| Wavelength | 400nm~760nm |
| Operation Voltage | 3.5 ~ 5V |
| Operating temperature | -20°C ~ 60°C |
| Weight | 46g |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
