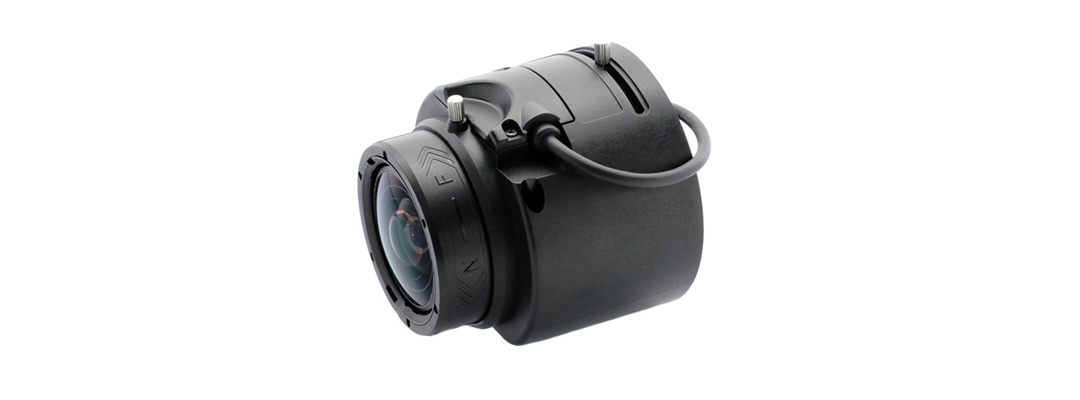

Lilin - PLH-4109MA-6M - High image quality 4.1~9mm Varifocal Auto Iris lens , 6M
Part number:
PLH-4109MA-6M
Price:
High image quality 4.1~9mm Varifocal Auto Iris lens , 6M
| Model | PLH-4109MA-6M |
| Pick Up Element | 1/1.8” |
| Resolution | 6mp |
| Aspheric lens | Yes |
| ND filter | No |
| IR Correction | Yes |
| Mount Type | CS mount |
| Focal Length | 4.1mm - 9mm |
| Iris Range | F1.6- T360 |
| Angle of View | (H) : 100∘1‘ (W) - 45∘17 ‘ (T) , (V) : 74∘21‘ (W) - 33∘59 ‘ (T) |
| Focusing Range | ∞ - 0.3m |
| Focus Operation | Manual |
| Zoom Operation | Manual |
| Iris Operation | DC-Iris |
| Operating temperature | -10℃ - + 50℃ (14∘F to 122∘F) |
| Weight | 130g |
| Operation Voltage | 23Ma 4V |
