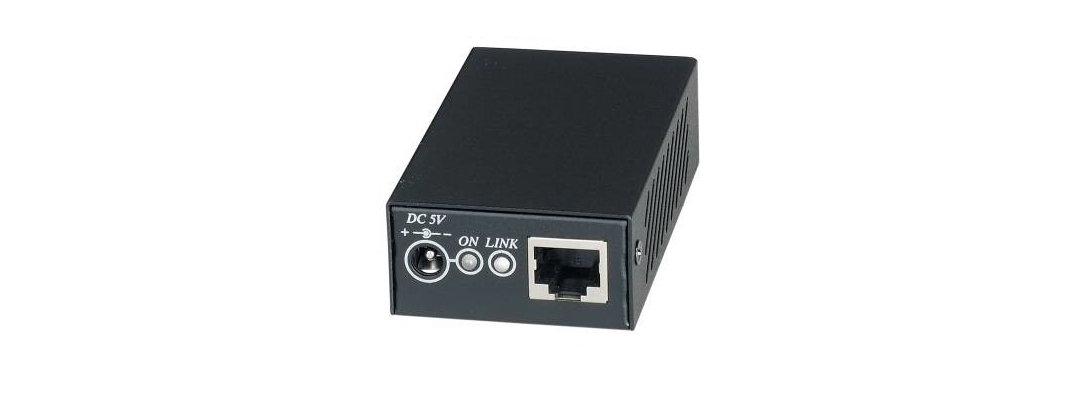

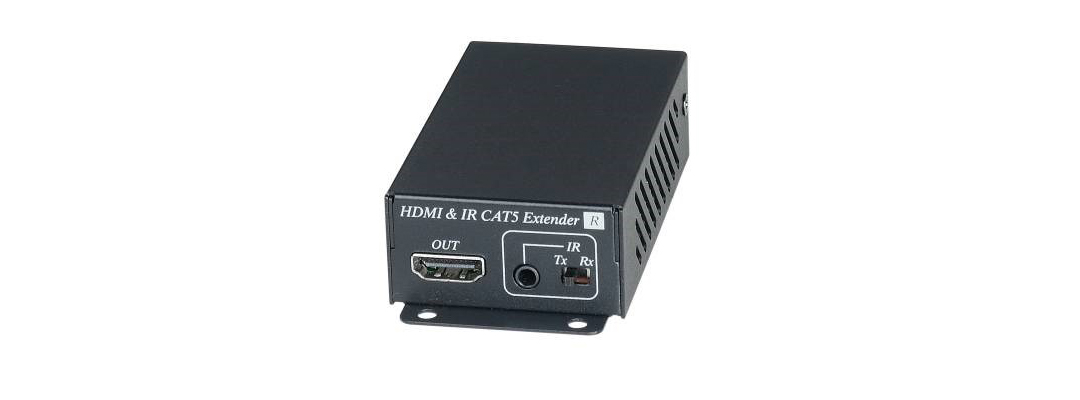

Lilin - PMH-HE02EI - HDMI and IR CAT5 Extender
Part number:
PMH-HE02EI
Price:
Features:
- One set include one transmitter and one receiver.
- Extends HDMI and IR signal over one CAT5/5e/6 cable.
- Uncompressed high definition video up to 1080p@60Hz@48bits and 4K.
- Built in IR control, IR signal could be selectable at either TX/RX side.
- Max. Data Rate- 10.2Gbps.
- HDMI 1.4 and HDCP compliance.
- 4K resolution transmission range up to 30 meters with CAT5e/6 cable, up 40 meters with CAT6a/7 cable.
- 1080P resolution transmission range up to 60 meters with CAT5e/6 cable, up 70 meters with CAT6a/7 cable.
- Audio support up to LPCM7.1, Dolby TrueHD, DTS-HD MA.
| Model | PMH-HE02EI |
| HDMI Video Support | Up to 1080p@60Hz@48bits,3D,4K x 2K |
| HDMI Audio Support | LPCM 7.1 192KHz, Dolby True HD, DTS-HD MA |
| Communication distance | 1080P 60M by CAT5e/6, 70M by CAT6a/7 ; 4K 30M by CAT5e/6, 40M by CAT6a/7 |
| Input / Output Interface | HDMI Type A x 1 |
| HDBaseT Connector | RJ45 x 1 |
| Infrared Frequency | 30-60Khz |
| Infrared LED Angle | ± 55° |
| Max IR distance | 5m / Bi-directional |
| Operating temperature | 0 - 55℃ |
| Storage temperature | -20 - 85℃ |
| Operating humidity | 95% |
| Dimensions | 49 x 92.3 x 25 mm |
| Weight | 135 g |
| Power Supply | DC 5V 2A |
| Power Consumption | Max 6W，Low Power 1W |
