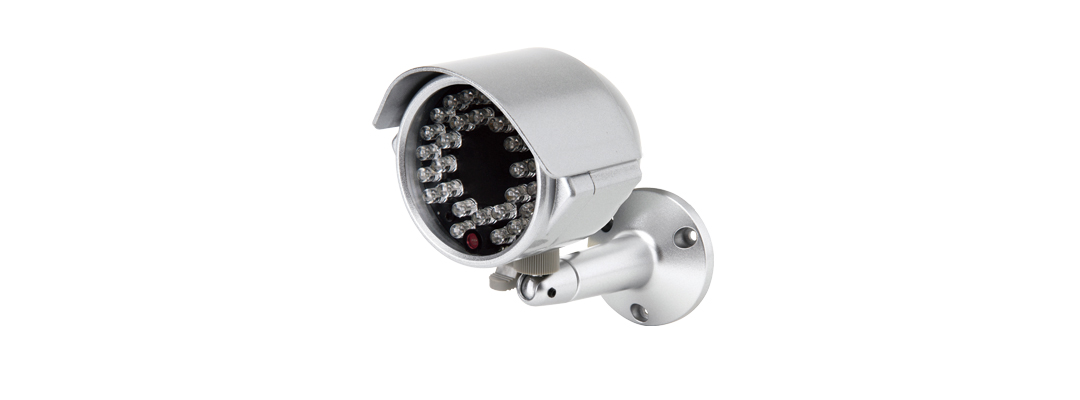

Lilin - PRH-5218 - IR Infrared Illuminator with Radiant Distance of 18m, 30 Degree Beam, 850nm, DC12V, 2W, IP68
Part number:
PRH-5218
Price:
IR Infrared Illuminator with Radiant Distance of 18m, 30 Degree Beam, 850nm, DC12V, 2W, IP68
Features:
- Indoor/Outdoor installation.
- High efficiency infrared LED, radiant distance - 18 meters.
- Sensor auto activate infrared LED under 10lux light level.
- Aluminum housing case with IP68 rating.
- Improve the image quality in low-light situations and in complete darkness.
| Model No. | PRH-5218 |
| Power Input Voltage | DC12V ( 10%) |
| Radiant Distance | 18M (59ft) |
| Peak Wavelength | 850nm |
| Quantity | 21 Units |
| Angle | 30 degree |
| Power On | Sensor Auto Control |
| Window | 59 Heat Resistant Glass |
| IP Rating | IP68 |
| Construction | Aluminum |
| Power Consumption | 2.0W |
| Operating Temperature | -20 deg. C ~ +60 deg. C(-4 deg.F ~ +140 deg. F) |
| Dimension | 65 x 65.1 mm |
| Weight | 160g |
