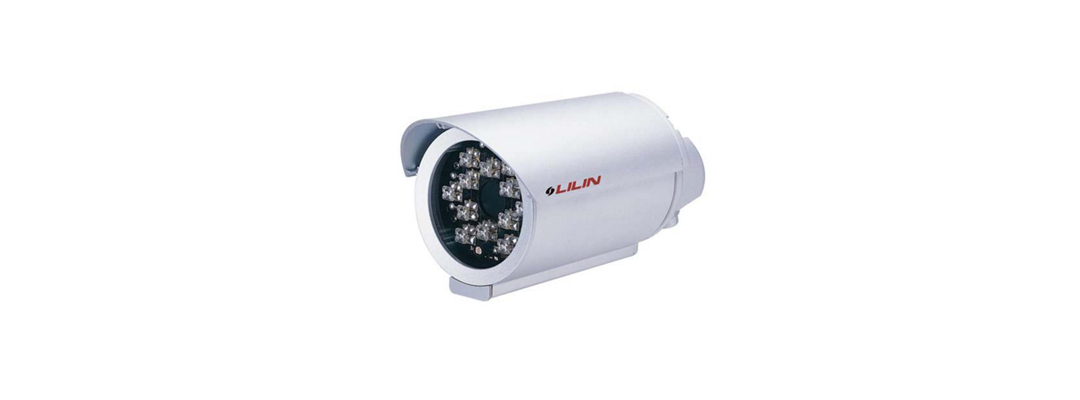

IR Infrared Illuminator with Radiant Distance of 40m, 20 Degree Beam, 850nm, AC24V, 7.2W, IP66.
Features:
- Indoor/Outdoor installation.
- High efficiency infrared LED, radiant distance - 40 meters.
- Sensor auto activate infrared LED under 10lux light level.
- Aluminum housing case with IP66 rating.
- Improve the image quality in low-light situation and in complete darkness.
- Aluminum PCB for fast heat dissipation.
| Model No. | PRH-5440 |
| Power Input Voltage | AC24V ( 10%) |
| Radiant Distance | 40M (131ft) |
| Peak Wavelength | 850nm |
| Quantity | 12 Units |
| Angle | 20 degree |
| Power On | Sensor Auto Control |
| Window | 88 Heat Resistant Glass |
| IP Rating | IP66 |
| Construction | Aluminum |
| Power Consumption | 7.2W |
| Operating Temperature | -20 deg. C ~ +60 deg. C(-4 deg.F ~ +140 deg. F) |
| Dimension | 100 x 185 mm |
| Weight | 1060g |
