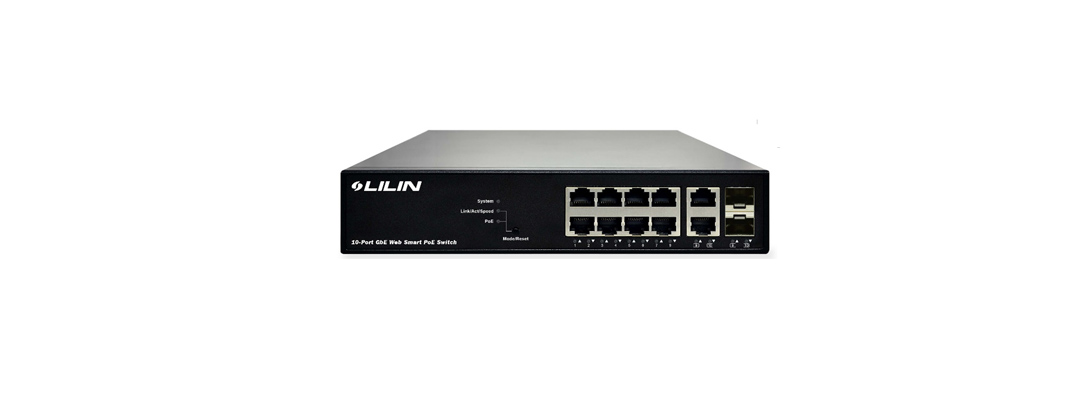

PS3108C Web Smart Managed PoE+ Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PS3108C delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 130W) ports and 2 Combo GbE RJ45/SFP ports. PS3108C provides high HW performance and environment flexibility for SMBs and Enterprises.
PS3108C is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Features:
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- IPv4/IPv6 L3 static route
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
| Model | PS3108C |
| Regulatory Compliance | EN61000-4-5 (for RJ45 Port, Surge 6KV) |
| CE | CE |
| FCC | FCC Part 15 Class A |
| IEEE Standard | IEEE 802.3 10BaseT |
| IEEE Standard | IEEE 802.3u 100BaseTX/100BaseFX |
| IEEE Standard | IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX |
| IEEE Standard | IEEE 802.1x / IEEE 802.3af/at |
| Number of Ports | 8 10/100/1G BaseT with RJ-45 connector |
| Number of Ports | 2 100M/1G J45/SFP Combo |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100m |
| Transmission Media | 100BaseTX Cat. 5 UTP/STP, up to 100m |
| Hardware Performance | Forwarding Capacity 14.88 Mbps / Switching Capacity 20 Gbps / Mac Table 8K / Jumbo Frames 9216 Bytes |
| Ethernet (Data Transfer Rate ) | 10Mbps / Half-Duplex |
| Ethernet (Data Transfer Rate ) | 20Mbps / Full-Duplex |
| Fast Ethernet (Data Transfer Rate) | 100Mbps / Half-Duplex |
| Fast Ethernet (Data Transfer Rate) | 200Mbps / Full-Duplex |
| Giga (Data Transfer Rate) | 2000Mbps / Full-Duplex |
| Per port (LED indicators) | System, Link/Act, POE |
| Power requiement | Internal power supply: AC input (100~240V/AC, 50/60Hz) UL Safety |
| POE power | 130W |
| Network ports | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
| Operating humidity | 10% to 90% non-condensing |
| Operating temperature | 0°C to 40°C (32℉ to 104℉) |
| Storage temperature | -20°C to 70°C (-4℉ to 158℉) |
| Dimensions | 242mm x 220mm x 44mm (9.53in x 8.66in x 1.73in) |
| Weight | 2.3kg (5.07lbs) |
| Power Supply | 174W |
