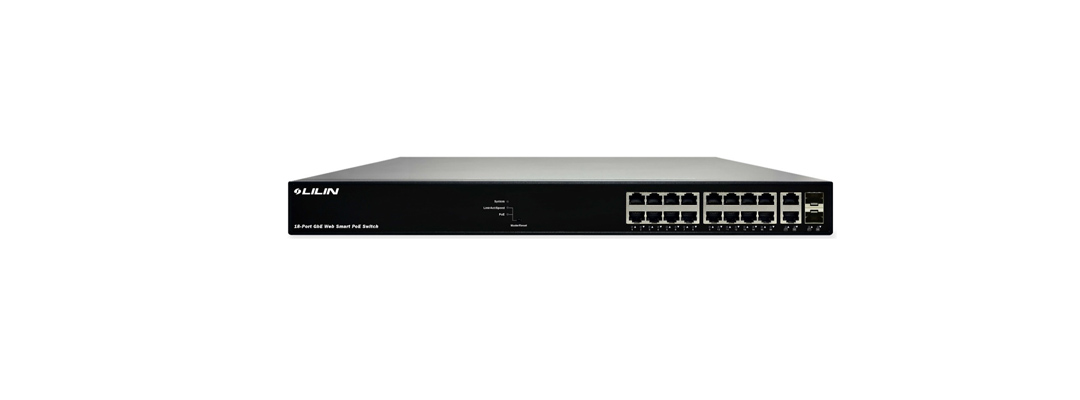

PS3188C Web Smart PoE+ Switch is a next-generation Ethernet Switch offering L2 and L3-lite switch features, better PoE functionality and usability, including L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in IP Surveillance applications.
PS3188C delivers 16 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 250W) ports, 2 Combo GbE RJ45/SFP port. PS3188C provides high HW performance and environment flexibility for SMBs and Enterprises.
PS3188C is ideal to deliver management simplicity, intuitive user experience, and lower total cost of ownership. It also includes the embedded Device Managed System (DMS), of which is designed for easy-to-use / manage / install functionalities, for IP Surveillance, VoIP, or Wifi-AP Applications.
Features:
- L2/L3-lite features provide advanced VLAN, QoS, and security functionality
- Built in Device Management System (DMS) features for usability
- DHCP Server
- IPv4/IPv6 L3 static route
- PoE Port configuration and scheduling
- 802.3at high power PoE+ plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
- Software features can be customized per customer requests
| Model | PS3188C |
| Regulatory Compliance | EN61000-4-5 (for RJ45 Port, Surge 6KV) |
| CE | CE |
| FCC | FCC Part 15 Class A |
| IEEE Standard | IEEE 802.3 10BaseT |
| IEEE Standard | IEEE 802.3u 100BaseTX/100BaseFX |
| IEEE Standard | IEEE802.3af PoE |
| IEEE Standard | IEEE 802.3at PoE+ |
| IEEE Standard | IEEE 802.3X Flow control |
| Number of Ports | 16 10/100/1G BaseT with RJ-45 connector |
| Number of Ports | 2 100M/1G J45/SFP Combo |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100m |
| Transmission Media | 100BaseTX Cat. 5 UTP/STP, up to 100m |
| Hardware Performance | Forwarding Capacity 26.784 Mbps / Switching Capacity 36 Gbps / Mac Table 8K / Jumbo Frames 9216 Bytes |
| Ethernet (Data Transfer Rate ) | 10Mbps / Half-Duplex |
| Ethernet (Data Transfer Rate ) | 20Mbps / Full-Duplex |
| Fast Ethernet (Data Transfer Rate) | 100Mbps / Half-Duplex |
| Fast Ethernet (Data Transfer Rate) | 200Mbps / Full-Duplex |
| Giga (Data Transfer Rate) | 2000Mbps / Full-Duplex |
| Per port (LED indicators) | System, Link/Act, POE |
| Power requiement | Internal power supply: AC input (100~240V/AC, 50/60Hz) UL Safety |
| POE power | 250W |
| Network ports | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
| Operating humidity | 10% to 90% non-condensing |
| Operating temperature | 0°C to 40°C (32℉ to 104℉) |
| Storage temperature | -20°C to 70°C (-4℉ to 158℉) |
| Dimensions | 442mm x 211mm x 44mm (17.40in x 8.31in x 1.73in) |
| Weight | 2.7 kg (5.95lbs) |
| Power Supply | 274W |
