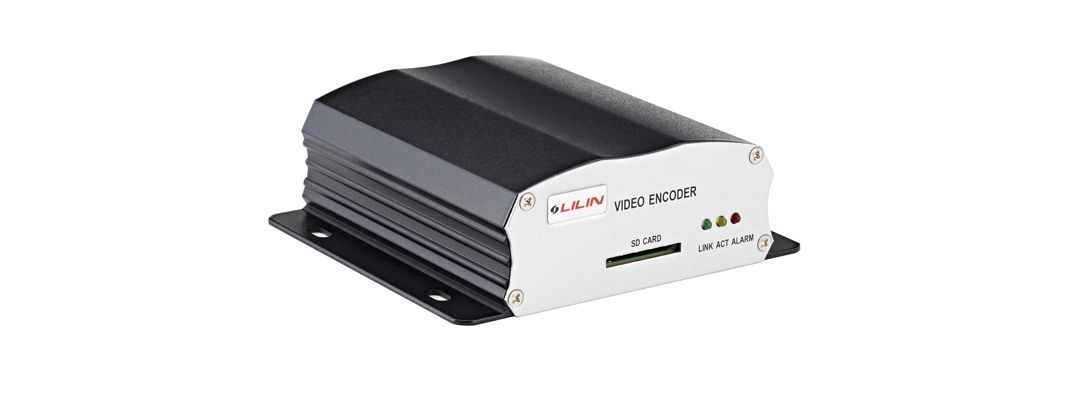

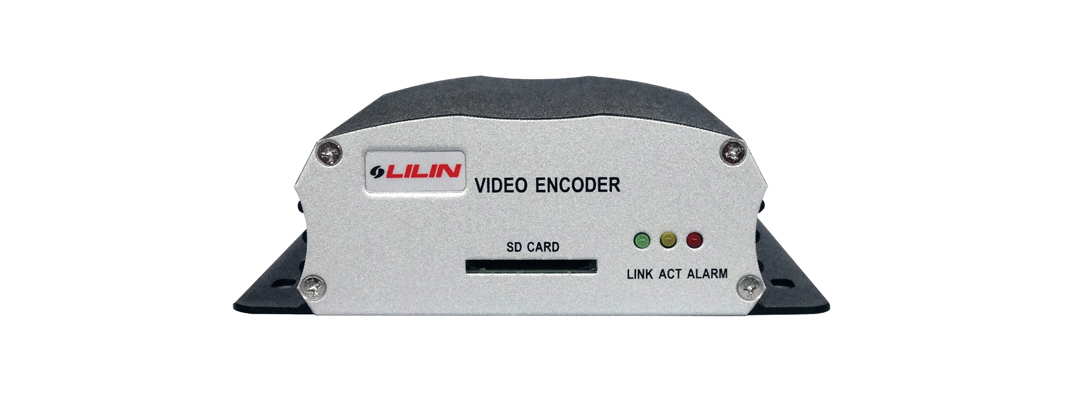

LILIN VS212 Video Encoder is a compact and easy-to-use 1-channel video encoder with good video performance; it turns an analogue video system into a network video system and enables users to view live images using a Web browser or video management software on any local or remote computer on a network. It can simplify migration to network video without upgrading existing camera systems. LILIN VS212 provides edge storage through a SD/SDHC memory card slot. It supports all types of analog cameras including PTZ (pan/tilt/zoom) domes.
The video encoder features RS-485 for controlling analog cameras. It is designed for installation close to the cameras. Its size makes it ideal for use in discreet surveillance applications, for instance, in retail stores and banks, and in camera housings. LILIN VS212 can deliver 4 simultaneous video streams. The H.264 video compression format drastically reduces bandwidth and storage requirements without compromising image quality.
Features:
- True H.264 AVC/MPEG-4 part 10 real-time video compression
- Hardware de-interlace
- H.264 and Motion JPEG multi-profile video streaming
- 960H composition video signal supported
- Quadruple streaming
- Motion detection alarm function
- Two-way audio supported
- SD/SDHC card recording supported
- Onvif supported
| Model | VS212 |
| Control interface | RS-485 , Half-Duplex , support MLP2 , Pelco D/P protocols |
| Protocols | IP, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP,Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour |
| Video Display | LILIN Universal ActiveX & LILIN Java Applet |
| Web browser | Windows Internet Explorer 6.0 or above |
| RAM | 1GB or above, independent display card ; 256MB DDR2, 256MB flash memory |
| OS | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 |
| CPU | intel pentium 4 1.8GHz or above |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5V) / 2 Output (Relay , N.O. / N.C.) |
| Video Compression | H.264 , Motion JPEG |
| Maximum Frame Rate | H.264 : up to 30/25 FPS at 960H resolution,Motion JPEG : up to 30/25 FPS at D1 resolution |
| Video streaming | Simultaneous Motion JPEG and H.264,RTP/HTTP, RTP/TCP, RTP/UDP, Multicast |
| Video bitrate | 128 Kbps – 3 Mbps,Frame rate and bit rate controllable on-the-fly,VBR / CBR / GOP supported |
| Alarm event triggers | Image upload over FTP and E-mail by motion detection |
| Network Interface/Ethernet | 10Mbps / 100Mbps , RJ-45 |
| Audio | Two-way audio,G.711 / PCM |
| Audio Input / Output | Mono, 1.4 Vp-p , 50 KΩ , 3.5mm phone jack |
| Power Consumption | 4.5W |
| Security | Base64 HTTP encryption,Multiple user access levels with password protection,10 user accounts available |
| User accounts | 8 simultaneous users |
| Maintenance | Firmware update via HTTP |
| System integration | ONVIF & LILIN HTTP API |
| Central management system | NAV 1.0 support |
| Video input / output | CVBS 1.0 Vp-p , 75Ω , BNC connector |
| Mobile Application | iPhone, iPad, and Android support |
| Operating humidity | 20% – 80% (non-condensing) |
| Operating temperature | 0°C – + 50°C ( 32°F – 122°F ) |
| Dimensions | 136mm (D) x 130mm (W) x 44mm (H) |
| Weight | 380g |
| Power Supply | DC 12V ±10% |
