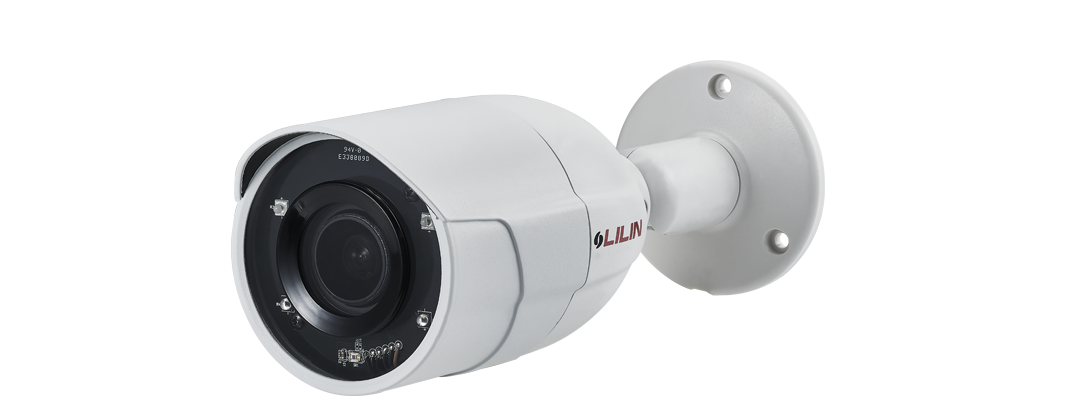

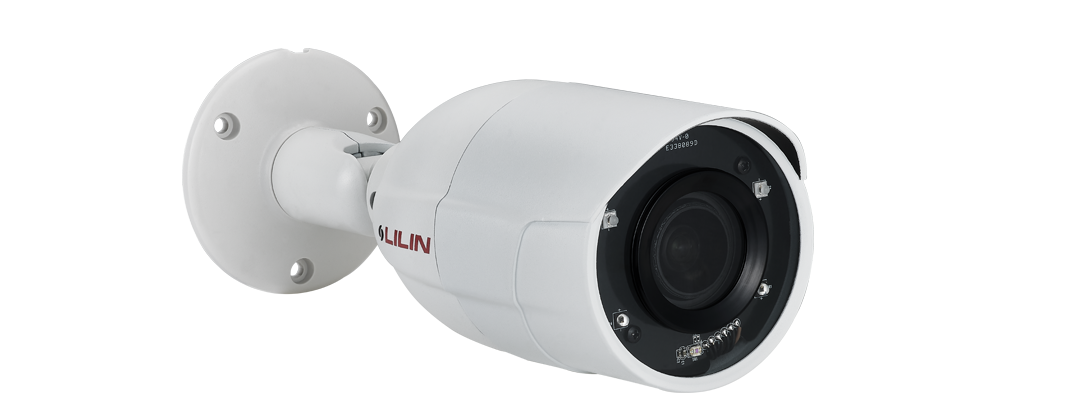

Lilin - Z5R8852X - 5MP Day & Night Auto Focus IR IP Bullet Camera
Product Overview
The Lilin Z5R8852X is a 5MP day & night auto focus IR IP bullet camera delivering 2592x1920 resolution at up to 20fps. This bullet camera features a 2.8-8mm motorized auto focus lens with 97.2° to 52.5° horizontal field of view, DWDR up to 70dB, and 30m IR illumination. H.265/HEVC and H.264/AVC compression with triple streaming, IP67 weather resistance, and IK10 vandal resistance.
Key Configuration
• Resolution: 5MP (2592×1920) up to 20fps
• Lens: 2.8–8mm motorized autofocus, F1.6, 97.2°–52.5° FOV
• Power: PoE (IEEE802.3af Class 3) or 12V DC, max 10W / 7.5W
• Storage: MicroSD/SDHC/SDXC up to 128GB edge recording
Key Features
This camera features a 1/2.7" progressive scan CMOS sensor, delivering monochrome images down to 0.006 Lux and full darkness visibility via 30m IR illumination. Imaging controls include digital wide dynamic range, 2D/3D noise reduction, auto day/night switching, mirror/rotation adjustments, and privacy masking. It encodes video in H.265, H.264, or MJPEG across 3 simultaneous streams with flexible bitrate controls, while supporting motion triggers and alarm I/O actions.
Technical Context
The Z5R8852X integrates a motorized zoom and auto-focus lens for remote optical positioning. It runs an embedded Linux system driven by an ARM Cortex-A7 processor with dedicated internal memory for metadata handling. System integration relies on ONVIF Profile S compliance for seamless third-party enterprise video management software compatibility.
Installation Notes
Housed in a compact aluminum bullet enclosure, this camera carries IP67 weather-resistance and IK10 vandal-protection ratings. It operates between -30°C and +50°C using either PoE or 12V DC power inputs. Edge storage supports a microSD card up to 128GB, and viewing client-side feeds requires a PC running a modern CPU, 8GB RAM, and a compatible web browser.
| Video Performance | |
| Model | Z5R8852X |
| Min. Illumination | Color: 0.04 Lux at F1.6; B/W: 0.006 Lux at F1.6; 0 Lux with IR LED ON |
| Power and Environment | |
| Starting Temperature | -10°C to +50°C (14°F to 122°F) |
| Operating Temperature | -30°C to +50°C (-22°F to 122°F) |
| Storage Temperature | -25°C to +60°C (-13°F to 140°F) |
| Humidity | 0% ~ 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V: 7.5W / PoE: 10.0W |
| Lens / Night Vision (Infrared LED) | |
| Focal Length | 2.8 – 8 mm (zoom / focus motorized) |
| Iris | F1.6 (Fixed IRIS) |
| Angle of View | H: 97.2° – 52.5°, V: 70.6° – 34.1°, D: 127.5° – 65.5° |
| Peak Wavelength | 850nm |
| Beam Spread | 60° |
| Radiant Distance | 30m |
| Sensor | |
| Pick Up Element | 1/2.7" CMOS image sensor |
| Effective Pixels | 2608(H) x 1960(V) = 5,499,760 pixels |
| Light sensor | Yes |
| Certifications | |
| CE | Yes, EMI CLASS A |
| FCC | Yes, EMI CLASS A |
| IP Rating | IP67 |
| Vandal Resistant Rating | IK10 |
| PC Requirements | |
| CPU | Intel Core i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or more, Dedicated Graphics Card |
| Web browser | Microsoft Internet Explorer 9 or above |
| Mechanical | |
| Dimension | 74(W) x 69(H) x 189(D) mm |
| Weight | 575g |
| Casing Material | Aluminum alloy |
| Window | Ø61 Heat-Resistant Glass |
| Input / Output | |
| Alarm Input / Output | Digital 1 input (TTL, +3-5VDC) / 1 Output (MOS Relay, 40VDC/300mA), Terminal block |
| Video Streaming | |
| Video Compression | H.265/HEVC Main Profile, H.264 Main Profile, Motion JPEG |
| Number of streams | 3 streams |
| Video Bitrate | 128Kbps - 8192Kbps, VBR/CBR/GOP supported |
| Network Security | |
| Encryption | Base64 HTTP encryption, Digest HTTP authentication, RTSP Authentication |
| Authentication | Digest HTTP authentication, RTSP authentication, and DDNS via HTTPS |
| Access | Multiple user access levels with password protection |
| User accounts | 7 simultaneous users |
| Video Resolutions | |
| Resolution | 5MP, 4MP, 3MP, 2MP, 1.3MP, 720p, 720x576, 720x480, VGA, CIF |
| Maximum Frame Rate | 2592x1944 / 20 fps |
| Video Functions | |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Schedule / Day (Color) / Night (Mono) |
| White Balance | Auto / Manual (adjustable) |
| Back Light Compensation | Off / On |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Sense Up | Off / x2 / x4 |
| Auto Gain Control | 36 dB Variable Gain |
| S/N Ratio | More than 48dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto (x2, x3, x4) |
| High Dynamic Range | Up to 70dB (DWDR on) |
| Privacy Masking | Off / On (4 zones) color mask configurable |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation |
| Auto Focus | One Push |
| EV (Exposure Value) | Adjustable |
| Integration | |
| Mobile Application | LILIN mobile app (LILIN Viewer) - iPhone, iPad, Android |
| Video Management | ONVIF Profile S / LILIN Navigator Enterprise 2.0 |
| SD Card Recording | Micro SD/SDHC/SDXC (128GB max) |
| Maintenance | Firmware update via HTTP and IP Scan |
| Event Triggers | Motion / Alarm / Network lost / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP POST / SD / SAMBA / Alarm / Push notification |
| Languages | English, Chinese, Spanish, Italian, Turkish, Russian, Korean, French, Arabic, Hungarian, Japanese |
| Network | |
| Ethernet | 10/100 Mbps Base-T, RJ-45 |
| OSD | Text overlay for date, time, and camera name |
| CPU / Memory | SoC ARM Cortex-A7, 128MB DDR3, 128MB flash |
| OS | Embedded Linux 3.10 |
| Network Protocols | IPv4, TCP, UDP, HTTP, HTTPS, RTSP, DHCP, DNS, DDNS, FTP, SMTP, NTP, ONVIF |
| Max online users | 7 simultaneous users |
| Video Display | LILIN Universal ActiveX |
| Log | System / Config / Alarm / User / Record / Storage / Network |
