Hanwha - HNW-SS-806 - Line Level Wall Mounted Microphone
Part number:
HNW-SS-806
Price:

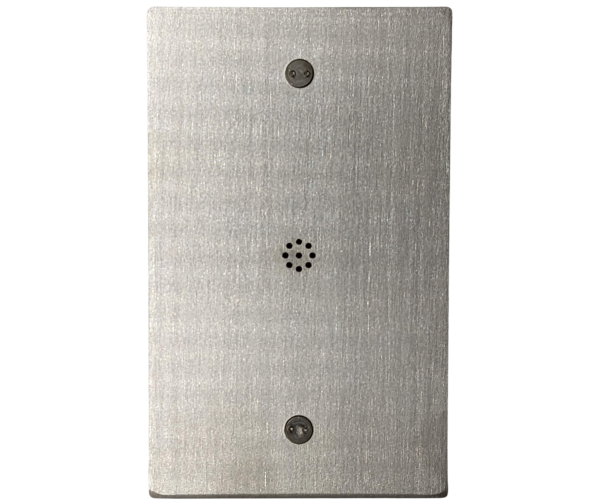

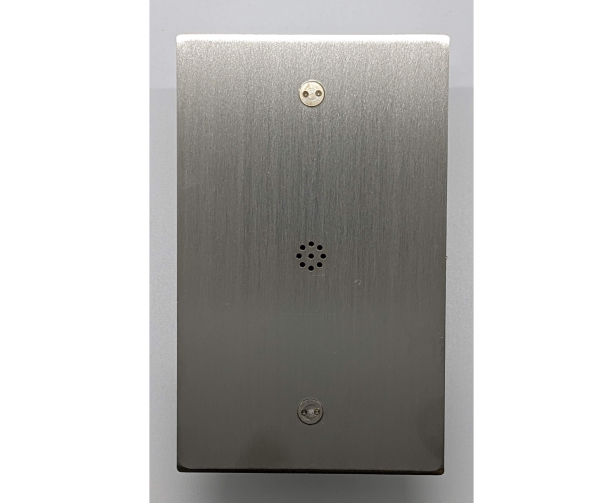

The SS-806 is an omni-directional line level microphone designed for use in law enforcement and corrections facilities. It is compatible with IP cameras and recorders.



Common Uses: The SS-806 is commonly paired with IP cameras supporting "mic in" audio and installed in: The SS-806 picks up sounds from approximately 12 feet away in all directions. Its anti-ligature design mounts flush onto ceilings or walls with no attachment points. Built in baffling protects the microphone from tampering, damage, and vandalism, ensuring reliability in high risk environments.

Technical Specifications
Sensitivity-38db ± 2
Frequency Response30Hz - 15kHz
Power Requirements12Vdc
Current Drain20mA
Output Impedance2.2KΩ
SNR60 dB
Operating Temp -25° - 70° C
Weight12 oz
Faceplate Dimensions Faceplate Thickness4.75"H x 2.5"W 11 Gauge
Faceplate MaterialStainless Steel
