ELK - M1KP2 - LCD Keypad, 32 Char. Alpha, flush mount option, 4.658" W x 5.5" H

Product Overview

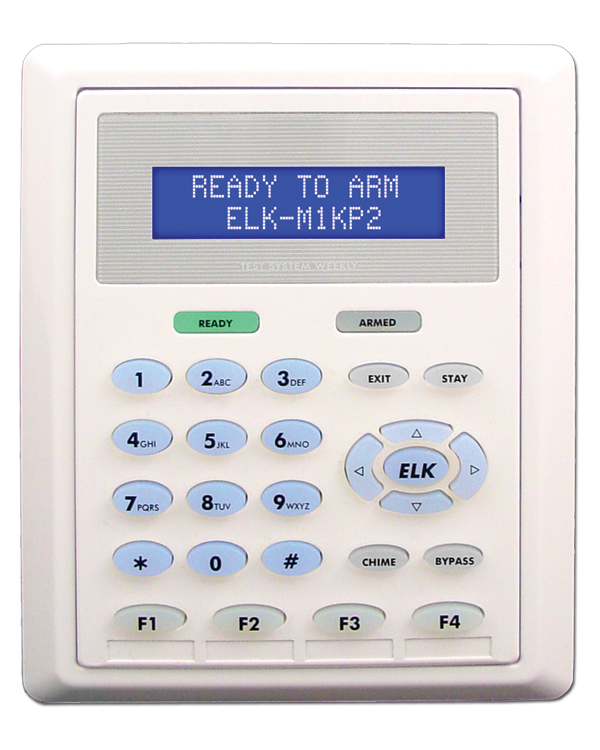

The ELK-M1KP2 is a slim, addressable LCD keypad for M1 Control Systems. It features a 32-character blue/white backlit display, blue lighted keys, and four programmable function keys. The unit supports surface or flush mounting and accepts external 26-bit Wiegand proximity readers for touchless system control.

Key Configuration

• • Display: 32-character blue/white backlit hi-contrast LCD
• • Operating voltage: 13.8 VDC; current draw: ~30 mA idle, ~85 mA fully active
• • Connection: 6-pin plug-in flying lead connector (included)
• • Features: 4 programmable function keys, exit/stay/chime/bypass keys, menu navigation/direction keys
• • Dimensions: 4.658"W × 5.5"H × 0.95"D (0.375"D with recess mount)

Key Features

It operates on a 4-wire RS-485 data bus and includes a built-in piezo sounder with adjustable pitch. The unit supports one supervised zone input, one programmable voltage output, and optional 26-bit Wiegand proximity readers. It surface-mounts to standard electrical boxes or can be flush-mounted using the ELK-M1BBK2 kit. Each unit includes multicolor labels, mounting hardware, a 2200-ohm resistor, connectors, and a 6-wire cable assembly.

Technical Context

Blue lighted keys for low-light visibility. Unique menu navigation/direction keys for intuitive control. Compatible with external 26-bit Wiegand proximity readers (cards or fobs) for arming, disarming, and door strike control.

Installation Notes

Dimensions: 4.658"W × 5.5"H × 0.95"D (recess depth: 0.375"D). Surface mount to 1 or 2 gang electrical box with included screws. Optional ELK-M1BBK2 back box kit required for flush mount installation. Color: white. 6-pin flying lead included for data bus connection.
