Luminys - K86-8B2A4 - 8CH 8MP LumiLightBand IP Bundle

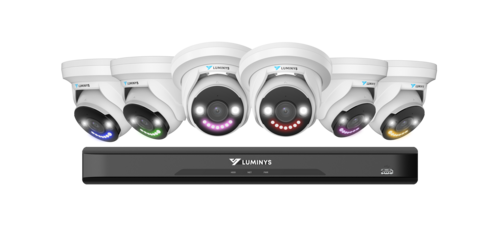

The K86-8B2A4 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 8MP network cameras. This smartly-designed kit is highly cost-effective and designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons. With all devices part of the powerful Luminys security
ecosystem, integration between the cameras and NVR is seamless and provides the highest levels of compatability and functionality.
Key Technologies:
R3 series NVRs are compatible with the LumiViewer desktop platform and mobile app.LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
LumiLightBand technology activates a camera’s light strip according to a schedule, event trigger, or motion detection. When the camera’s sensor detects motion, the semi-ring of colorful LEDs turn red to deter intruders. Once motion stops, the colorful LEDs return to their normal state. The lights come in eight (8) different colors and can be set to keep steady, wave, or flash for a specific amount of time. LumiLightBand cameras offer three low-light modes: covert IR-only mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
Key Features:
- 4K NVR With 4 TB HDD
- Eight (8) Channels With Two (2) SATA Ports
- HDMI and VGA Output
- PoE Plug-and-Play
- 8MP Turret Housing
- 2.8 mm Fixed Lens
- LumiLightBand
- Video Content Analytics: Line Crossing and Intrusion
- iMD
- 8CH 8MP NVR with Dual SATA, 4TB HDD
- 6 × 8MP LumiLightBand Turret Cameras
- iMD Included
- 1.5U Form Factor, 2 SATA, Audio, Alarm Support
Certifications and Compliance:
- NDAA Compliant
FCC
ONVIF
| NVR Specifications - R32-8PA4 R3 Starter Series NVR, 4K 8 Channel, 8 PoE With 4 TB HDDR3 Starter Series NVR, 4K 8 Channel, 8 PoE With 4 TB HDD | |
| Video Input | Eight (8) Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 / VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, MJPEG |
| Decoding Capability | Two (2) Channel: 8MP at 30 fps / Eight (8) Channel: 1080p at 30 fps |
| Synchronous Playback | 1, 4, 8 Views |
| Supported Analytics by Camera | Intelligent Motion Detection: Eight (8) Channels / Video Content Analytics: Eight (8) Channels / Face Detection: Four (4) Channels / License Plate Recognition: Four (4) Channels |
| Smart Search | Search by Target Classification, Pictures by Channel, Time, and Event Type |
| SATA | Two (2) Ports |
| HDD | 4 TB Pre-Installed HDD (Max. 10 TB per HDD) |
| Network | One (1) Port (RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)) |
| PoE | Eight (8) Ports (RJ-45 Self-Adaptive Ethernet (10/100 Mbps)) |
| USB | Front Panel: One (1) USB 2.0 Port / Rear Panel: One (1) USB 2.0 Port |
| Alarm | Input: Four (4) Channels / Output: Two (2) Channels |
| Audio | Input: One (1) RCA Channel / Output: One (1) RCA Channel |
| Bandwidth | Incoming/Recording: 160 Mbps / Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
| Power Supply | 100-240 V, 47-63 Hz. 3.5 A |
| Power Consumption | < 10 W (HDD Not Included) / PoE: 115 W (Max. Output for Single Port: 25.5 W) |
| Weight | 2.5 kg (5.5 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F), 10% to 93% |
| Dimensions | 372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
| Certifications | FCC |
| Compliance | NDAA |

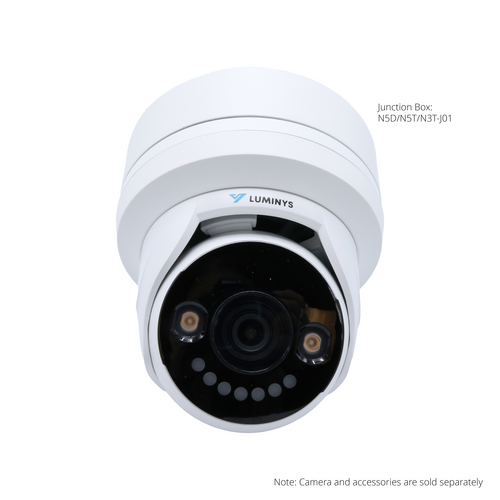

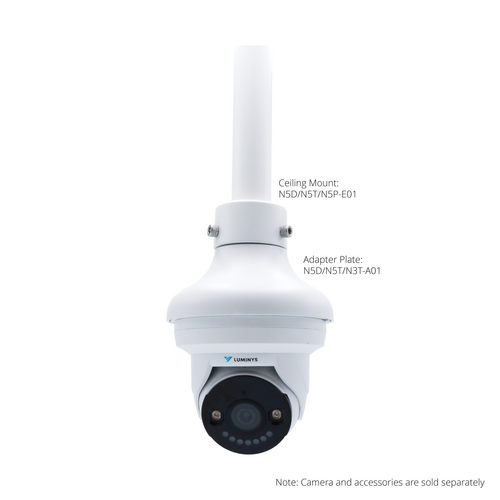

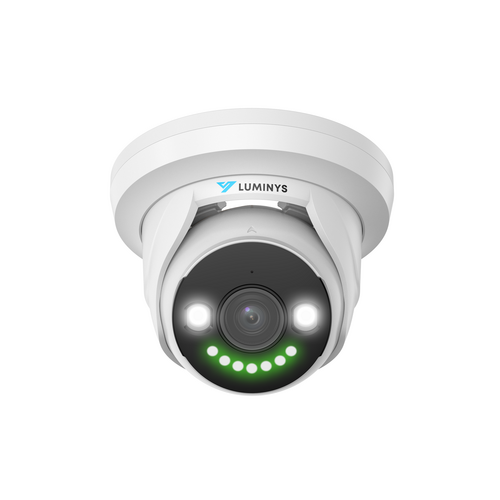

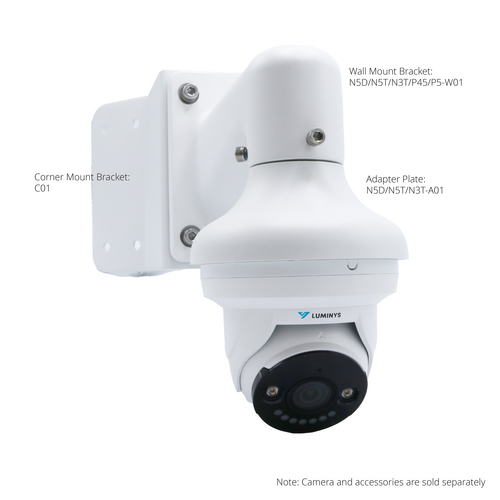

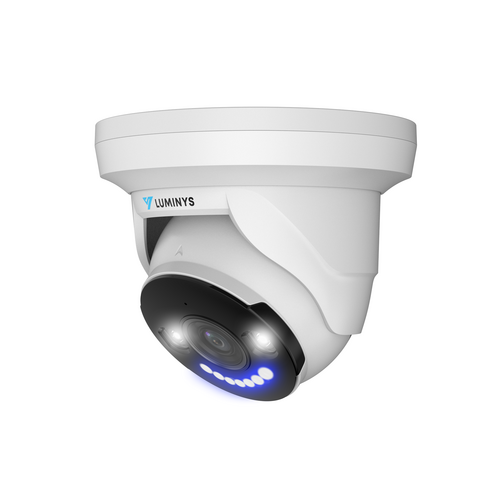

| Camera Specifications - N3T-8BA2 8MP Network LumiLightBand Turret Camera (2.8 mm)8MP Network LumiLightBand Turret Camera (2.8 mm) | |
| Series | Luminys Series N3 Series (Entry Level) |
| Image Sensor | 1/2.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.008 Lux at F1.6 (30 IRE) / Black/White: 0.0008 Lux at F1.6 (30 IRE) / 0 Lux With IR Light On |
| Number of Illuminators | One (1) IR LED, Two (2) White-Light LEDs (Supports LumiLightBand) |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR/Warm-Light: Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual; 1/3 s to 1/100,000 s |
| Installation Angle | Pan and Rotation: 0° to 360° / Tilt: 0° to 78° |
| S/N Ratio | > 50 dB |
| Lens Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 111° / Vertical: 58° / Diagonal: 132° |
| Close Focus Range | 1.5 m (4.9 ft) |
| DORI Distance | Detect: 58.2 m / Observe: 23.3 m / Recognize: 11.6 m / Identify: 5.8 m |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Resolution | 8MP (3840 × 2160) down to CIF (352 × 288/352 × 240) |
| Maximum Frame Rate | Main Stream: 3840 × 2160 at 20 fps / Sub Stream: D1 at 20 fps |
| Video Bit Rate | H.264: 32–8192 kbps / H.265: 12–8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, B/W |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (90°/270° up to 4MP) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported (Vehicles, Humans) |
| Audio Compression | PCM, G.711a, G.711Mu |
| Audio Interface | Built-in Microphone |
| Alarm Events | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD |
| Network Protocol | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, FTP, SFTP, NAS, DHCP, DNS, DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, MicroSD (Max. 256 GB) |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: 8.4 W (Max.), 3.2 W (Normal) / PoE: 9.8 W (Max.), 4.3 W (Normal) |
| Net Weight | 0.5 kg (1.1 lb) |
| Gross Weight | 0.7 kg (1.4 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F), < 95% RH |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | Φ 122.0 mm × 104.7 mm (Φ 4.8 in. × 4.1 in.) |
| Material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |
