Luminys - K8T-16B2A4 - 16CH 8MP LumiLightBand IP Bundle

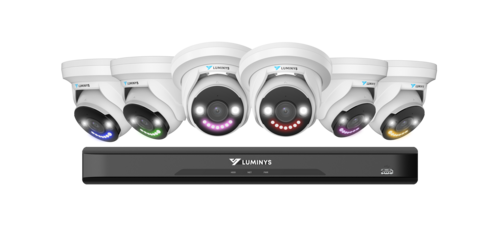

The K86-8B2A4 is a full-featured security solution. It contains one (1) Luminys R3 series NVR and six (6) 8MP network cameras. This smartly-designed kit is highly cost-effective and designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons. With all devices part of the powerful Luminys security ecosystem, integration between the cameras and NVR is seamless and provides the highest levels of compatability and functionality.
Key Technologies:
R3 series NVRs are compatible with the LumiViewer desktop platform and mobile app. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring.
LumiLightBand technology activates a camera’s light strip according to a schedule, event trigger, or motion detection. When the camera’s sensor detects motion, the semi-ring of colorful LEDs turn red to deter intruders. Once motion stops, the colorful LEDs return to their normal state. The lights come in eight (8) different colors and can be set to keep steady, wave, or flash for a specific amount of time. LumiLightBand cameras offer three low-light modes: covert IR-only
mode, nighttime white-light deterrent LEDs, and motion-activated IR and LED dual-illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution.
Key Features:
- 8CH 8MP NVR with Dual SATA, 4TB HDD
- 6 × 8MP LumiLightBand Turret Cameras
- iMD Included
- 1.5U Form Factor, 2 SATA, Audio, Alarm Support
- 4K NVR With 4 TB HDD
- Eight (8) Channels With Two (2) SATA Ports
- HDMI and VGA Output
- PoE Plug-and-Play
- 8MP Turret Housing
- 2.8 mm Fixed Lens
- LumiLightBand
- Video Content Analytics: Line Crossing and Intrusion
- iMD
Certifications and Compliance:
- NDAA Compliant
- FCC
- ONVIF
| NVR Specifications - R32-16PA4 R3 Starter Series NVR, 4K 16 Channel, 16 PoE With 4 TB HDDR3 Starter Series NVR, 4K 16 Channel, 16 PoE With 4 TB HDD | |
| Video Input | 16 Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions (HDMI) | 4K (3840 × 2160), 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Output Resolutions (VGA) | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, MJPEG |
| Decoding Capability | Two (2) Channel: 8MP at 30 fps Eight (8) Channel: 1080p at 30 fps |
| Synchronous Playback | 1, 4, 8, 9, 16 views |
| Supported Analytics by Camera | Intelligent Motion Detection: 12 Channels Video Content Analytics (VCA): 8 Channels Face Detection: 4 Channels License Plate Recognition: 4 Channels |
| Smart Search | Search by Target Classification, Pictures by Channel, Time, and Event Type |
| SATA | Two (2) Ports |
| HDD | 4 TB Pre-Installed (Max. 10 TB per HDD) |
| Network | One (1) Port (RJ-45, 10/100/1000 Mbps) |
| PoE | 16 Ports (RJ-45, 10/100 Mbps) |
| USB | Front: One (1) USB 2.0 Rear: One (1) USB 2.0 |
| Alarm | Input: 4 Channels Output: 2 Channels |
| Audio | Input: One (1) RCA Output: One (1) RCA |
| Network Bandwidth | Incoming/Recording: 160 Mbps Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
| Power Supply | 100-240 V, 47-63 Hz, 3.5 A |
| Power Consumption | < 10 W (HDD Not Included) PoE: 115 W (Max. Output per Port: 25.5 W) |
| Weight | 2.6 kg (5.8 lb) Without HDD |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F), 10% to 93% RH |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 × 12.8 × 1.7 in.) |
| Certifications | FCC |
| Compliance | NDAA |

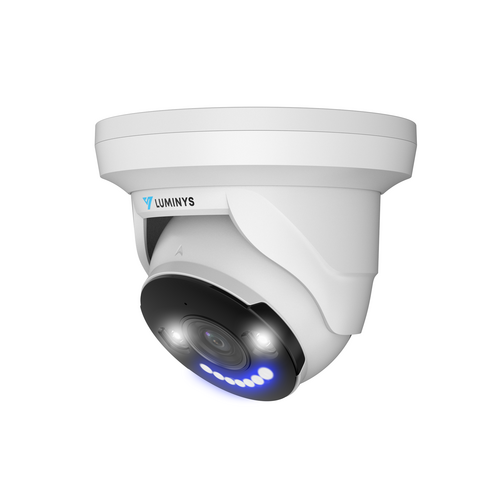

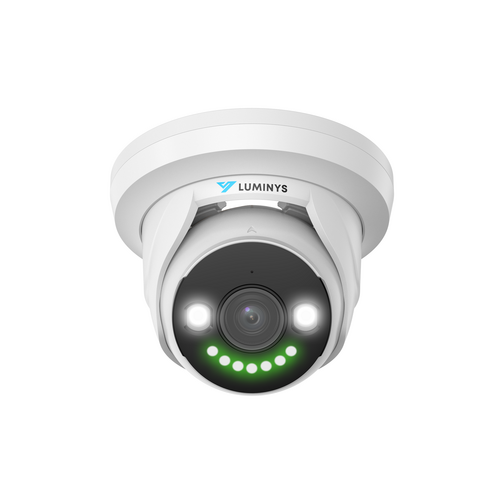

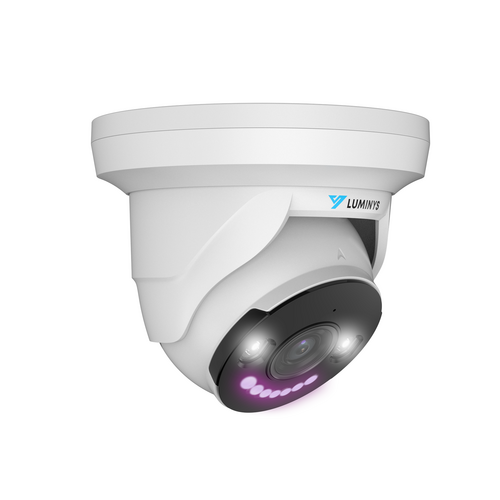

| Camera Specifications - N3T-8BA2 8MP Network LumiLightBand Turret Camera (2.8 mm)8MP Network LumiLightBand Turret Camera (2.8 mm | |
| Camera | Luminys Series N3 Series (Entry Level) |
| Image Sensor | 1/2.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.008 Lux at F1.6 (30 IRE) B/W: 0.0008 Lux at F1.6 (30 IRE) 0 Lux with IR On |
| Number of Illuminators | 1 IR LED, 2 White-Light LEDs |
| Supports | LumiLightBand |
| Illuminator Control | Automatic, Manual |
| Max Illumination Distance | IR/Warm-Light: Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Auto/Manual; 1/3 s to 1/100,000 s |
| Installation Angle | Pan/Rotation: 0°–360° Tilt: 0°–78° |
| S/N Ratio | > 50 dB |
| Lens Type | Fixed |
| Iris Type | Fixed |
| Focal Length | 2.8 mm |
| Max Aperture | F1.6 |
| Field of View | Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Close Focus Range | 1.5 m (4.9 ft) |
| DORI Distance | Detect: 58.2 m (190.9 ft) Observe: 23.3 m (76.4 ft) Recognize: 11.6 m (38.1 ft) Identify: 5.8 m (19.0 ft) |
| Compression | H.265+, H.265, H.264+, H.264, MJPEG (Sub Stream only) |
| Stream Capability | 2 Streams |
| Resolutions | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 5MP (2880 × 1620), 4MP (2688 × 1520), 3.6MP (2560 × 1440), 3MP (2048 × 1536), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Max Frame Rate | Main: 3840 × 2160 at 20 fps Sub: D1 at 20 fps |
| Video Bit Rate | H.264: 32–8192 kbps H.265: 12–8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Auto (ICR), Color, B/W |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP and lower) |
| Mirroring | Supported |
| Region of Interest | 4 Zones |
| Privacy Masking | 4 Zones |
| Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Vehicles and Humans (with Alarms) |
| Audio Compression | PCM, G.711a, G.711Mu |
| Audio Input | Built-in Microphone |
| Alarm Events | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Audio Detection, iMD |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTMP, FTP, SFTP, NAS, DHCP, DNS, DDNS, QoS, UPnP, NTP, NFS, PPPoE, SMTP, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK |
| Browser Support | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, NAS, MicroSD (Max 256 GB) |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: 8.4 W (Max), 3.2 W (Normal) PoE: 9.8 W (Max), 4.3 W (Normal) |
| Net Weight | 0.5 kg (1.1 lb) |
| Gross Weight | 0.7 kg (1.4 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F), < 95% RH |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protection Rating | IP67 |
| Dimensions (L × W × H) | Φ 122.0 mm × 104.7 mm (Φ 4.8 in. × 4.1 in.) |
| Material | Metal |
| Certifications | FCC, IC |
| Compliance | NDAA |
